11.6 Installing/Adjusting Non-Locking Cantilever Arms
Installing Non-Locking Cantilever Arms
1. Remove the locknut and washer from the lower hex bolt installed
on the non-locking cantilever arm.
2. Slide hex bolt of the cantilever arm assembly into the desired back
cane mounting hole.
3. Secure the cantilever arm to the wheelchair with a washer and
locknut.
4. Adjust the angle of the cantilever arm, if necessary. Refer to
Adjusting Non-Locking Cantilever Arm Angle
on page 98.

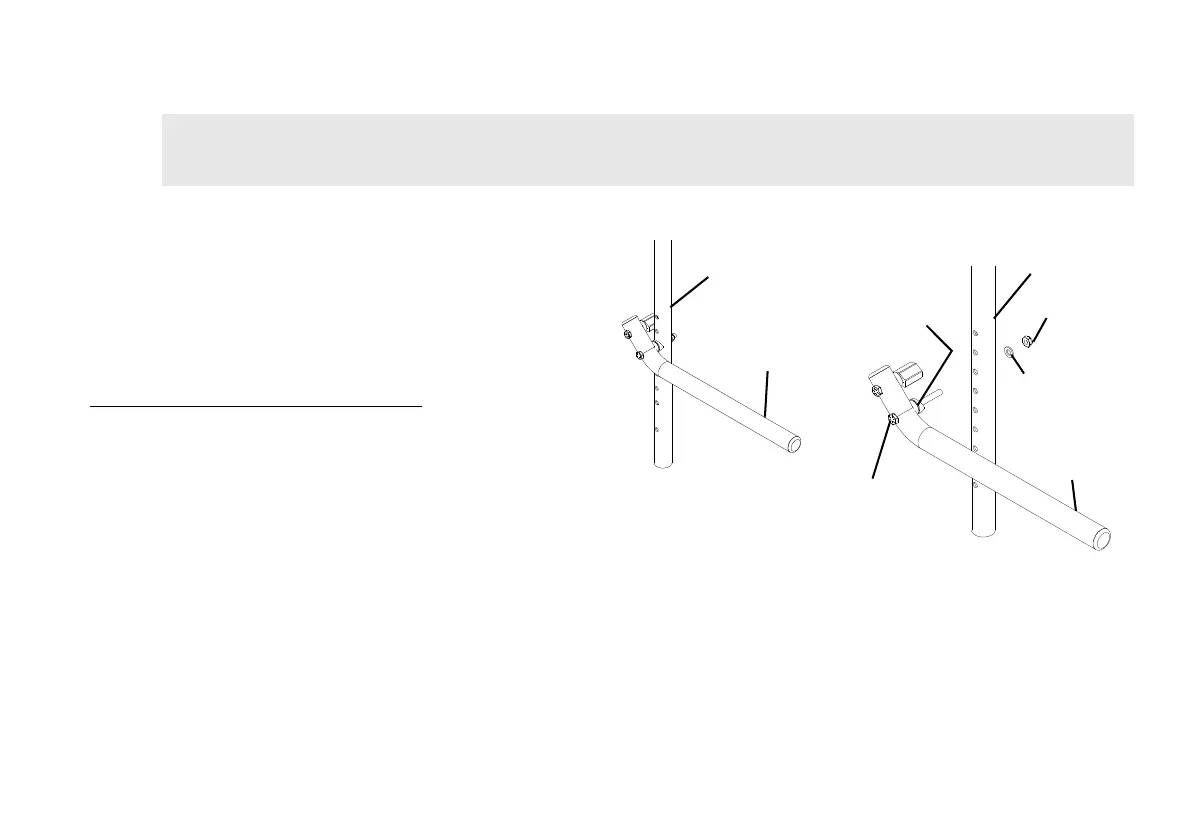

FIGURE9 Installing Non-Locking Cantilever Arms
WARNING
DO NOT use lap trays with non-locking cantilever arms.
Coved Washers
and Spacer
Locknut
Washer
Lower Hex
Bolt
Cantilever
Arm
Back Cane
Back Cane
Cantilever Arm
