Invertek Drives OPTIDRIVE E3 - Inrush Circuit Test (480 V & 240 V)

2016
SERVICE MANUAL ODE-3 FRAME SIZE 3
Page 12 of 23
Inrush circuit test (480V & 240V)

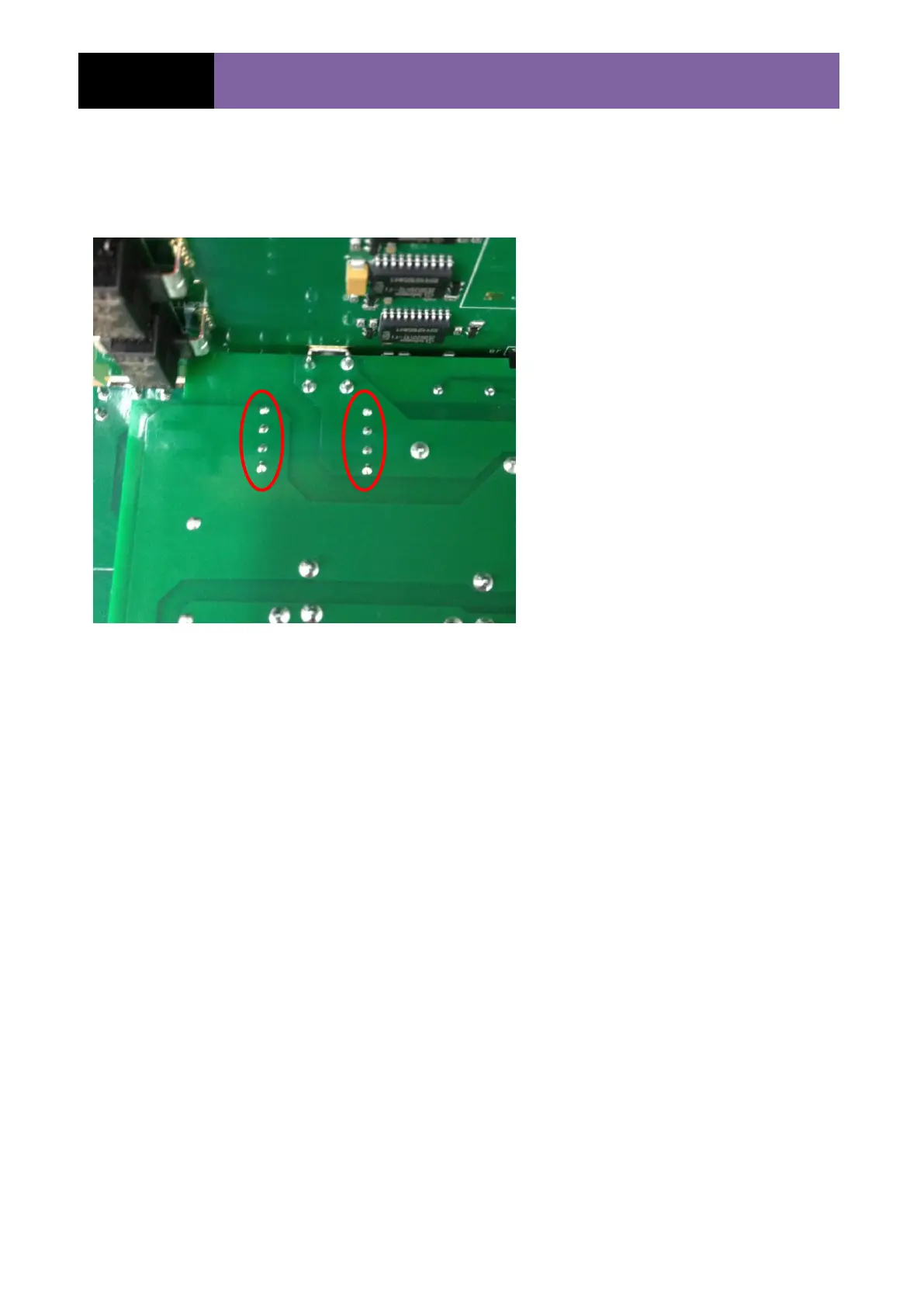

Set your multimeter to read Ohms and measure across the Inrush Resistors highlighted
above. Note that each resistor is 100 Ohms and are connected in parallel hence a
reading of 33R +/- 15% should be measured.
