Invertek Drives OPTIDRIVE E3 Service Manual

2016
SERVICE MANUAL ODE-3 FRAME SIZE 3
Page 5 of 23
Output Terminal checks:
 Set your multimeter to read Ohms
 Place the multimeter leads on the following terminals:
U to V 400 K +/- 10% and rising
V to W 400 K +/- 10% and rising
U to W 400 K +/- 10% and rising
Ensure measurements is balanced/same value across each phase

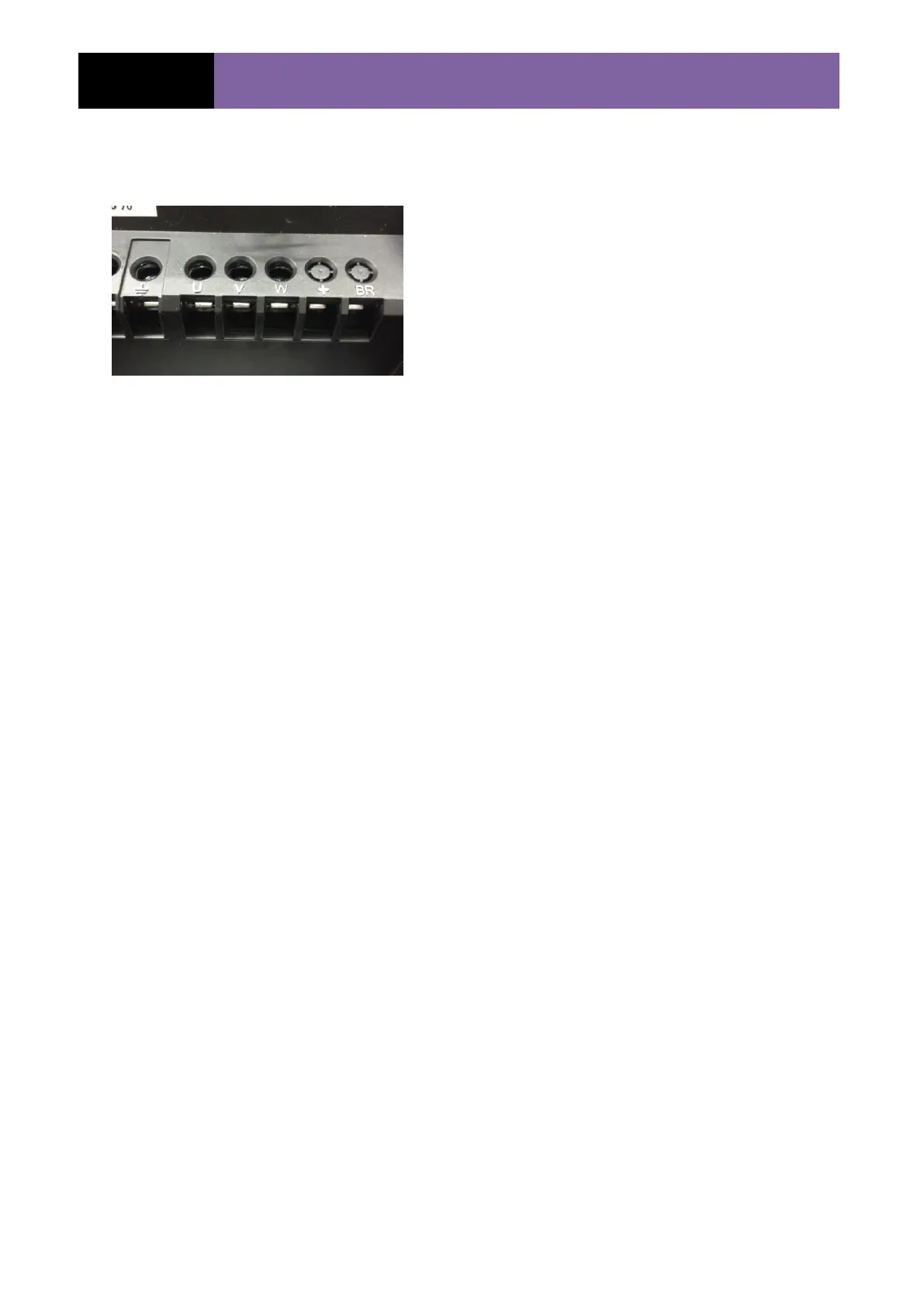

IP66 used control terminal used
as an example
