Invertek Optidrive E3 Series User Manual

Easy Start Guide
6. How to set a Parameter value
Page 6
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©

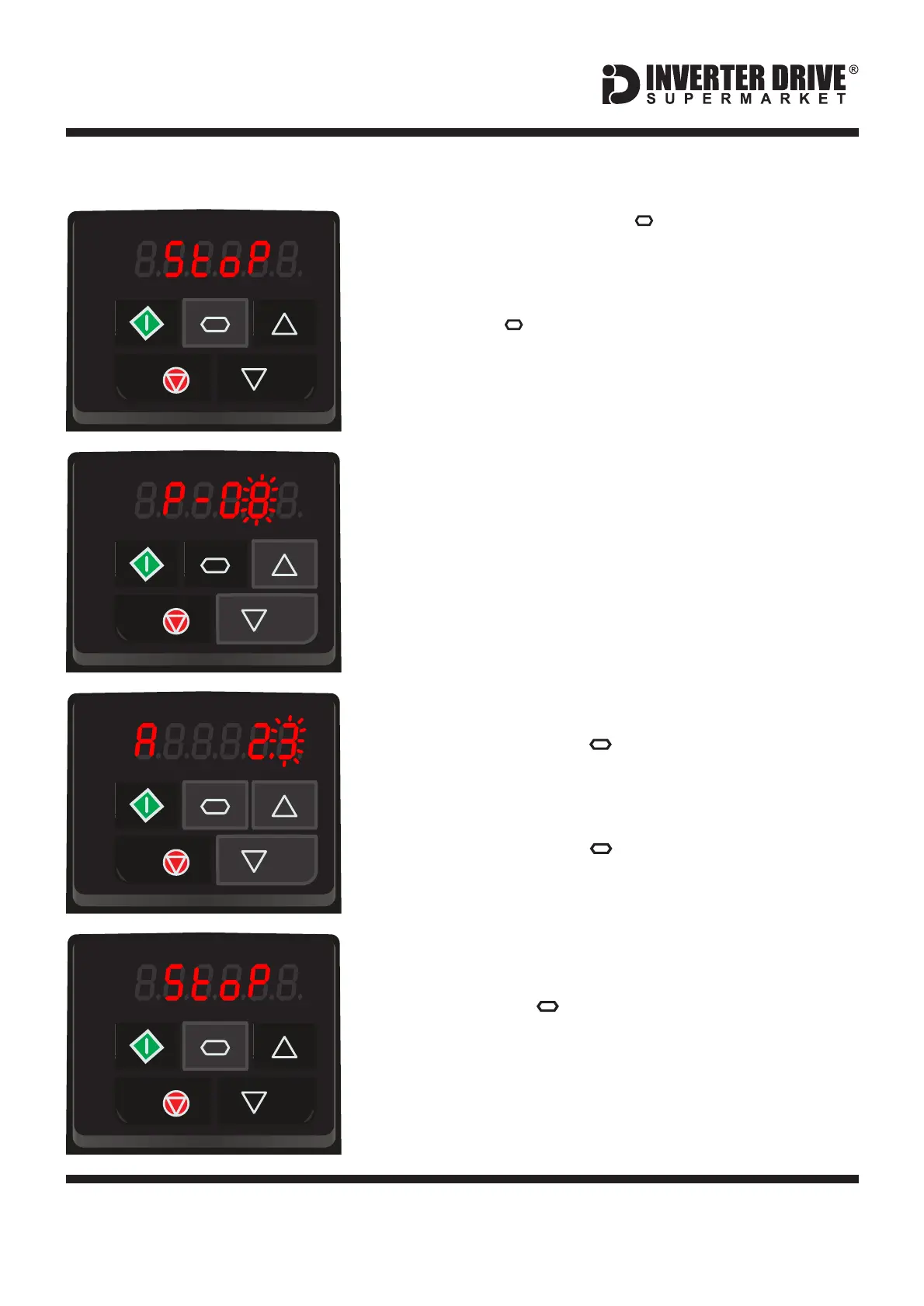

When powered up the Optidrive default display is “Stop”.
6.1 Press the navigation key to access parameters.
To access the parameter list press and hold the
navigation key for approx. 2 seconds.
P-01 or the last viewed parameter will be displayed with
the last digit flashing.
6.2 Select the required parameter.
Use the up and down arrow keys to select the required
parameter. In this example, select P-08 (Motor Rated
Current).
Note: By default, parameters P-01 to P-14 will be
visible. To enable “extended” parameters (P-15 to P-
50) set P-14 to 101. For “advanced” parameters (P-15
to P-60) set P-14 to 201.
Press the navigation key to show the parameter value.
6.3 Change the parameter value and save.
Use the up and down arrows keys to change the value as
required.
Press the navigation key to save the changes and
return to the parameter list.
Note: The parameter list or value will automatically
return to the main operating display after approx. 20
seconds of inactivity. Any unsaved changes will be
lost.
Once all parameter changes are complete press and hold
the navigation key for approx. 2 seconds to return to
the main operating display.
6.4 Return to the main operating display.
Invertek Optidrive E3 Inverter (IP20, 3ph output)

Invertek Optidrive E3 Series Specifications

General

Output Voltage	0 to input voltage
Protection Rating	IP20
Altitude	Up to 1000m without derating
Output Frequency	0-500 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Input Voltage	200-240V, 380-480V
Control Method	Sensorless Vector Control
Operating Temperature	-10°C to +50°C
Humidity	95% RH (non-condensing)
Protection Features	Over voltage, under voltage, over current, over temperature, short circuit, earth fault
Communication Options	Modbus RTU
Braking	Dynamic Braking Transistor standard
