INVT GD300L-1R5G-S2 User Manual

Goodrive300-LIFT series inverter Commissioning guidelines
-94-
When distance control P21.00 is set to 0×1, the distance for decelerating from high speed to 0 is
P21.01, and that for decelerating from medium or low speed to 0 is P21.02, as shown in Figure 7-13.
Speed switch point
Command
cancelling point
v
t

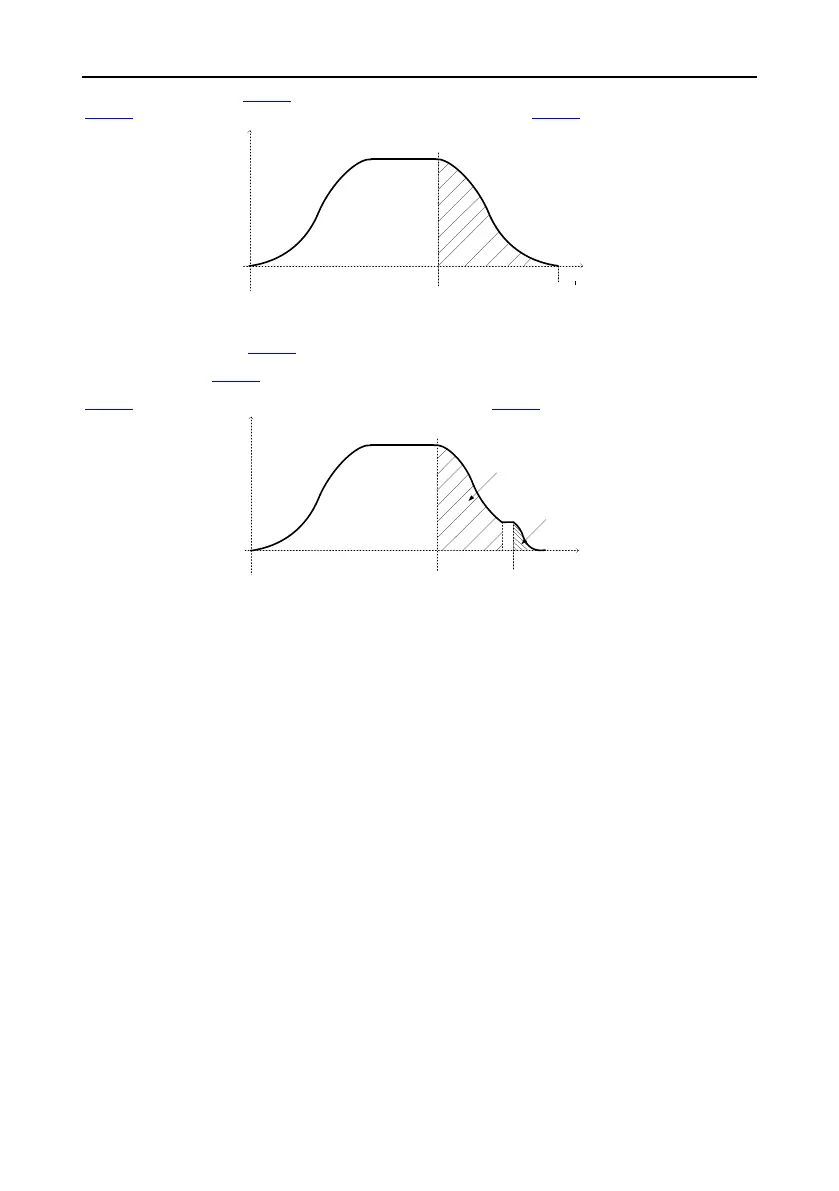

Figure 7-13 Curve of deceleration without creeping
When distance control P21.00 is set to 0×11, the distance for decelerating from high speed to
creeping speed is P21.01, that for decelerating from medium or lower speed to creeping speed is
P21.02, and that for decelerating from creeping speed to 0 is P21.03, as shown in Figure 7-14.
Speed
switch point
Command
cancelling point
v
t
Distance for
decelerating from
high speed to
creeping speed
Distance for
decelerating from
creeping speed to 0
Figure 7-14 Curve of deceleration with creeping
