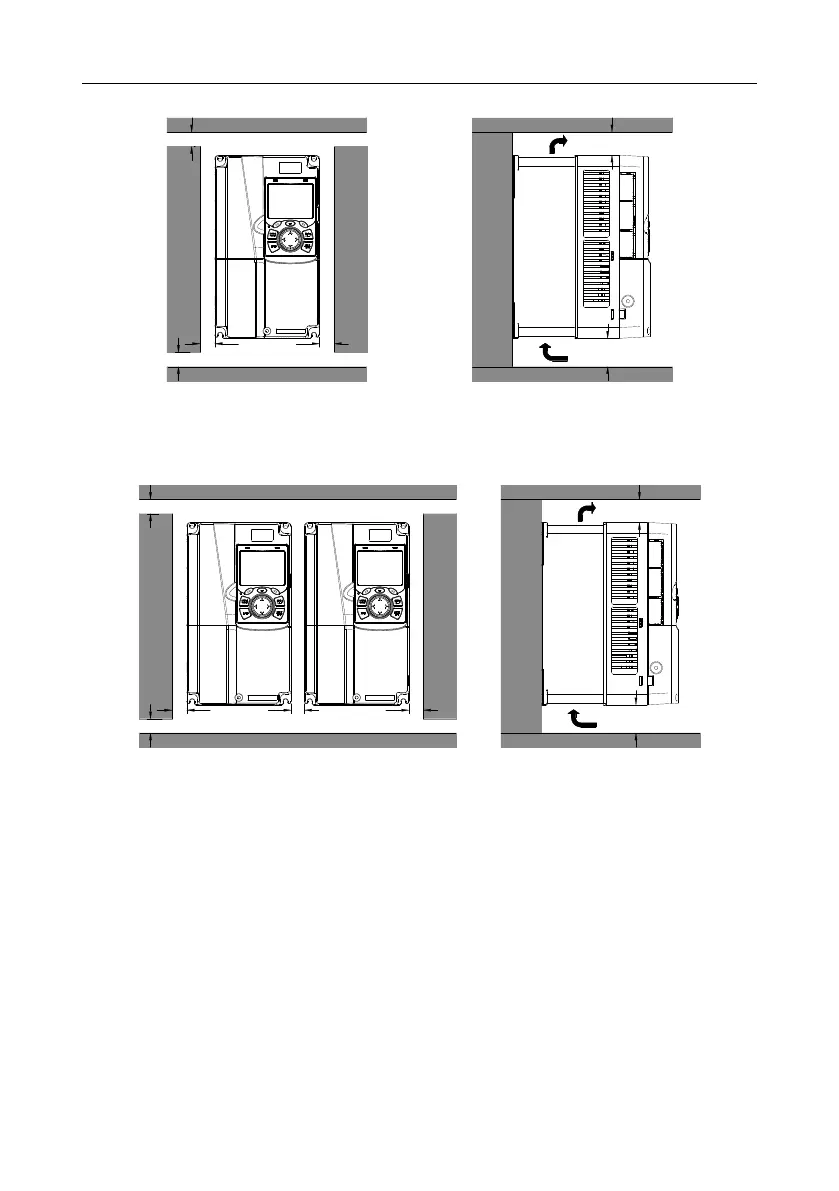

4.2.4 Single-unit installation
Cold air
Hot air
C
C
A
B
A
B
Fig 4.3 Single-unit installation
Note: The min. dimension of B and C is 100mm.
4.2.5 Multiple-unit installation
Hot air
Cold air
C
C
A
A
B B
D
Fig 4.4 Parallel installation
Note:
1. When users install inverters in different sizes, align the top of each inverter before installation for
the convenience of future maintenance.
2. The min. dimension of B, D and C is 100mm.
