Goodrive350 series high-performance multi-function inverter Appendix C
-306-
Table C.3 Floor installation dimensions of 380 V inverters (unit: mm)
Inverter
specification
W1
W2
W3
W4
H1
H2
D1
D2
Installation
hole
diameter
Fixing
screw
220kW–315kW
750
230
714
680
1410
1390
380
150
13\12
M12/M10
350kW–500kW
620
230
572
-
1700
1678
560
240
22\12
M20/M10
C.5 Dimensions of Inverters of AC 3PH 520V (-15%)–690V (+10%)
C.5.1 Wall-mounting dimensions
W1
D1
W2
H1 H2

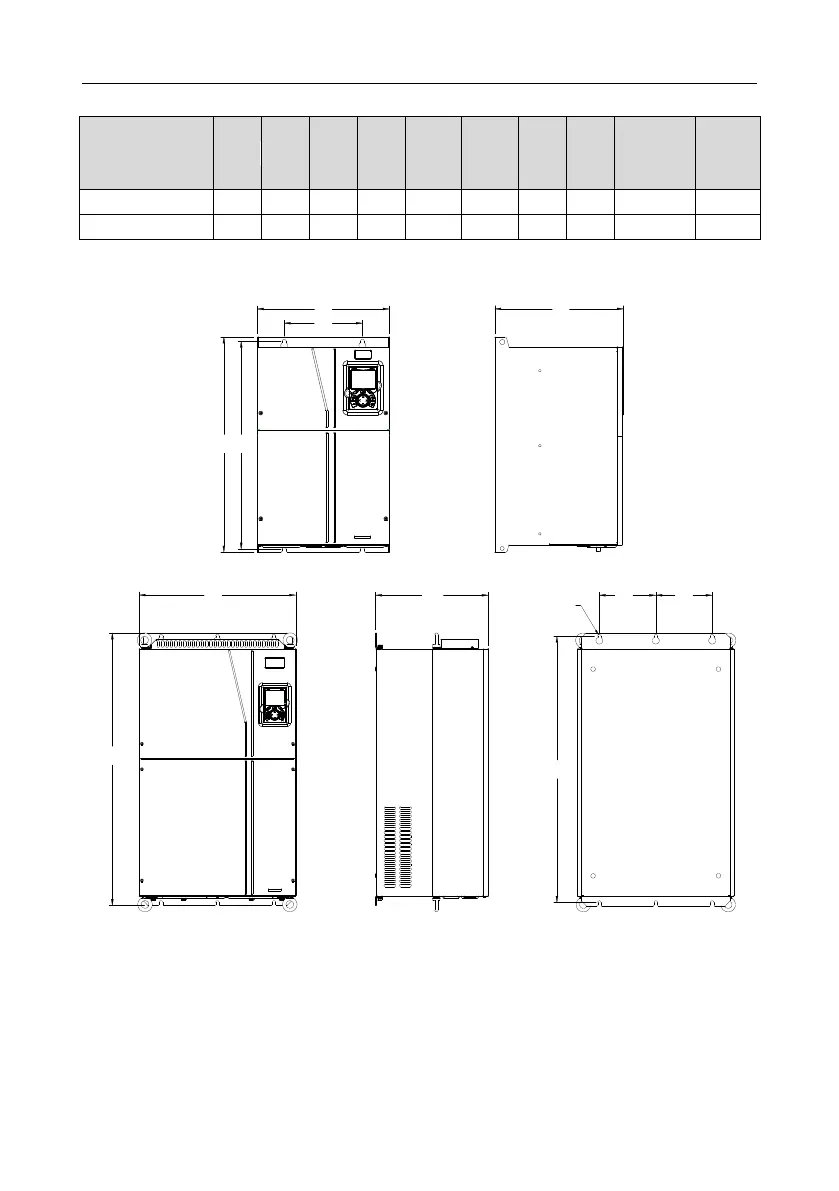

Fig C.14 Wall-mounting diagram of inverters of 660 V, 22 to 132 kW
W1
H1
D1
W2 W2
6- ø11.0
H2
Fig C.15 Wall-mounting diagram of inverters of 660 V, 160 to 220 kW
