Goodrive350 series high-performance multi-function inverter Appendix D
-324-

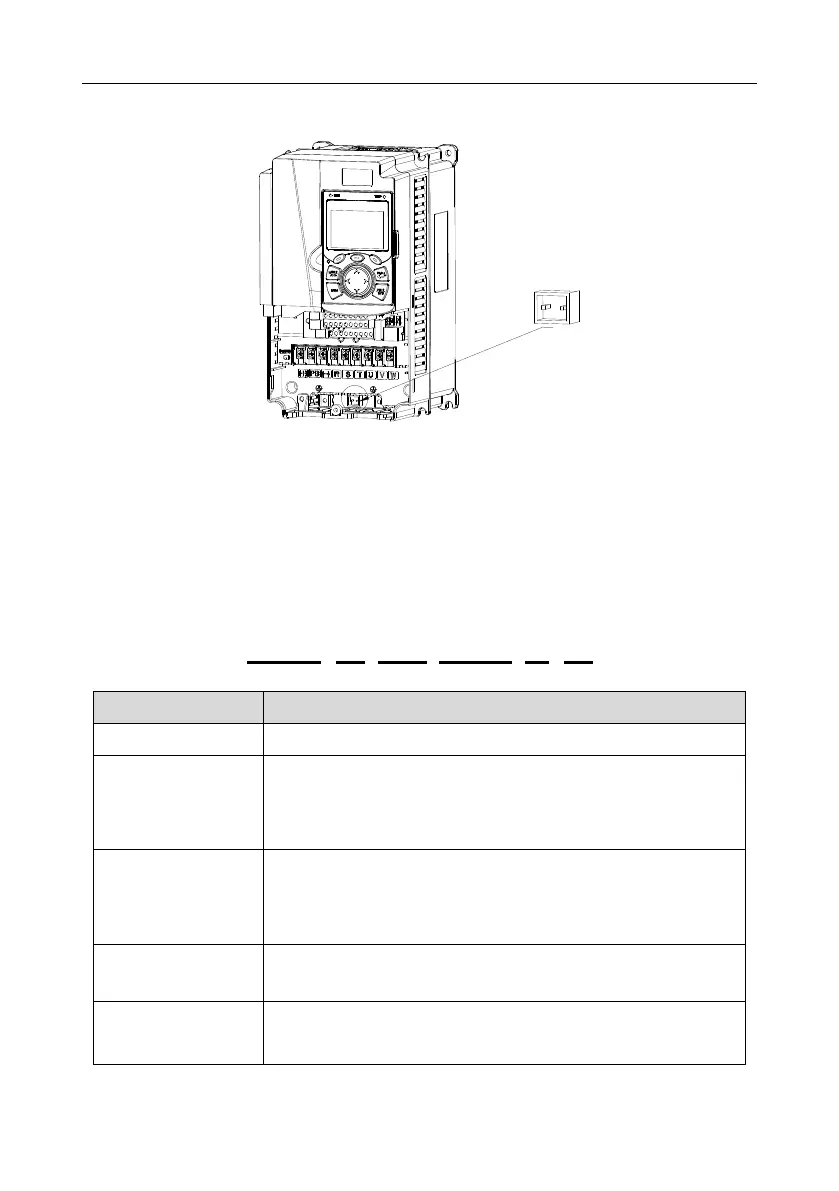

2. If leakage protection occurs during configuration of a residual-current circuit breaker, disconnect
J10.
Note: Do not connect C3 filters in IT power systems.
Interference filters on the input side can reduce the interference of inverters (when used) on the
surrounding devices.
Noise filters on the output side can decrease the radio noise caused by the cables between inverters
and motors and the leakage current of conducting wires.
INVT provides some of the filters for users to choose.
D.7.1 Filter model description
FLT-P 04 045 L-B
A B C D E F
FLT: Name of the inverter filter series
Filter type
P: Power input filter
L: Output filter
Voltage class
04: AC 3PH 380V (-15%)–440V (+10%)
06: AC 3PH 520V (-15%)–690V (+10%)
3-digit code indicating the rated current. For example, 015 indicates
15 A.
Filter performance
L: General
