Goodrive350 series high-performance multi-function inverter Chapter 5
-43-
5.4.2 List edit
The monitoring items displayed in the parameter list of stop state can be added by users as needed
(through the menu of the function code in state check group), and the list can also be edited by users
eg "shift up", "shift down" and "delete from the list". The edit function is shown in the interface below.
01: GD350
16:02:35
HomepageReturn
Select
Shift up
Shift down
Delete from the list
16:02:35
Forward
Local Ready
HomepageReturn
Select
Parameter displayed in stop state
Parameter displayed in running state
01: GD350
16:02:35
EditReturn
Confirm
P17.00Set frequency
P17.11DC bus voltage
P17.12Digital input terminal state
P17.13Digital output terminal state
P17.23PID reference value
P17.24PID feedback value
01: GD350
Forward
Local Ready
Forward
Local Ready

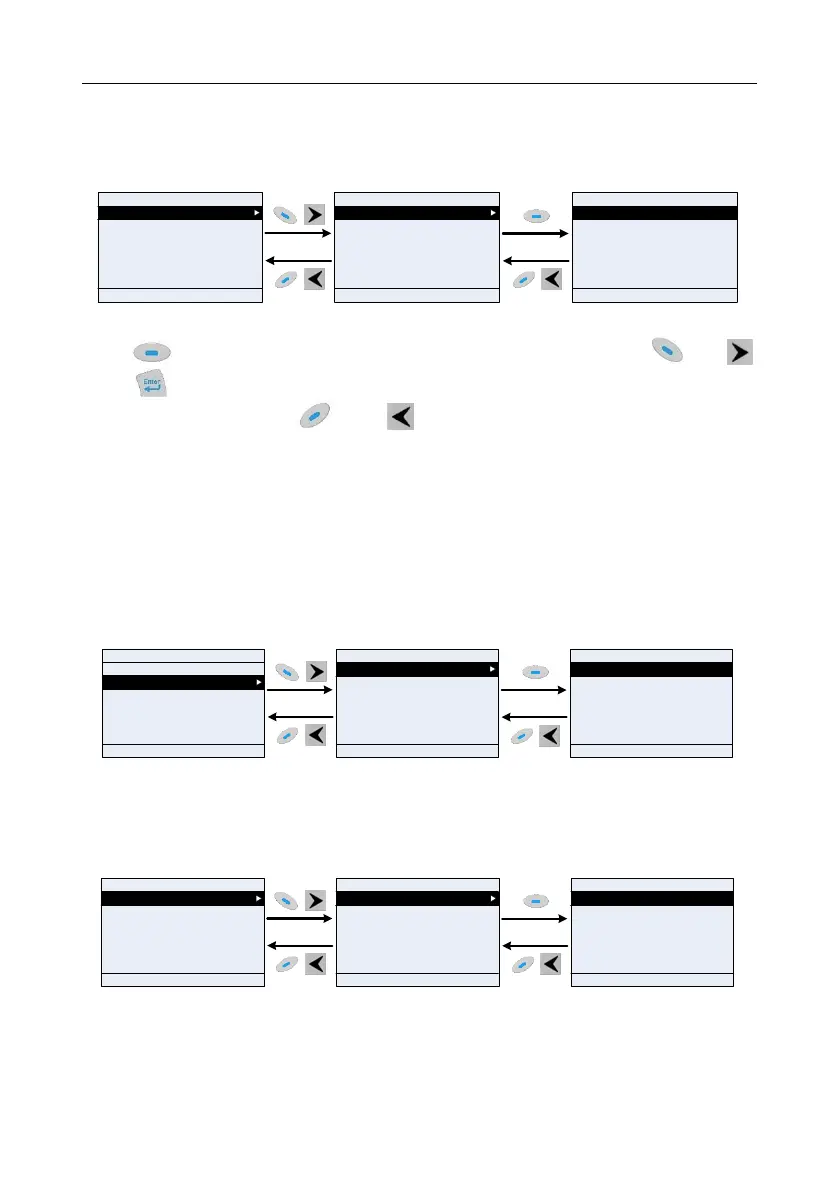

Fig 5.8 List edit diagram 1
Press key to enter edit interface, select the operation needed, and press key,
key or key to confirm the edit operation and return to the previous menu (parameter list), the
returned list is the list edited. If key or key is pressed in edit interface wihouth selecting
edit operation, it will return to the previous menu (parameter list remain unchanged).
Note: For the parameter objects in the list header, shift-up operation will be invalid, and the
same principle can be applied to the parameter objects in the list footer; after deleting a
certain parameter, the parameter objects under it will be shifted up automatically.
The monitoring items displayed in the parameter list of running state can be added by users as
needed (through the menu of the function code in state check group), and the list can also be edited
by users eg "shift up", "shift down" and "delete from the list". The edit function is shown in the
interface below.
01: GD350
16:02:35
Shift up
Shift down
Delete from the list
16:02:35
EditReturn
Confirm
P17.01Output frequency
P17.00Set frequency
P17.11DC bus voltage
P17.03Output voltage
P17.04Output current
P17.05Motor speed
01: GD350
01: GD350
16:02:35
Parameter displayed in stop state
Parameter displayed in running state
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
HomepageReturn
Select
HomepageReturn
Select
Fig 5.9 List edit diagram 2
The parameter list of common parameter setup can be added, deleted or adjusted by users as
needed, including delete, shift-up and shift-down; the addition function can be set in a certain function
code of a function group. The edit function is shown in the figure below.
01: GD350
16:02:35
Forward
Local Ready
EditReturn
Select
P00.10Keypad setting frequency
P00.00Speed control mode
P00.11Acceleration time 1
P00.12Deceleration time 1
P00.01Running command channel
P00.13Running direction selection
01: GD350
16:02:35
Forward
Local Ready
HomepageReturn
Select
Common parameter
setup
Parameter setup
State monitoring/fault
record
Motor parameter
autotuning
Parameter backup
System setup
01: GD350
16:02:35
Forward
Local Ready
HomepageReturn
Select
Shift up
Shift down
Delete from the list
Fig 5.10 List edit diagram 3
5.4.3 Add parameters to the parameter list displayed in stop/running state
In the fourth-level menu of "State monitoring", the parameters in the list can be added to the
