INVT Goodrive350 Series User Manual

Goodrive350 series high-performance multi-function inverter Chapter 5
-107-
Function
code
Name
Detailed parameter description
Default
value
frequency reaches upper/lower limit
Tens:
0: The same with the main reference
direction
1: Contrary to the main reference
direction
Hundreds:
0: Limit as per the max. frequency
1: Limit as per A frequency
Thousands:
0: A+B frequency, acceleration
/deceleration of main reference A
frequency source buffering is invalid
1: A+B frequency, acceleration/
deceleration of main reference A
frequency source buffering is valid,
acceleration/deceleration is determined
by P08.04 (acceleration time 4).
P17.00
Set frequency
0.00Hz–P00.03 (max. output frequency)
0.00Hz
P17.23
PID reference value
-100.0–100.0%
0.0%
P17.24
PID feedback value
-100.0–100.0%
0.0%

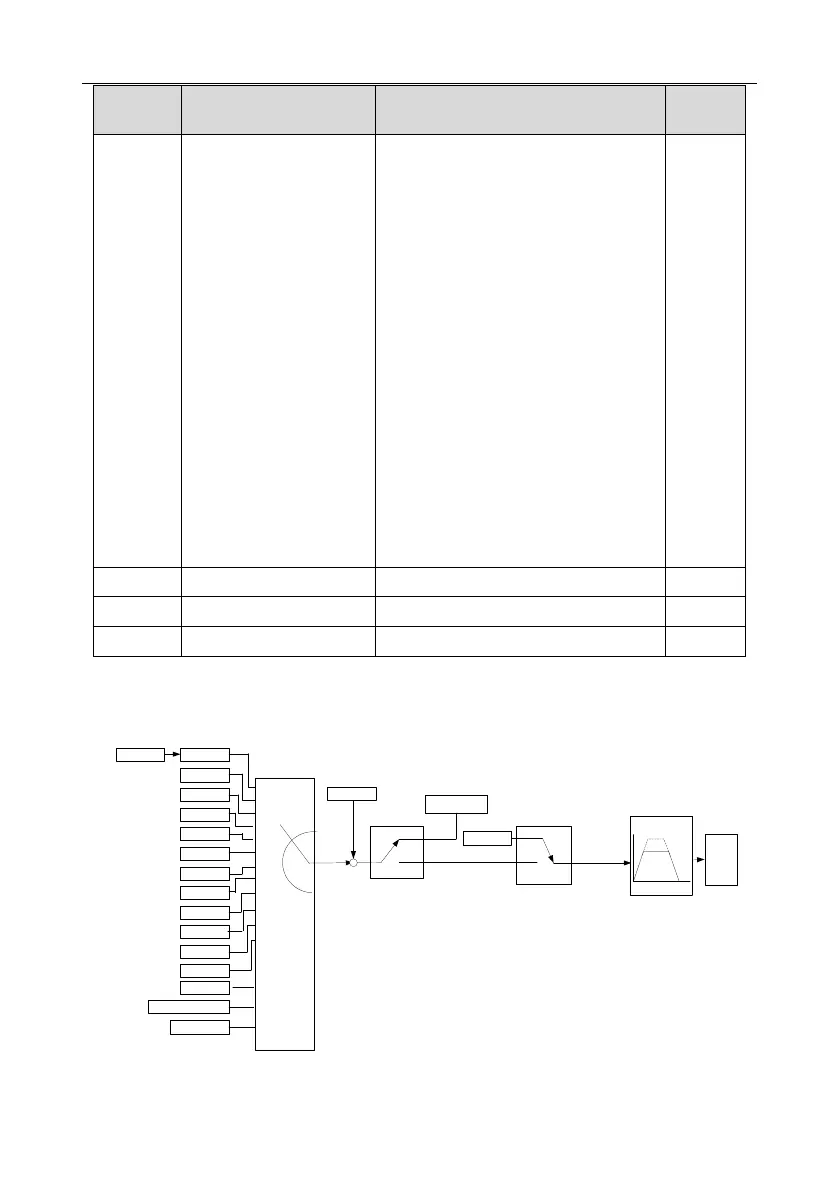

5.5.16 Run at wobbling frequency
Wobbling frequency is mainly applied in cases where transverse movement and winding functions are
needed like textile and chemical fiber industries. The typical working process is shown as below.
0
1
2
3
4
5
6
7
8
9
10
11
Keypad
AI1
PROFIBUS
MODBUS
PID
Multi-step speed
Simple PLC
HDIA
AI3
AI2
Ethernet
AB pulse string
P00.06
(A frequency command
selection)
Frequency set by
keypad
P00.10
P08.05
Amplitude of wobbling
frequency
*
*
Maintain current
frequency
Set frequency
P00.11 acceleration time 1
P00.12 deceleration time 1
Wobbling
frequency
output
Terminal function 26
wobbling frequency
pause
Terminal function 27
Wobbling frequency reset
Valid
Invalid
Valid
Invalid
HDIB
EtherCat/Profinet
PLC programmable
card
12
13
14
