SV-DA200 series AC servo drive Installation instruction
-21-

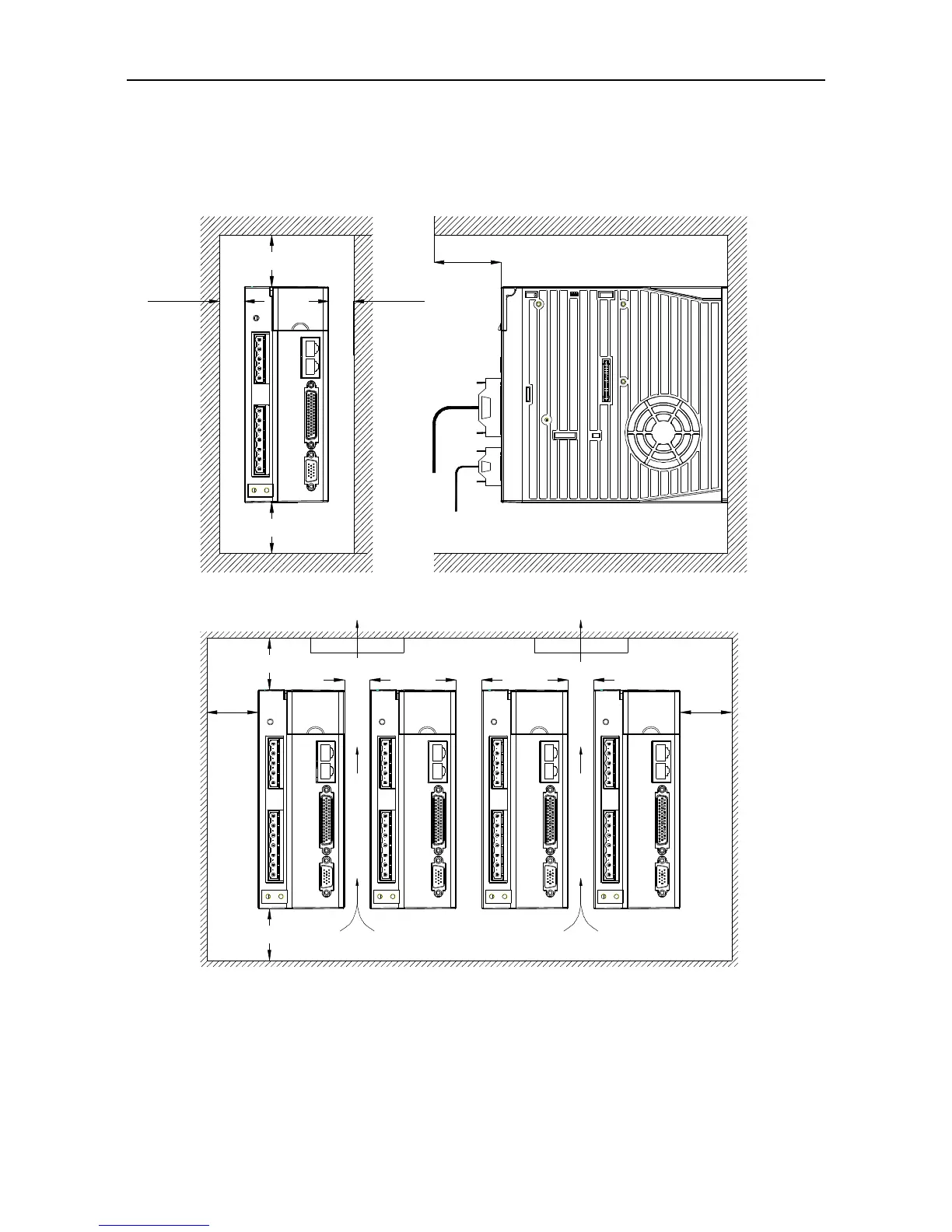

2.2.2 Installation space and direction
Please install the servo drive vertically and keep enough installation space for good ventilation. Install
fans if necessary to ensure the temperature inside the control cabinet is lower than 45.
1) Single drive installation
>100mm
>100mm
>20mm >20mm
>40mm
Up
Down
2) Multiple drives installation
>20mm
>20mm
Up
Down
>20mm
FAN FAN
>20mm
>20mm
>20mm >20mm
