SV-DA200 series AC servo drive Wiring instruction
-47-

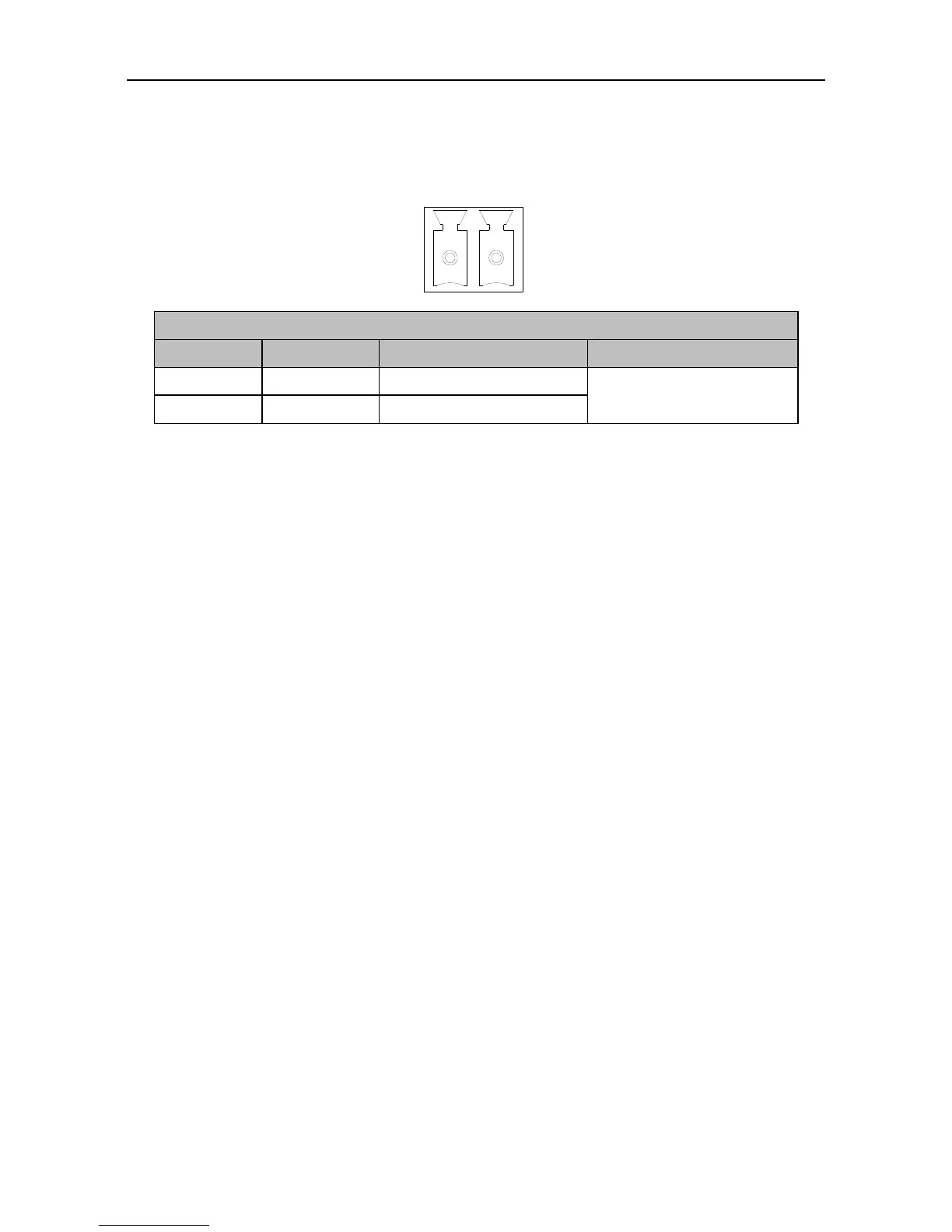

3.10 Wiring of motor temperature resistor-CN7 terminal in medium
power range (7.5kW55kW)
1
2
Function of CN7 port
Pin no.
Name
Function
Remark
1
T1
KTY84-1
Support KTY84 only
2
T2
KTY84-2
Note: The motor temperature sampling function is turned off by default. Set P4.45 [Temperature
protection threshold of medium-power motor] to a non-zero value. The value of current temperature
can be read via R0.60 [Temperature of medium-power motor].
