- 29 -

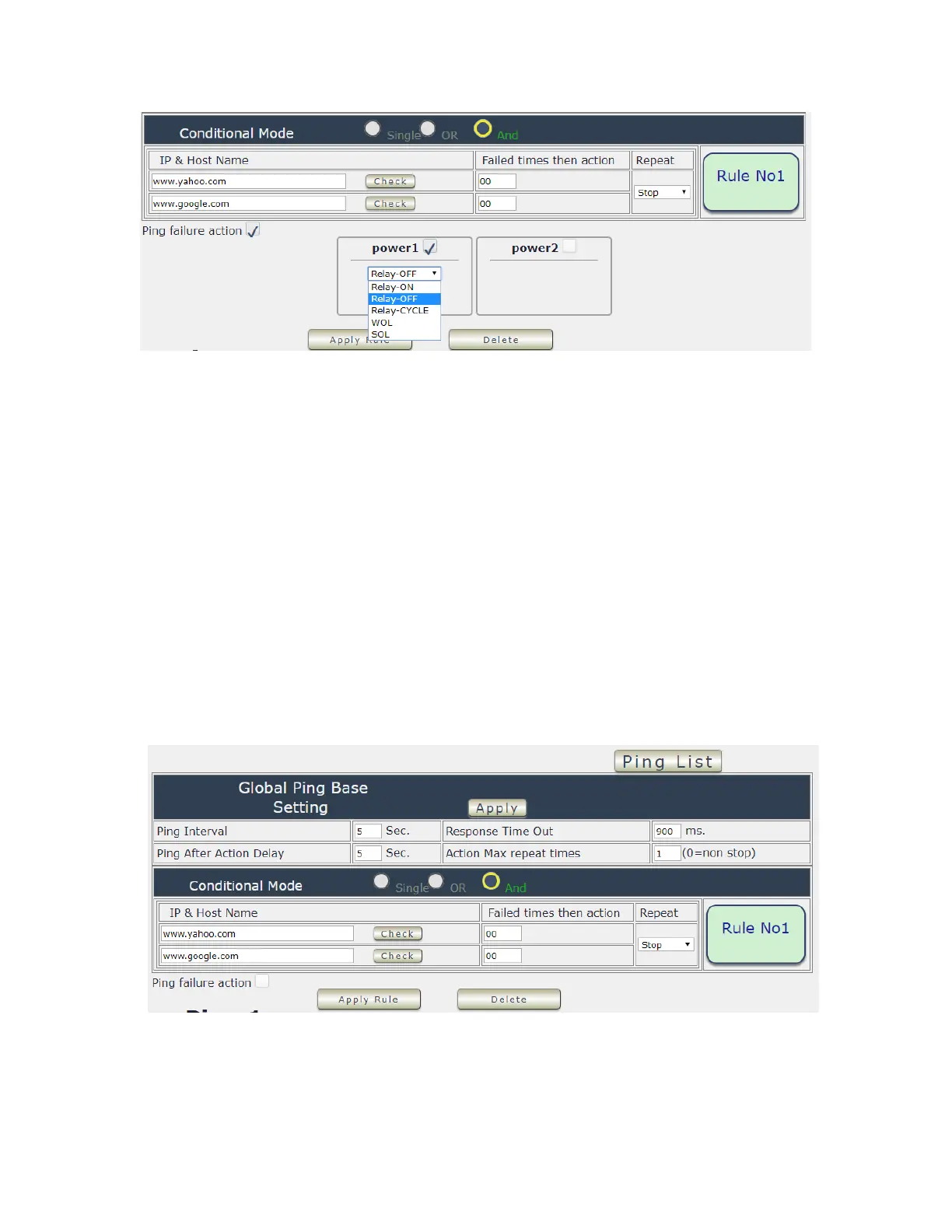

⚫ Conditional Mode :
User can select the action activate by one / two IP Host failure or either one fail
- Single : Execute Action by one IP Host failure .
- OR : Execute Action by either one IP Host failure as setting 2 pcs IP Host
- And : Execute Action by both IP Host failure as setting 2 pcs IP Host
Single : 9828 will Ping one IP address. As the IP fail times reach to the setting times .
Action (ON/OFF/RESET) will be activated .
OR : 9828 will Ping 2 IP address. Either one IP fail times reach to the setting times.
Action (ON/OFF/RESET) will be activated .
AND : 9828 will Ping 2 IP address. Both IP fail reach to the setting times.
Action (ON/OFF/RESET) will be activated.
⚫ IP & Host Name : Input the IP Address ( ex: 122.116.123.138) or Host - web address
( ex: www.google.com) user would like to Ping.
User can use the “ ping test “ bottom to check the address valid or not
