On the rear panel, MFIM50A has:
Eight (8) RJ-45 female connectors; for 4 FXO ports, 2 FXS ports, BGM/MOH and External
Page outputs, Control Relay input and Alarm Input,
Ground Lug,
Power jack for the AC/DC adapter; see section 2.1.3.
LIK-MFIM50B
MFIM50B provides four (4) ISDN Basic Rate Interface ports (2B+D) which support the ‘T’ interface
as described by ETSI 300.012 based on the ITU-T Recommendations I.430, and two (2) FXS
interfaces which allow standard analog Single Line Telephone (SLT) devices access to BRI Lines,
other stations, and most features of the system through the use of “dial codes”.
ISDN-BRI interfaces can be installed in the TE (Terminal Equipment) mode
FXS interfaces provide 48 volt DC feed circuit, pulse, DTMF dial signal detection, and T.38
protocol for Fax over IP... A ring generator and message wait source are integrated. FXS allows
Single Line Telephones to be connected up to 4 Kilometers (13,000 feet) from the gateway using
24 AWG wire.
MFIM50B have a front panel as shown in Figure 2.1.1-2, which
include:
Power status LED,
Reset Switch,
Four (4)-position DIP-switch for mode selections,
Ten (10) LEDs,
Four (4) red LEDs display the operating status of the
main processor,
One (1)red LED displays the operating status of VSF,
Four (4) green LEDs, one for status of each BRI line,
One (1)red LED displays the operating status of FXS
ports,
One (1) “LAN” RJ-45 Female LAN connector with Speed and
Link/Activity LEDs,
One (1) DB-9 RS-232 connector and one (1) USB host port,
RCA jack for one music (audio) source -BGM-.
On the rear panel, each MFIM50a has:
Eight (8) RJ-45 female connectors; for 4 BRI ports, 2 FXS
ports, BGM/MOH and External Page outputs, Control Relay
input and Alarm Input,
Ground Lug,
Power jack for the AC/DC adapter; see section 2.1.3.

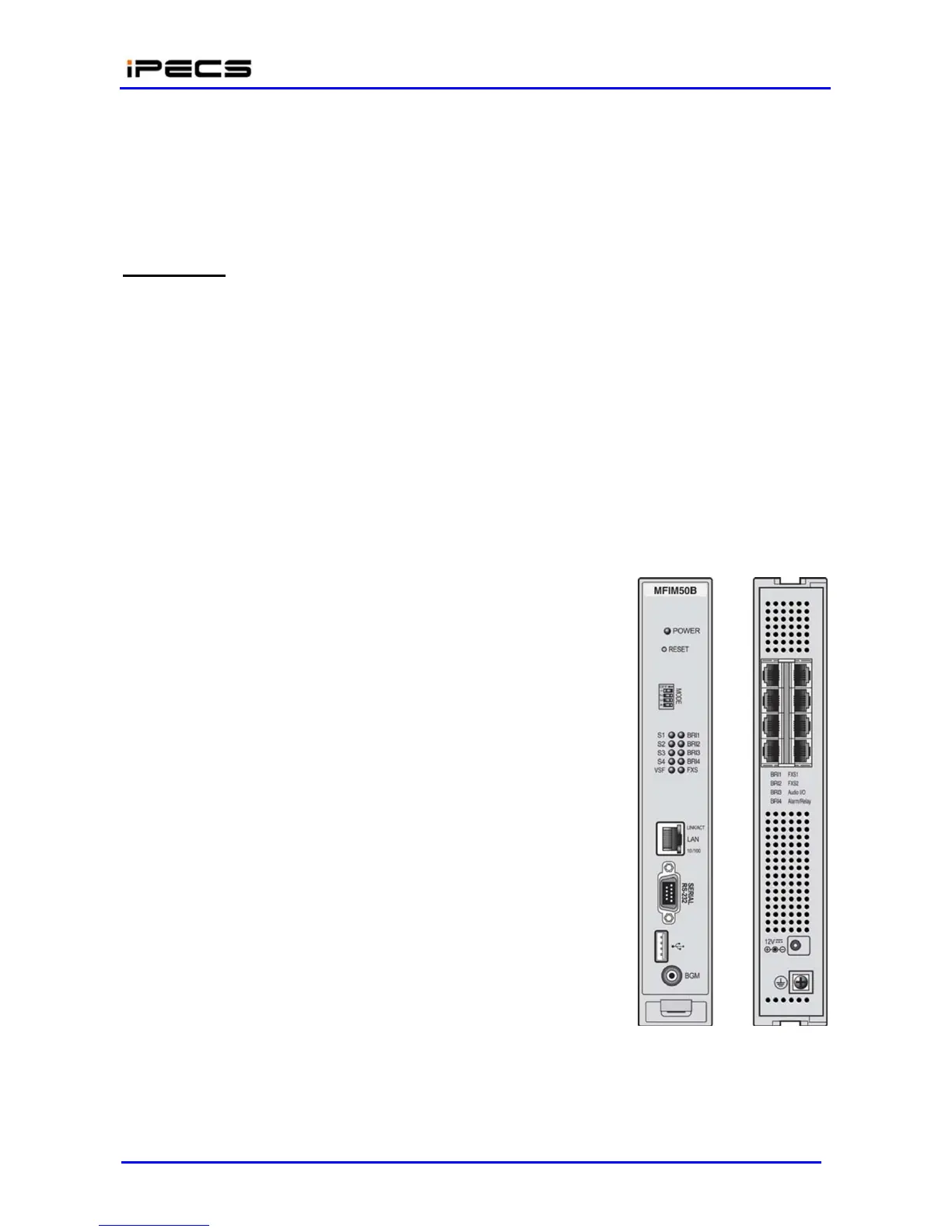

Figure 2.1.1-2 LIK-MFIM50B Front & Rear Panel
