2.2.3 AC/DC Adapter for LIP-Phones & Console
When an LIP-7000 or LIP-8000 series terminal is to be powered from local AC (not provided power
over the LAN), a separate AC/DC adapter, Figure 2.2.3-1, must be used for power. The adapter is
supplied with a two (2) meter (six (6) foot) AC cord terminated with the nationally relevant AC blade
type. The adapter supports AC input power systems with rated voltage range of 100-240 VAC @
50/60 Hz. The adapter provides 48 VDC at 0.3 amps. The DC output connector is cabled to the
adapter with a two (2) meter (six (6) foot) cable.

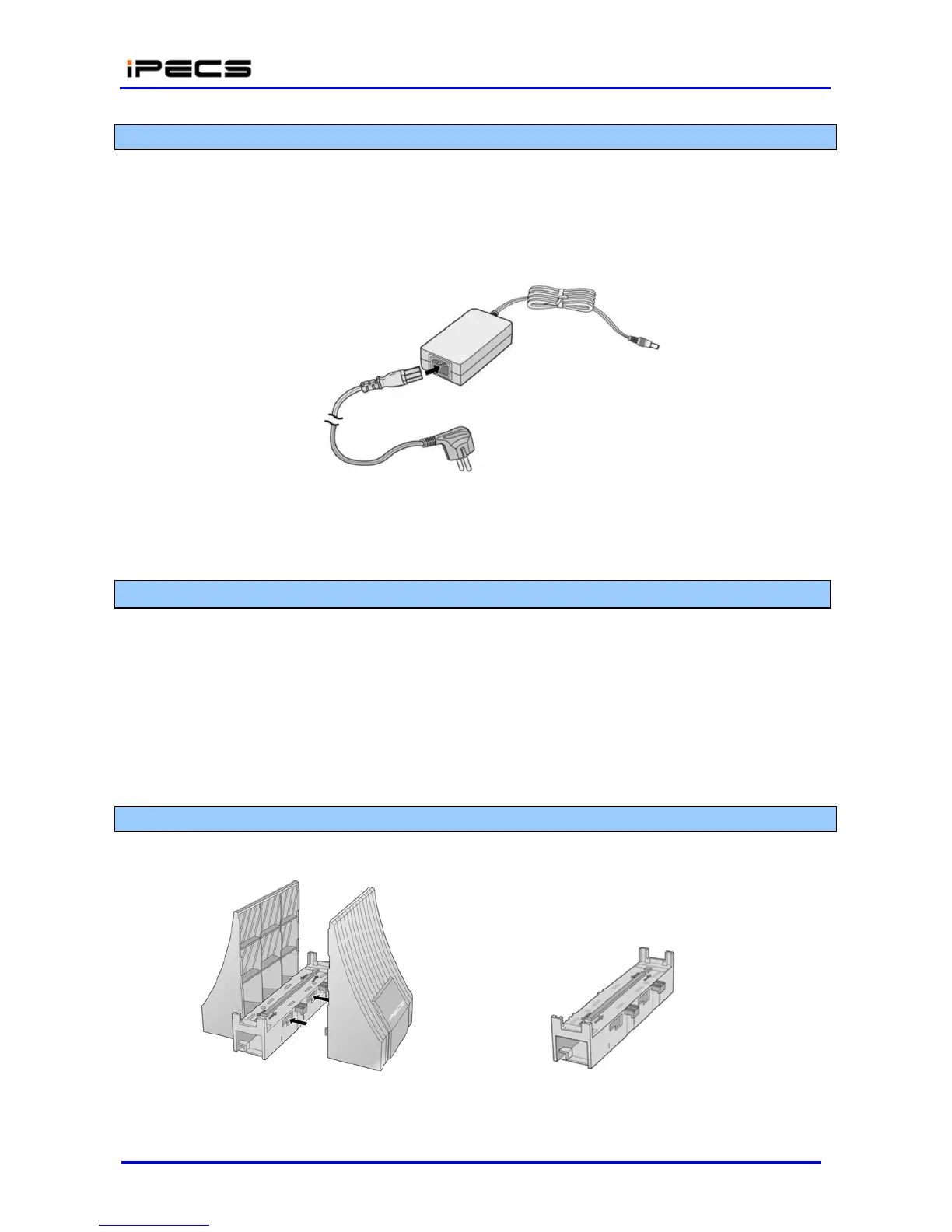

Figure 2.2.3-1 AC/DC Adapter for LIP-Phones & Console
2.3 MOUNTING HARDWARE MODULE
LIK-MFIM50A /B can be installed in several different manners:
Desk mounted using the Desk Mount Holder,
Wall mounted individually using the Wall Mount Holder, or
19” rack mounted individually using the 1U-Rack Mount Bracket.
The following paragraphs describe the mounting hardware MFIM50/B . Refer to iPECS Description
and Installation manual for instructions on installation of additional modules, if required.
2.3.1 DHLD (Desk mount HoLDer)/DHE (Desk mount Holder Extender)
The DHLD (Module Desk Mount Holder) consists of a pair of “book-ends” and DHE (Desk Mount
Holder Extender). One Extender is installed between the bookends for each module, and the
modules mounted between the bookends. The DHLD & DHE are shown in Figure 2.3.1-1.
Figure 2.3.1-1 DHLD
&DHE
