In addition, the LIP-8012D, 8024D and 8040L include 3 soft buttons. The function of these buttons
is interactive and shown in the lower line of the LCD. These models also incorporate a full duplex
speakerphone.
The LIP-8000 series phones include a Liquid Crystal Display (LCD). The LIP-8004 has a single
line 24-character display; the LIP-8012 and LIP8024D have graphic displays that show three (3)
lines with up to 24-characters per line. The lower line is used to display the interactive function of
the three soft buttons. The LIP-8040L has a large graphic display that displays the function of the
ten flexible buttons and a line to display the function of the three interactive soft buttons.
The LIP-8000 series phone circuitry includes Digital Signal Processing to implement packet voice
encoding and decoding, and echo cancellation as well as tone generation and speakerphone
operation. Note the LIP-8804D does not include speakerphone operation. The Volume controls,
which consist of separate volume up/down buttons, adjusts the level of the handset receiver,
speaker as well as the headset receiver, when used.
The LIP-8000 series phone may be powered locally with the AC/DC Adapter, reference section
2.2.3, or powered over the LAN with the POE8 or other 802.3af compliant Ethernet switch. If both
the AC/DC Adapter and powered LAN port are connected to the LIP-8000 terminal, the Adapter
will provide the required power.
The LIP-8000 series phones incorporate wall mounting in the base of the phone, no additional
hardware is required. Note; the matching DSS Console is also wall-mountable.
The DSS Consoles are provided in three models. The LIP-8048DSS has 48 flexible buttons with
LED status indicators. The LIP-8012DSS has 12 flexible buttons with LED status indicators. The
LIP-8012LSS has 12 flexible buttons and an LCD. The LCD displays the designation and status
for each button with up to 20 characters.

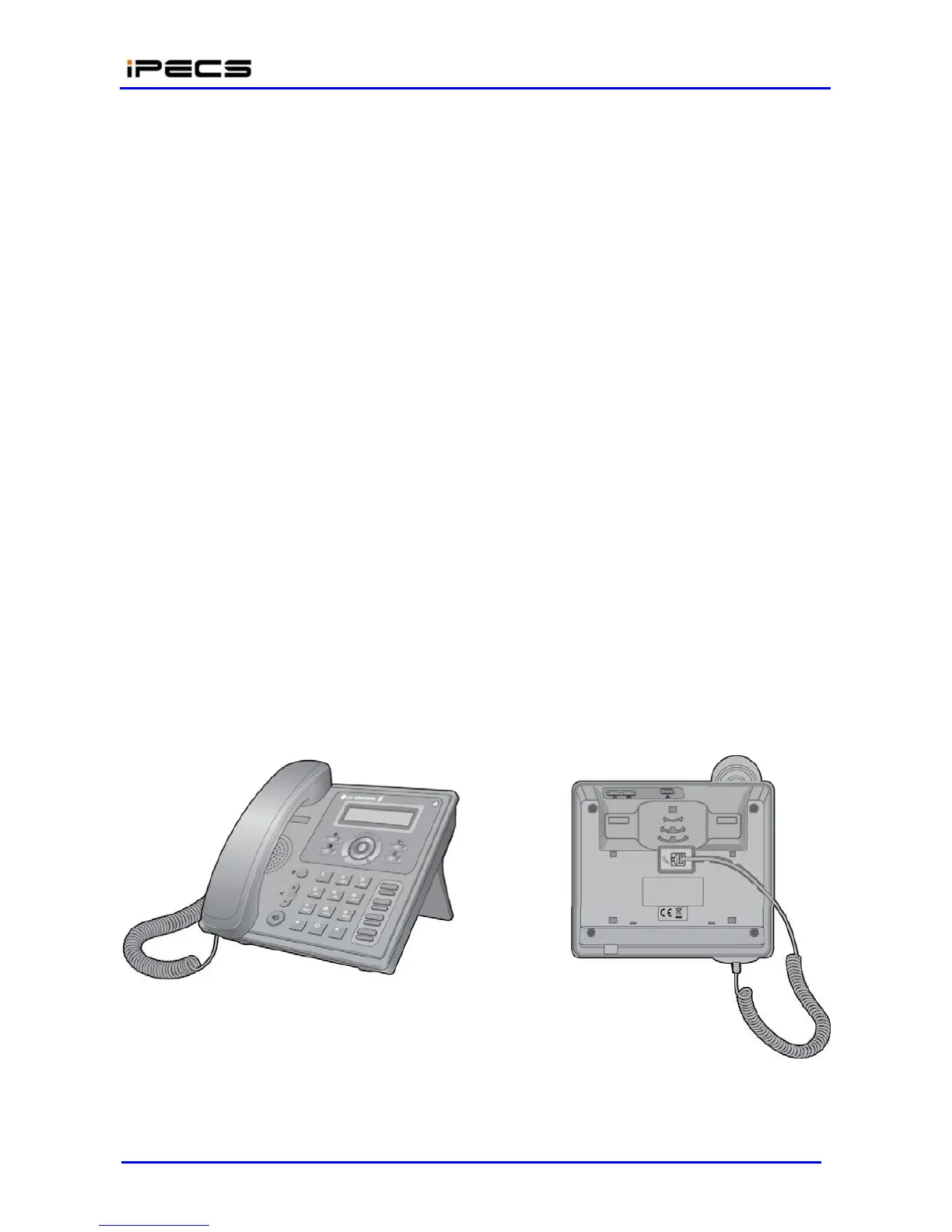

Figure 2.2.1-1
LIP-8002
