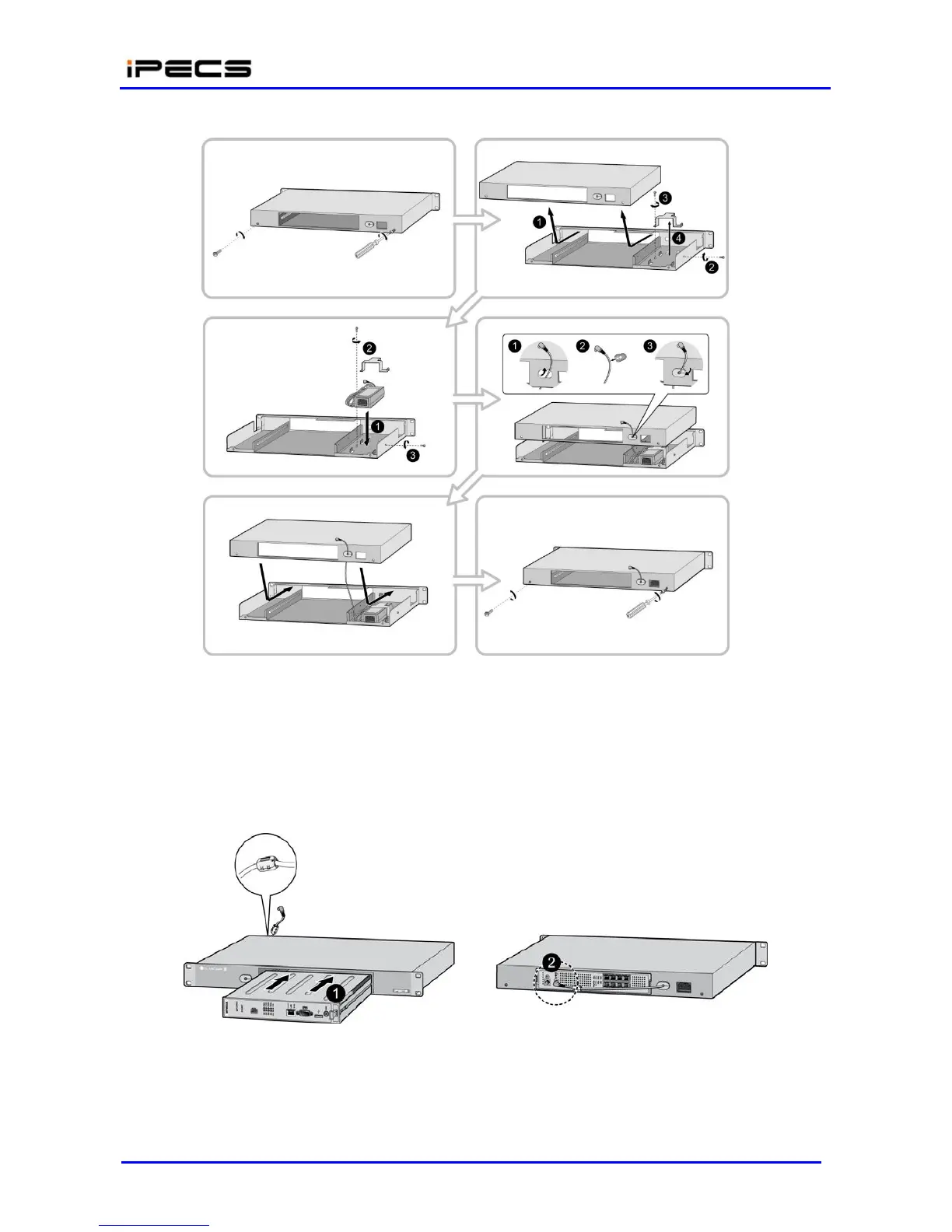

Figure 4.3.3-1 1URMB Adapter Installation
2. Install LIK-MFIM50A/B Module into the 1U-RMB and connect the adapter plug, refer to Figure
4.3.3-2.
Slide the Module into the 1U-RMB.
Connect the adapter DC plug to the LIK-MFIM50A/B .
Tighten the DC cable using the cable tie.
Figure 4.3.3-2 Mounting Module in 1URMB
3. Install the 1U-RMB in a standard 19” rack securely with four (4) appropriate machine screws,
nuts and lock-washers. Refer to Figure 4.3.3-3.
