35YLS-K
3.2.5 Electrical mounting plate
The electrical mounting plate of the high power fiber laser is shown as
an example in the following figure. The components and their arrange-
ment on the mounting plate can vary based on the configuration of the
laser. The exact layout of the mounting plate of your laser as well as the
information about the components used can be found in the supplied
circuit and layout diagram of the mounting plate.

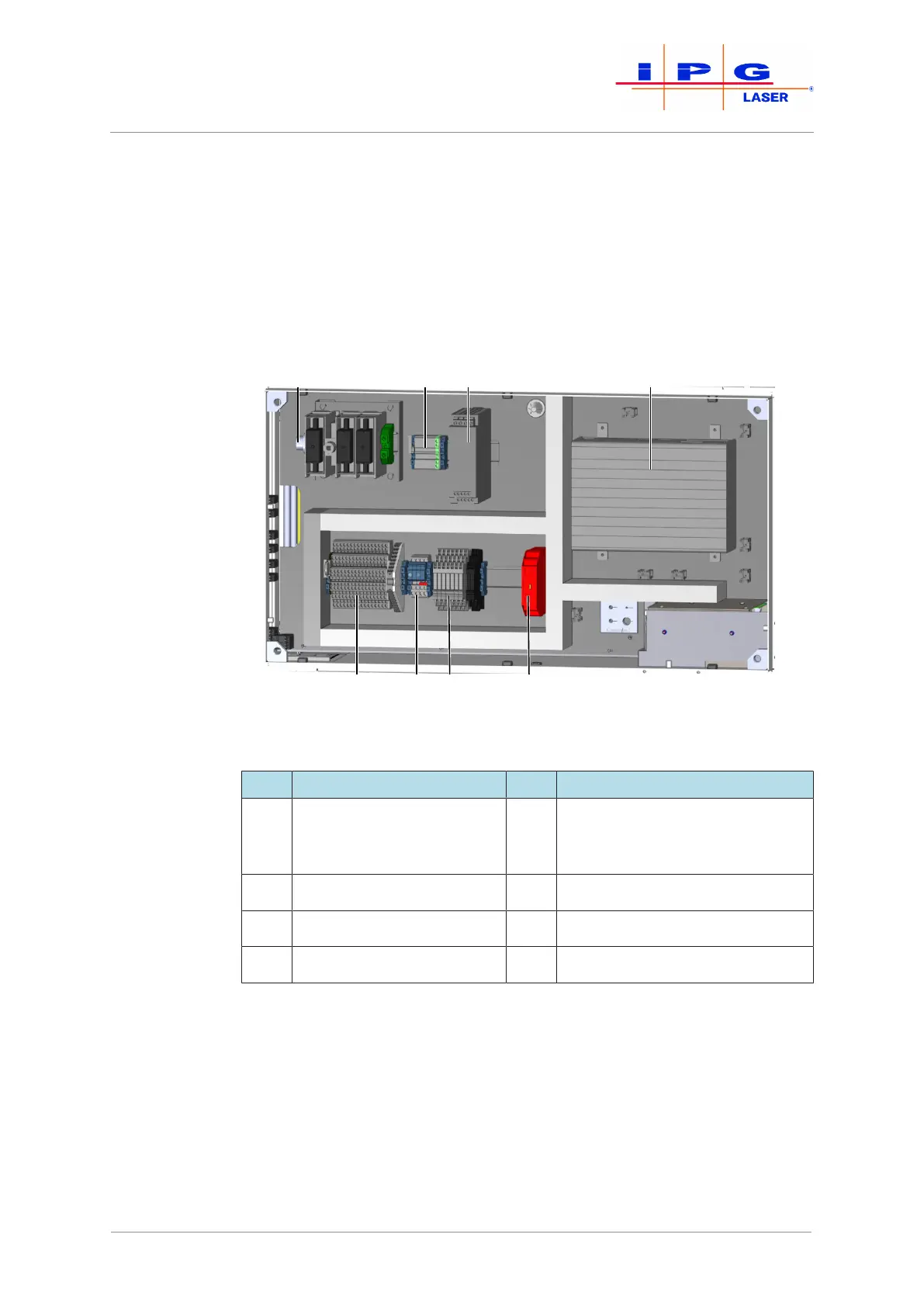

Figure9: Electrical mounting plate YLS-3000-K
Item Designation Item Designation
1 Main switch (secured dis-
connect switch with side
actuation)
5 Triple-deck terminal blocks
2 Feed-through terminals 6 Miniature fuses
3 24VDC power supply unit 7 Relays
4 Laser control 8 Monitoring safety relay
| Device description
