3.2.4 Main components
The main components of the high power fiber laser are described be-
low. The number and arrangement of the components can vary based
on the configuration of the laser. For more information about your
product, see the supplied technical data.
2
7
1
4
5
6
3

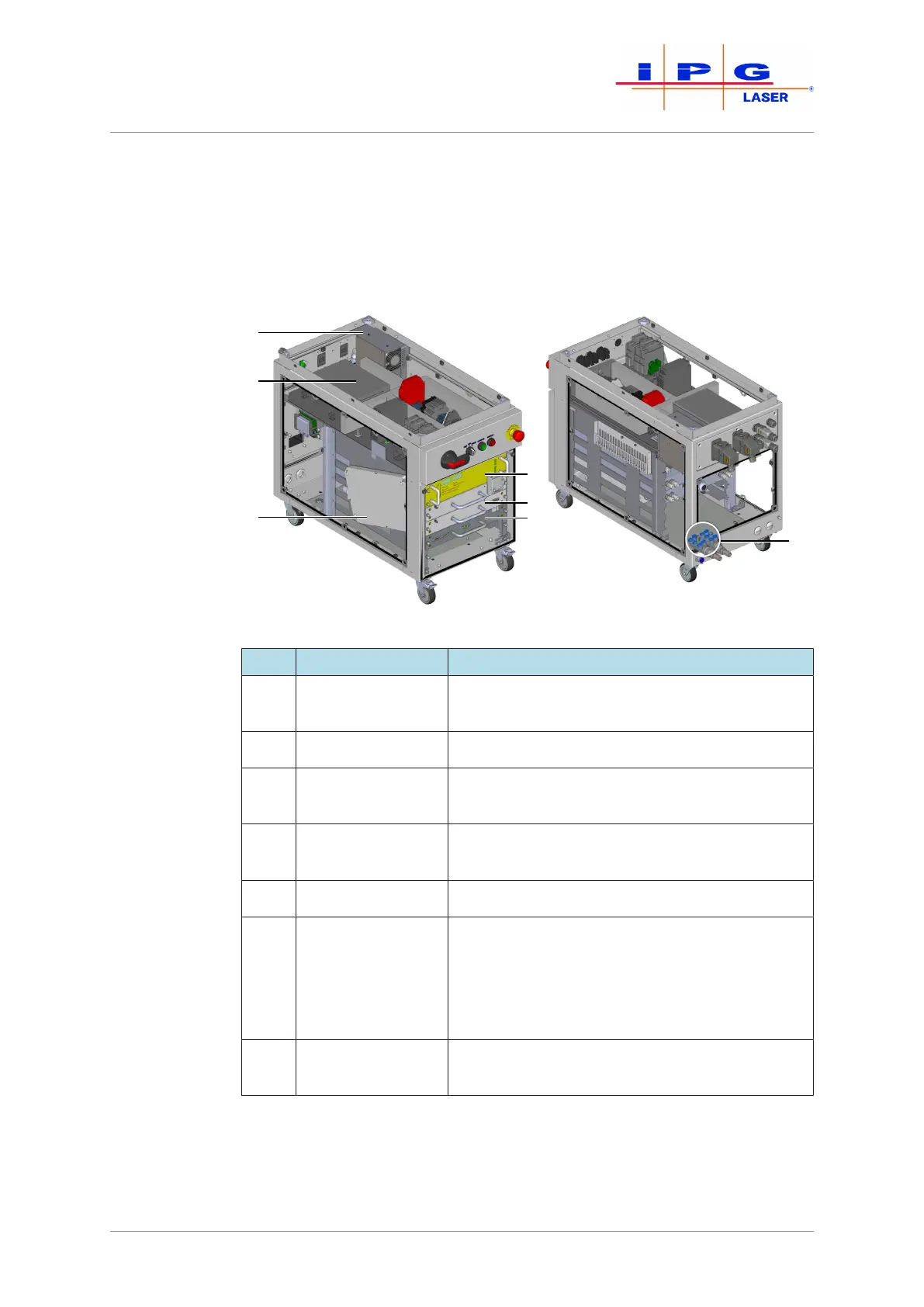

Figure8: Main components
Item Designation Description
1 Dehumidifier Lowers the absolute humidity in the laser cabi-
net.
2 Mounting plate Contains the control and power electronics.
3 Splice box Connects the fiber from the combiner module
with the feeding fiber.
4 Laser power sup-
ply
Provides the necessary voltage and current in-
tensity to the laser modules.
5 Laser modules generate the laser radiation.
6 Combiner module Connects the fiber from the laser module with
the feeding fiber.
Contains sensors for measuring the reflection
and electronic components for evaluating the
fiber break monitoring.
7 Distributor of the
water system
The distributor distributes the cooling water
among the existing cooling circuits.
