YLS-K
3.2.2 Interfaces and connections
The number and arrangement of the interfaces and connections can
vary based on the configuration of the product. The complete overview
of existing interfaces of your product, as well as the interface descrip-
tion and the contact assignment of the customer interfaces, can be
found in the supplied specifications.
1
2

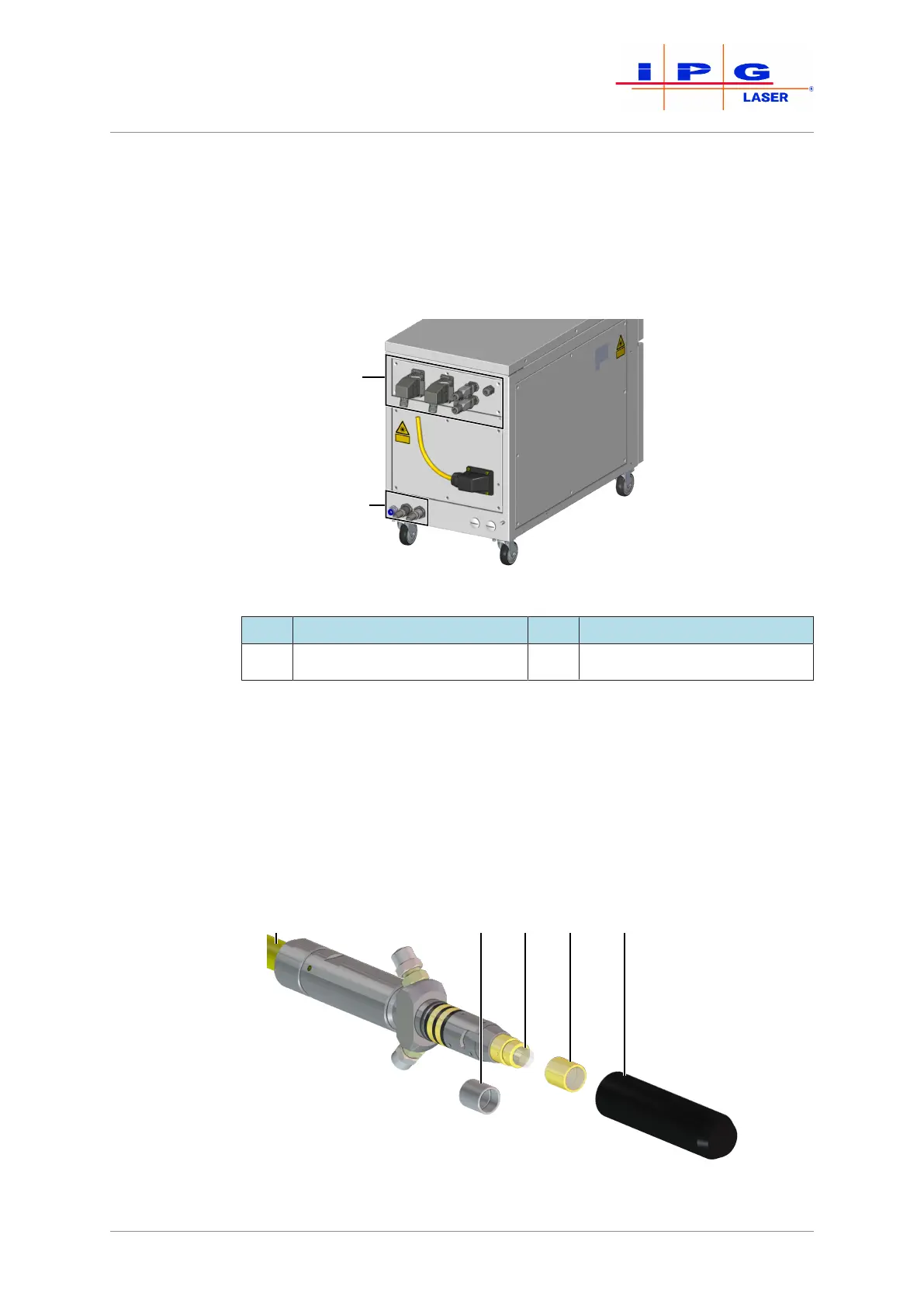

Figure5: Interfaces and connections
Item Designation Item Designation
1 Interfaces 2 Water connections
3.2.3 Fiber connector
All lasers are supplied with a feeding or process fiber with a fiber con-
nector located at the end. The quartz block at the end of the fiber con-
nector is used as an optical output of the laser and is protected against
knocks and shocks by a protective conduit or protective glass (depend-
ing on the ordered configuration). The protective glass offers protection
against contamination of the quartz block and can be exchanged quickly
if necessary.
1 3 4 52
Figure6: Fiber connector with accessories
