Tighten the Slotted Nut into the screw. The Slotted Nut should be tightened sufficiently to
compress the Rubber Grommet and to prevent water from getting under the Iridium Edge and
then down inside of the installation. Do not exceed a 5N-m when tightening the nut.
The Spiral Sheath protects the pigtail from chaffing. Unwrap the sheath and wrap it around the
pigtail just above the heat shrink.

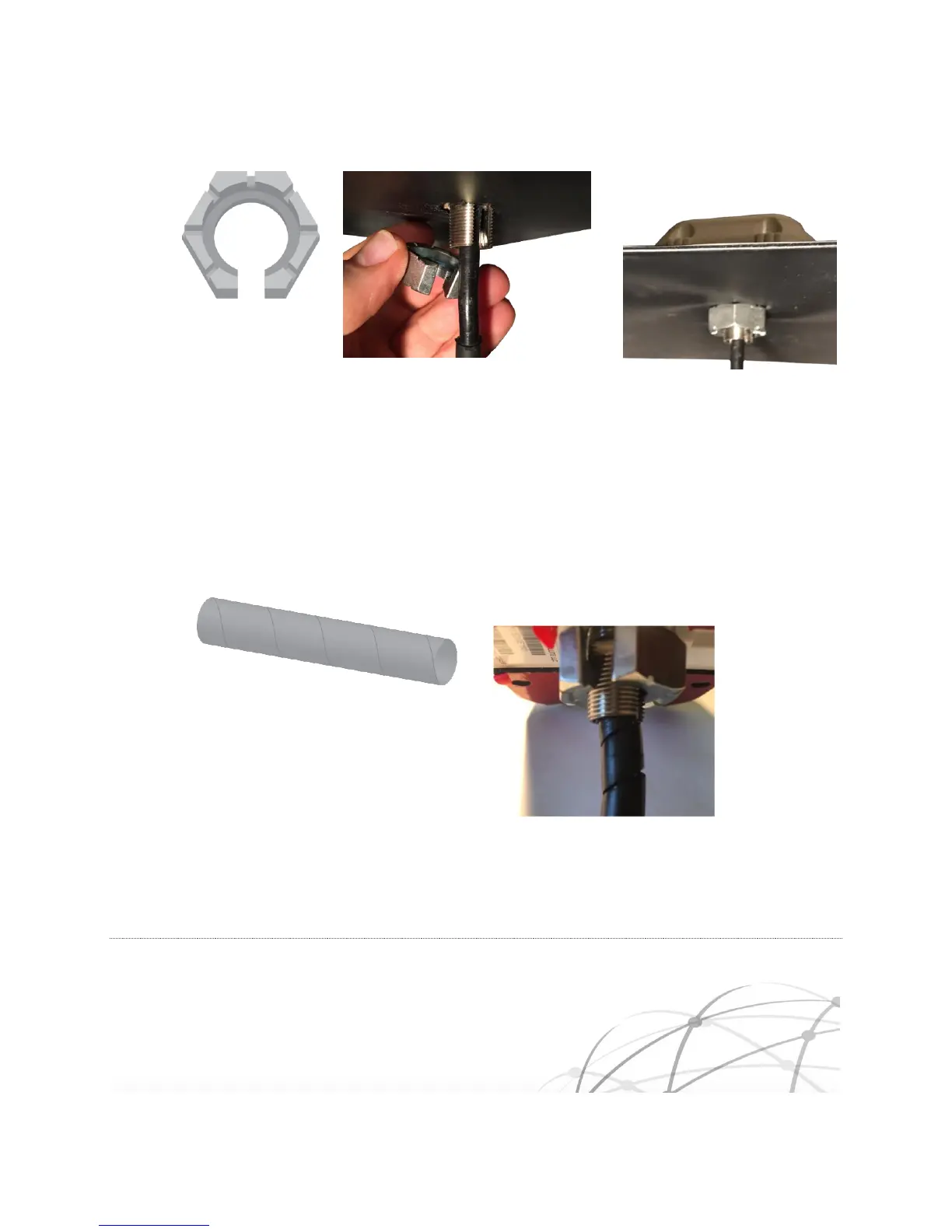

Figure 5-7 Spiral Sheath
Firmly press the sheath so that it makes contact with the Iridium Edge’s baseplate and goes
inside the Slotted Screw.
