IRIS 700 Series

IRIS MODEL 700/800 APPLICATION MANUAL
PAGE 13

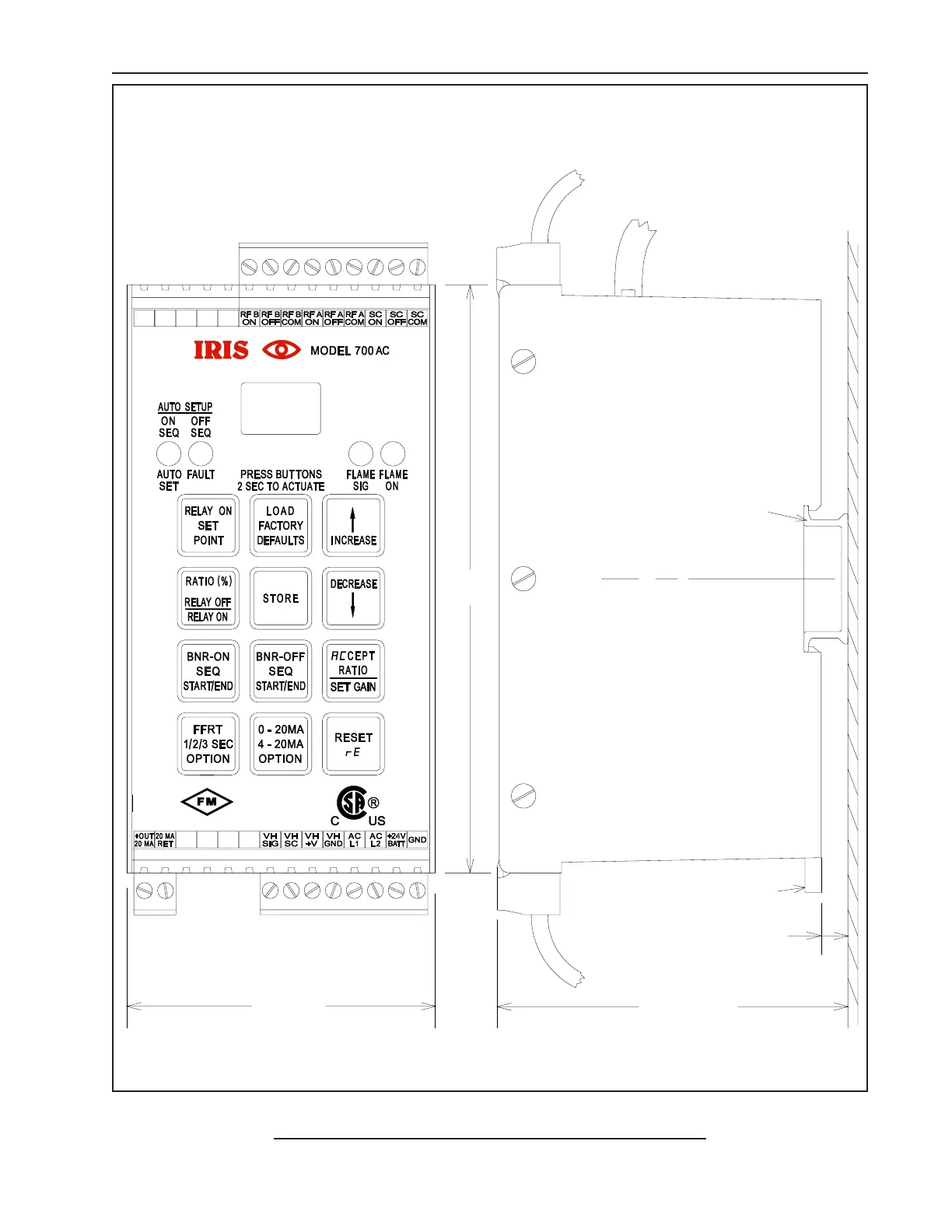

FIGURE 1 - MODEL 700AC SIGNAL PROCESSOR
2.90"
3.25"
5.49"
.25"
35mm DIN RAIL
DIN RAIL RELEASE
C
L
RS422 WIRING
RELAY CONNECTIONS
APPROVED
