IRIS MODEL 700/800 APPLICATION MANUAL
PAGE 30
RATIO OFF
RATIO ON
RATIO (%)
RATIO OFF
RATIO ON
RATIO (%)

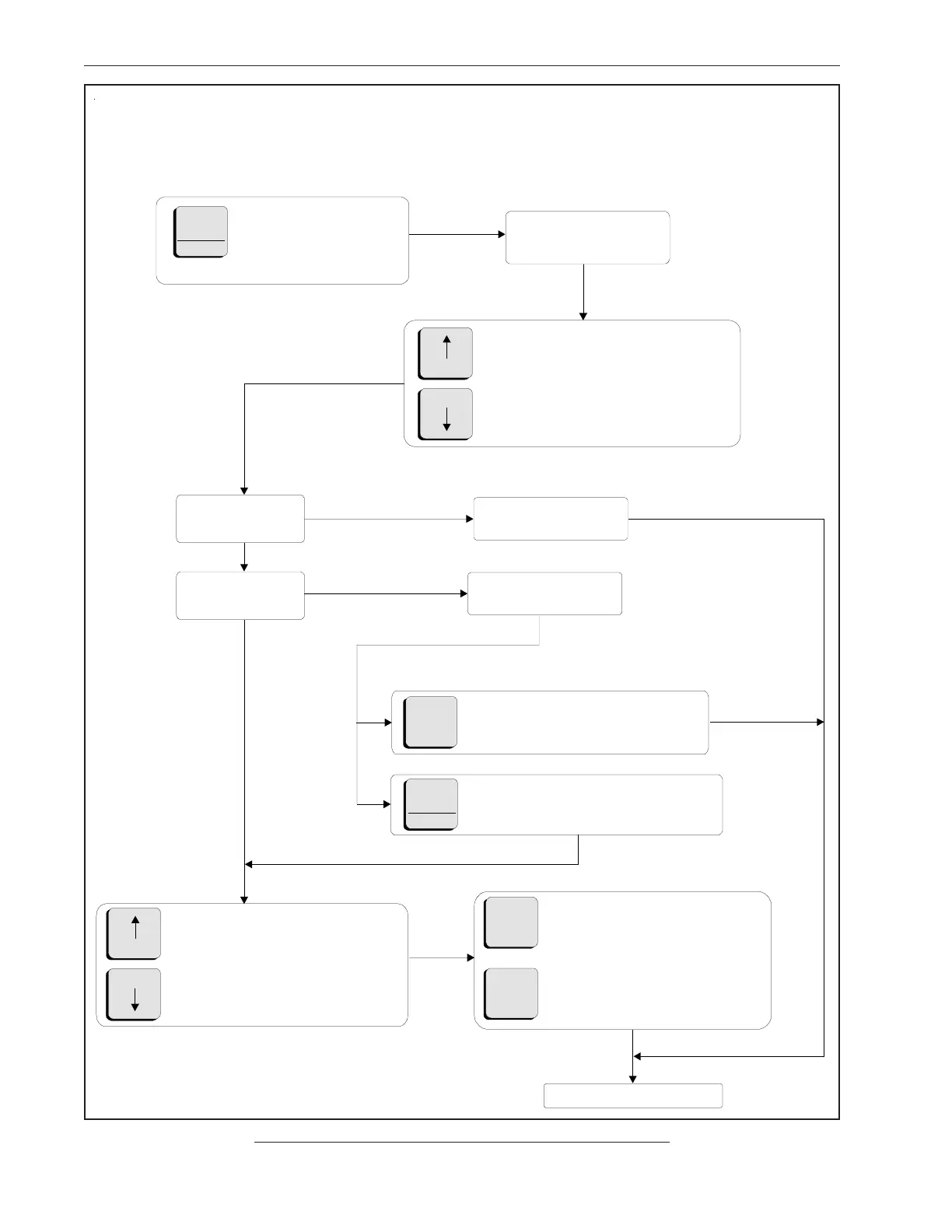

FLOWCHART OF MODEL 700
2 SECS
Display shows current
ratio setting in percent
Use INCREASE OR DECREASE
keys to adjust setting
Is the AUTO SET
light lit?
Y
Press Store to save
the new setting
OR
Press reset or wait 4 seconds
to restore old setting
OR
Press reset or wait 4 seconds to
cancel changing the auto ratio
N
Press RATIO (%) again to confirm
you want to change the auto setting
Use INCREASE OR DECREASE
keys to adjust setting
NORMAL OPERATION
INCREASE
DECREASE
RESET
rE
INCREASE
DECREASE
RESET
rE
STORE
S R P ETTING ATIO ERCENTAGE
Press RATIO (%)
for 2 seconds
Display shows ‘CF’,
meaning Confirm
Is the panel
locked?
Y
N
Display shows ‘PL’
until key released
FLOW CHART 6 - MANUAL FLAME OFF SETUP
