IRIS MODEL 700/800 APPLICATION MANUAL
PAGE 28
A
S
-
P
3
UTO ETUP AGE
Is the auto setup
ratio unacceptable?
RATIO > 80%
Ratio is unacceptable
NORMAL OPERATION
Is the auto setup
ratio marginal?
71% < RATIO < %81
Ratio may be
acceptable
Display ‘- -’ for one second
and new values are saved
shows
NORMAL OPERATION
ACCEPT
MARGINAL
RATIO
Press ACCEPT MARGINAL RATIO
to accept the ratio displayed
Press reset at any time during this
procedure to cancel auto setup
RESET
rE
NOTE:
Display alternates
showing ‘AC’
and the new ratio setting
Press reset to cancel auto setup
RESET
rE
Display alternates
showing
‘UA’ and ratio
Y
N
Y

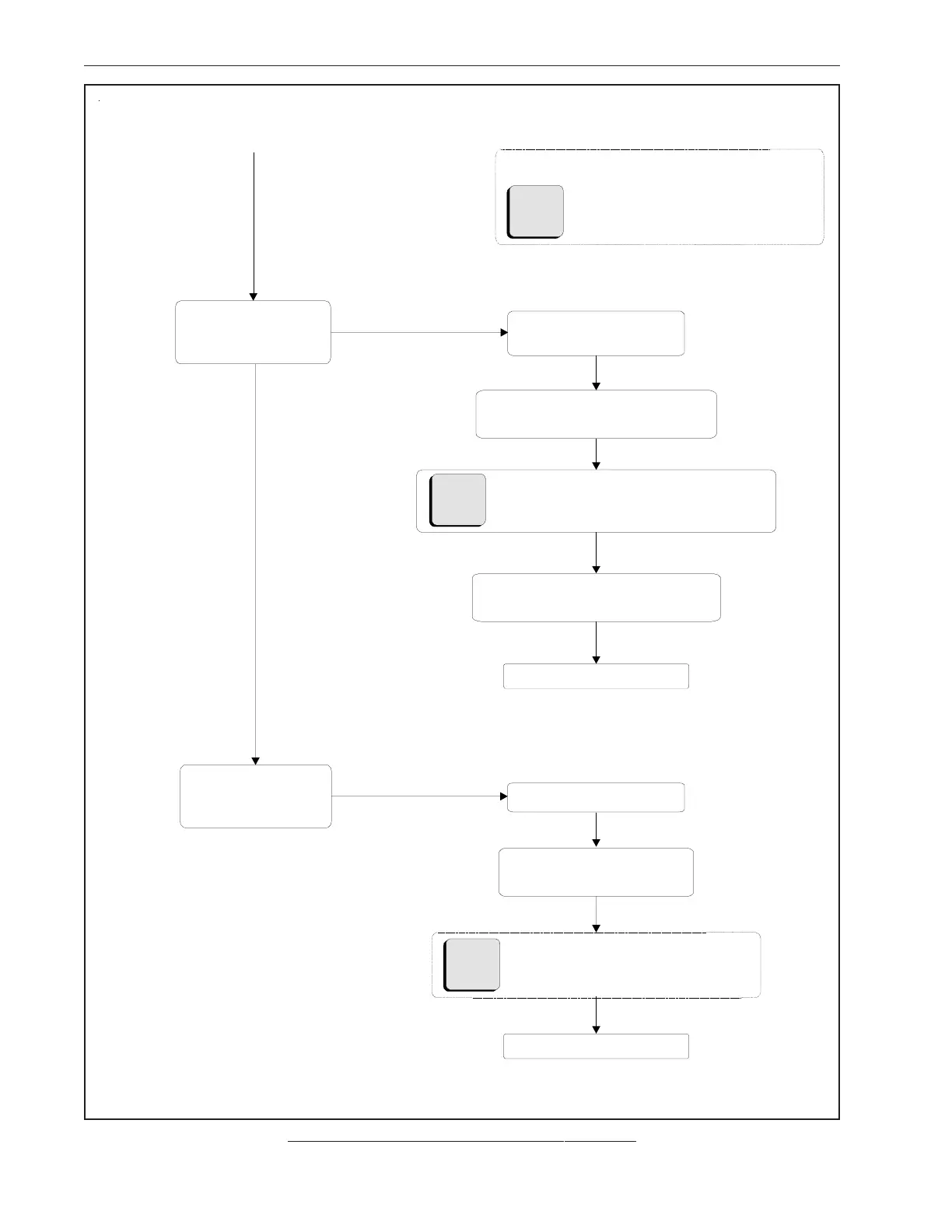

FLOW CHART 4 - AUTO SETUP PAGE 3
