IRIS MODEL 700/800 APPLICATION MANUAL
PAGE 32
S ETTING A NALOG O UTPUT LEVELS
(0-20/4-20 M A)
2 SECS
Display shows:
‘02’ for 0-20mA
‘42’ for 4-20mA
Use INCREASE OR DECREASE
keys to adjust setting
Press Store to save
the new setting
OR
Press reset or wait 4 seconds
to restore old setting
Use INCREASE OR DECREASE
keys to adjust setting
NORMAL OPERATION
INCREASE
DECREASE
INCREASE
DECREASE
RESET
rE
STORE
Press 0-20/4-20mA
OPTION for 2 seconds
Is the panel
locked?
Y
N
Display shows ‘PL’
until key released
0-20 mA
4-20 mA
OPTION

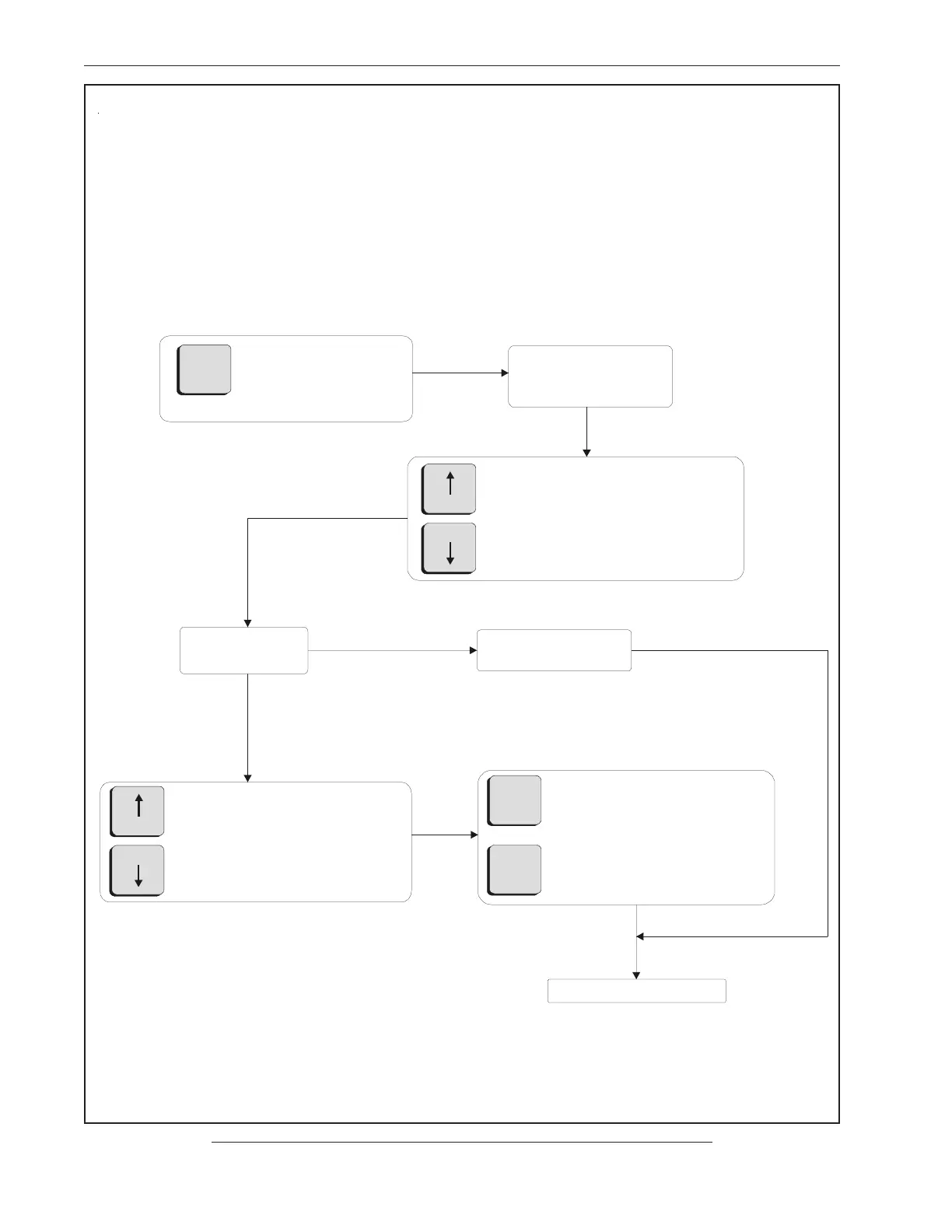

FLOWCHART OF MODEL 700
FLOW CHART 8 - 0-20/4-20mA ANALOG OUTPUT SETUP
