IRMA MATRIX Door Clear option | Mounting and operating instructions

released

Rev. 1.3

2018-08

1 IRMA MATRIX sensor (built-in version)

2 sCON connector for

sCON-S-CAN-22-Kn-1-2m CAN connection

3 M12 extension cable, CAN type, K-M12CAN-XX-x

4 M12-CAN-H distributor with cap, M12CAN-CON-03

5 M12 male terminator, M12CAN-TR-02

6 Sealing cap

7 M12 voltage supply cable

8 Fuse

9 Adapter cable M12 to SubD9 K-A21-M12CAN-0x-32cm

10 Still to be defined

D 1 D2 Function area 1 and 2

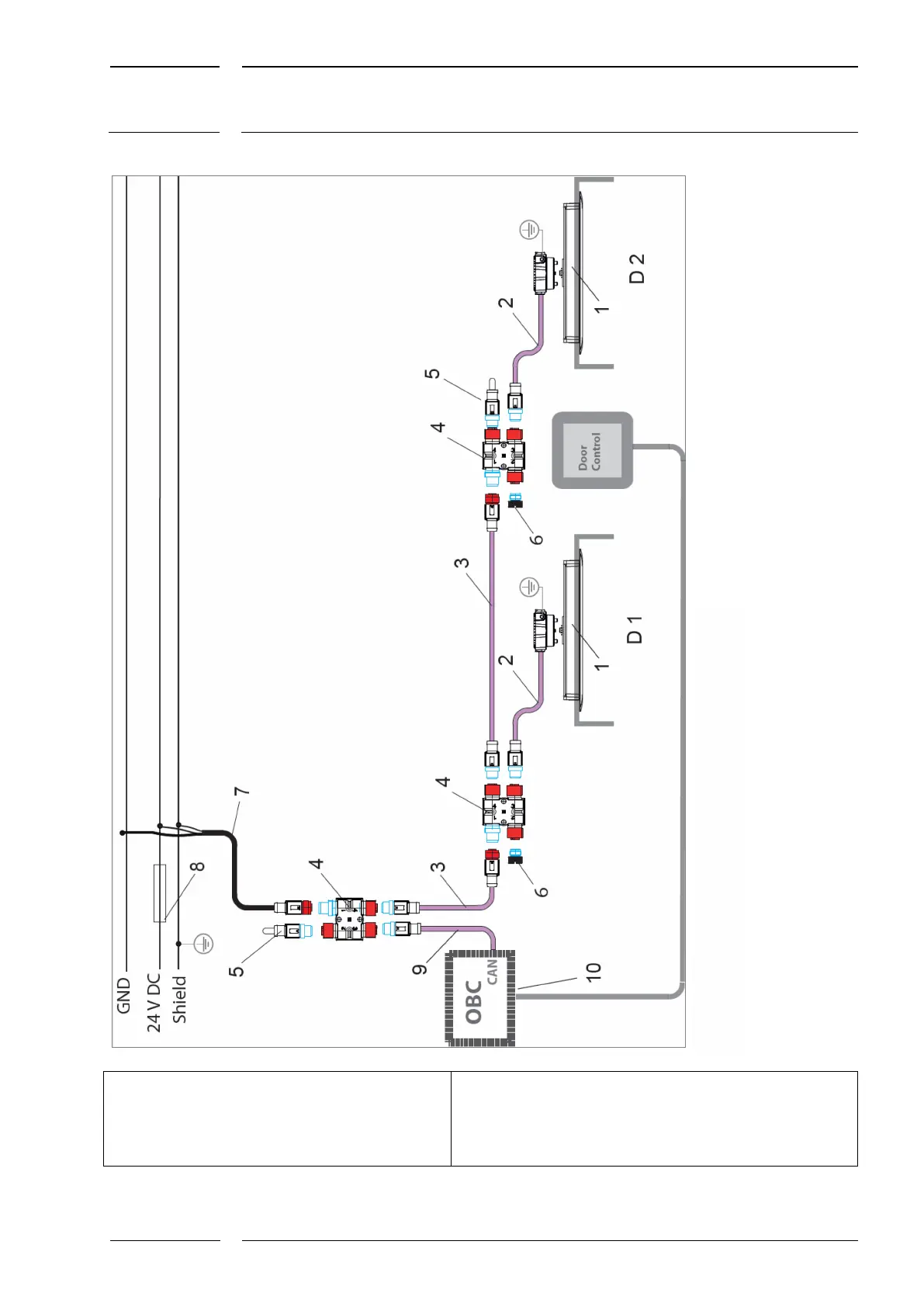

Fig. 1: Wiring diagram for CAN direct integration
