IRMA MATRIX Door Clear option | Mounting and operating instructions
released
Rev. 1.3
2018-08
1 IRMA MATRIX sensor (built-in version)
2 sCON connector for
sCON-S-CAN-22-Kn-1-2m CAN connection
3 M12 extension cables, CAN type, K-M12CAN-XX-x
4 M12-CAN-H distributor (opt. with cap) M12CAN-CON-03
5 M12 male terminator, M12CAN-TR-02
6 Sealing cap
D1, D2 Function areas 1 and 2
7
M12 voltage supply cable
8 Fuse
9 Still to be defined
10 Sub-D9 male connector for CAN connection
11: Analyzer with switching output to the door control unit using
K-A21-M12CAN-01-32cm,
12: Gateway IBIS to OBC using K-A21-V-IBIS-07-15-15-15-15-15-15m

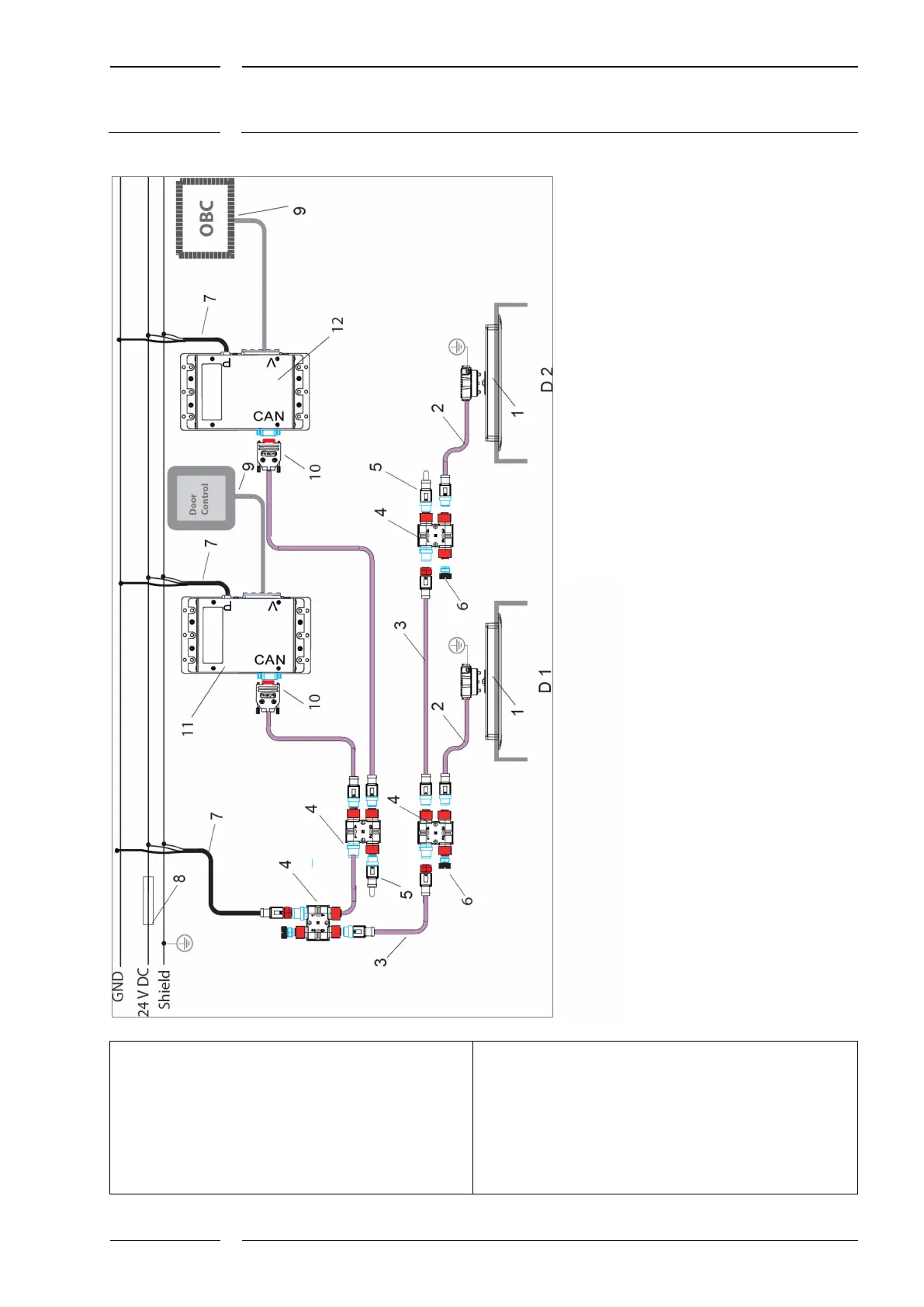

Fig. 2: Wiring diagram for gateway IBIS and switching output
