2
SETUP
PROCEDURES

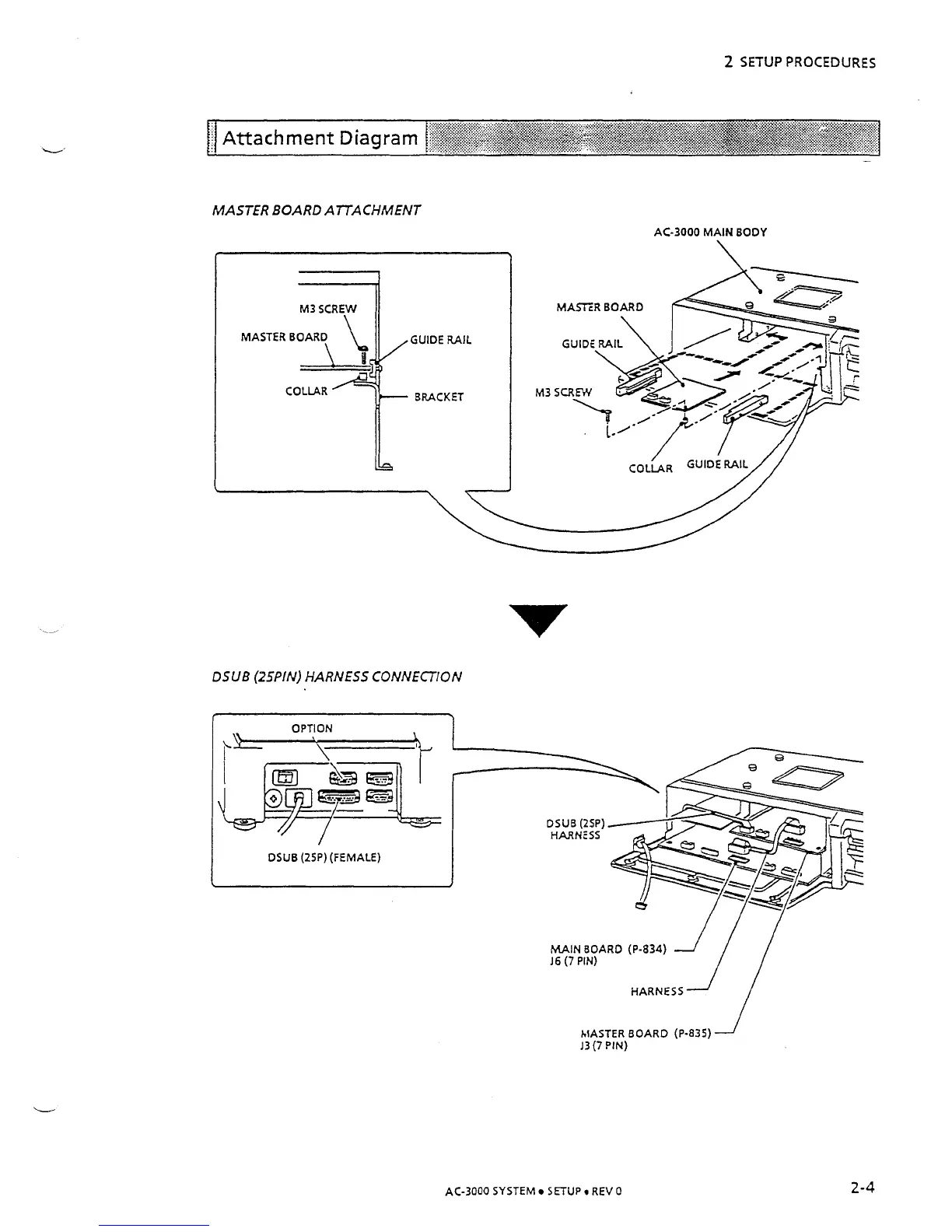

MASTER BOARD ATTACHMENT
M3 SCREW
MASTER BOARD GUIDE
RAIL
COLLAR
BRACKET
AC-3000 MAIN BODY
DSUB (SSPIN) HARNESS CONNECTION
I
DSUB (25P) (FEMALE)
I
DSUB (2SP)
HARNESS
MAIN
BOARD (P-834)
1
16 (7 PIN)
HARNESS
'i
MASTER BOARD (P-835)
---/
13 (7 PIN)
AC-3000 SYSTEM
SETUP
r
REV
0
