AC-3000 SYSTEM SETUP OVERVIEW

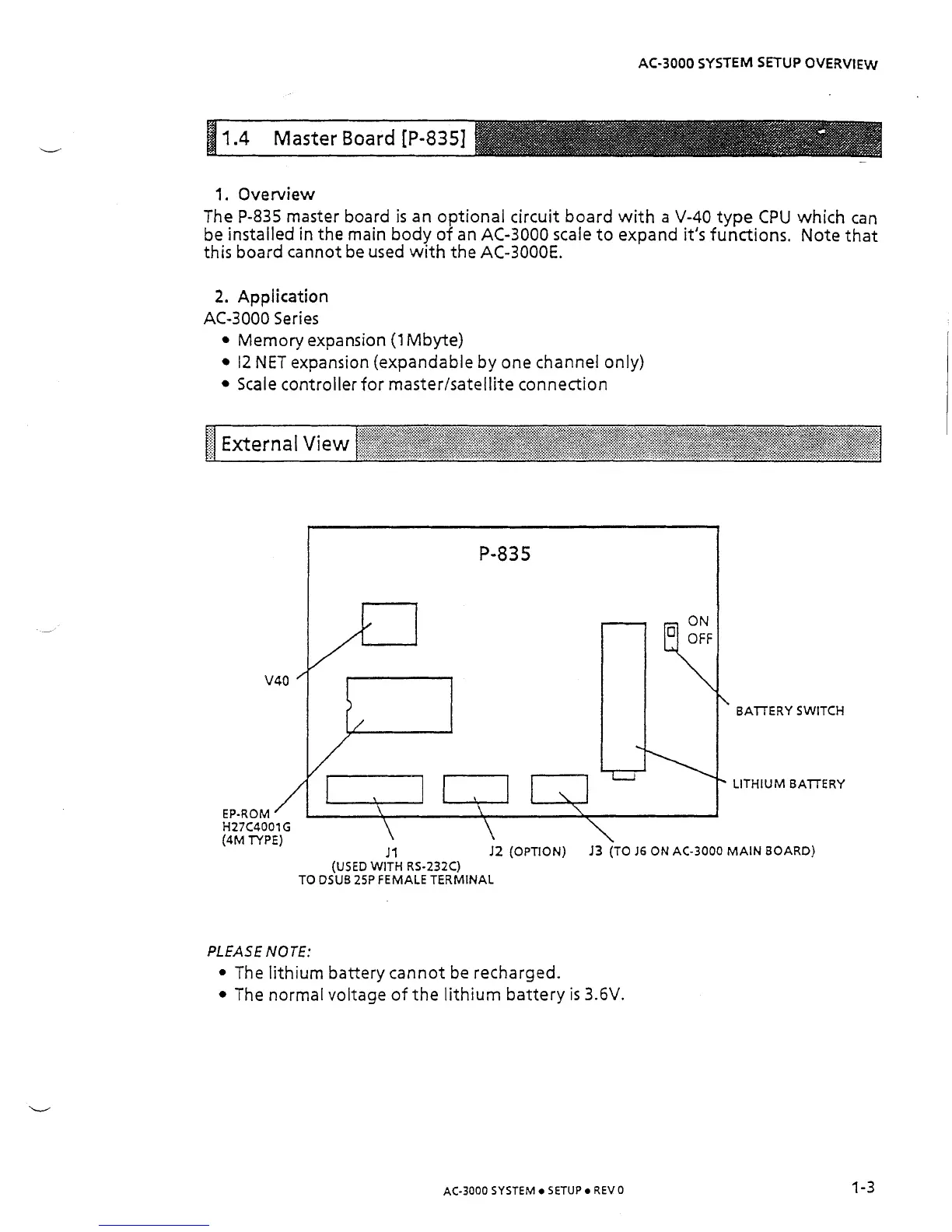

1. Overview
The P-835 master board
is an optional circuit board with a V-40 type CPU which can
be installed in the main body of an AC-3000 scale to expand
it's functions. Note that
this board cannot be used with the AC-3000E.
2. Application
AC-3000 Series
Memory expansion (1 Mbyte)
I2 NET expansion (expandable by one channel only)
Scale controller for master/satellite connection
PLEASE NOTE:
The lithium battery cannot be recharged.
The normal voltage of the lithium battery is 3.6V.
\
AC-3000 SYSTEM SETUP REV 0
\
BAlTERY SWITCH
\
\
I n I \,- -\
EP-ROM
LITHIUM BAnERY
H27C4001 G
(4M MPE) \ \
J1 J2 (OPTION) J3 (TO 16 ON AC-3000 MAIN BOARD)
(USED WITH RS-232C)
TO DSUB 25P FEMALE TERMINAL
