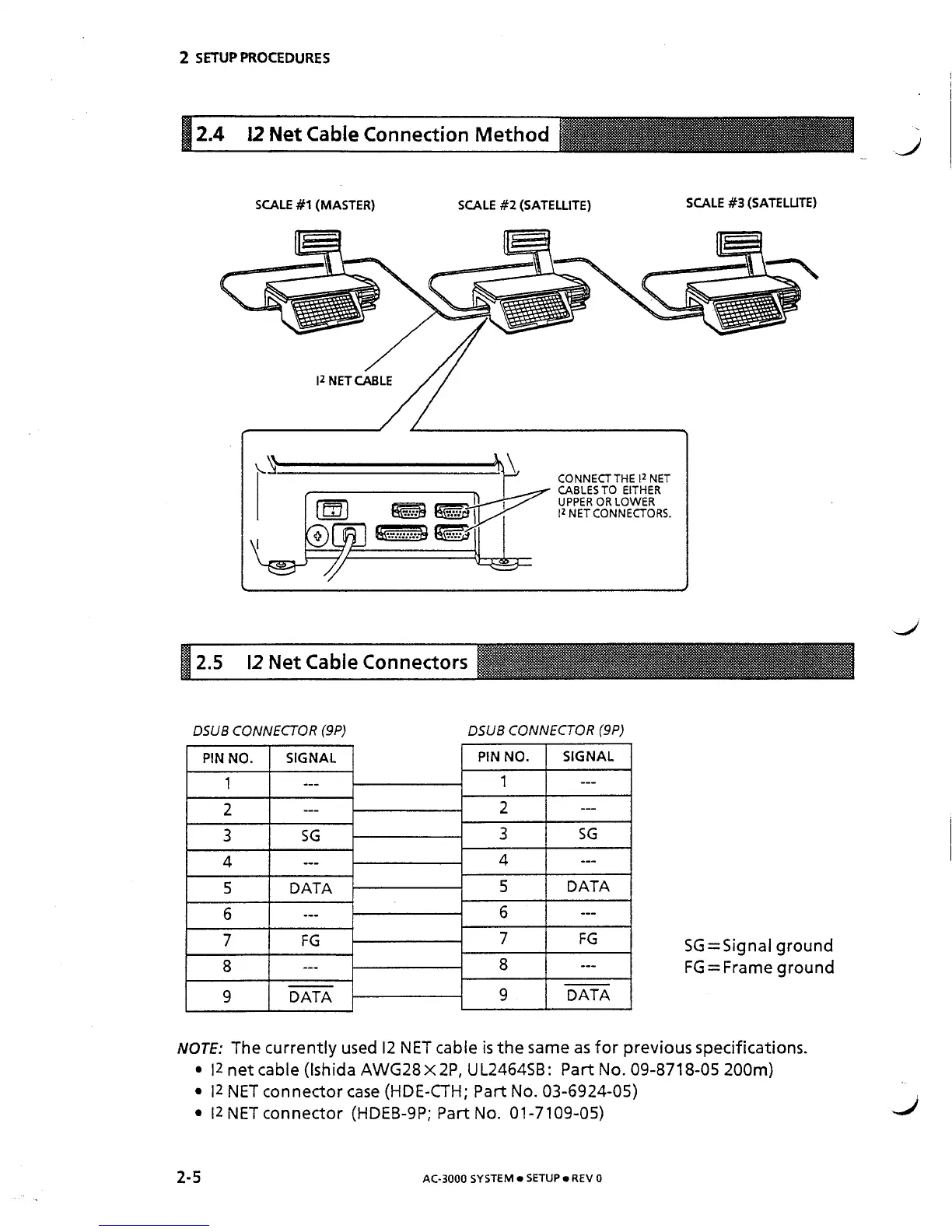

ISHIDA AC-3000 - I2 Net Cable Connection Method; I2 Net Cable Connectors

2 SETUP PROCEDURES
SCALE #I (MASTER) SCALE #2 (SATELLITE) SCALE #3 (SATELLITE)
CONNECT THE 12 NET
CABLES TO EITHER
UPPER OR LOWER
12 NET CONNECTORS.
SG =Signal ground
FG =Frame ground
DSUB CONNECTOR (9P)
DSUB CONNECTOR (9P)
NOTE: The currently used I2 NET cable is the same as for previous specifications.
12 net cable (Ishida AWG28X2P, UL2464SB: Part No. 09-8718-05 2OOm)
12 NET connector case (HDE-CTH; Part No. 03-6924-05)
12 NET connector (HDEB-9P; Part No. 01-7109-05)
8
9
2- 5
AC-3000 SYSTEM SETUP REV 0
---
-
DATA
8
---
-- 9 DATA
