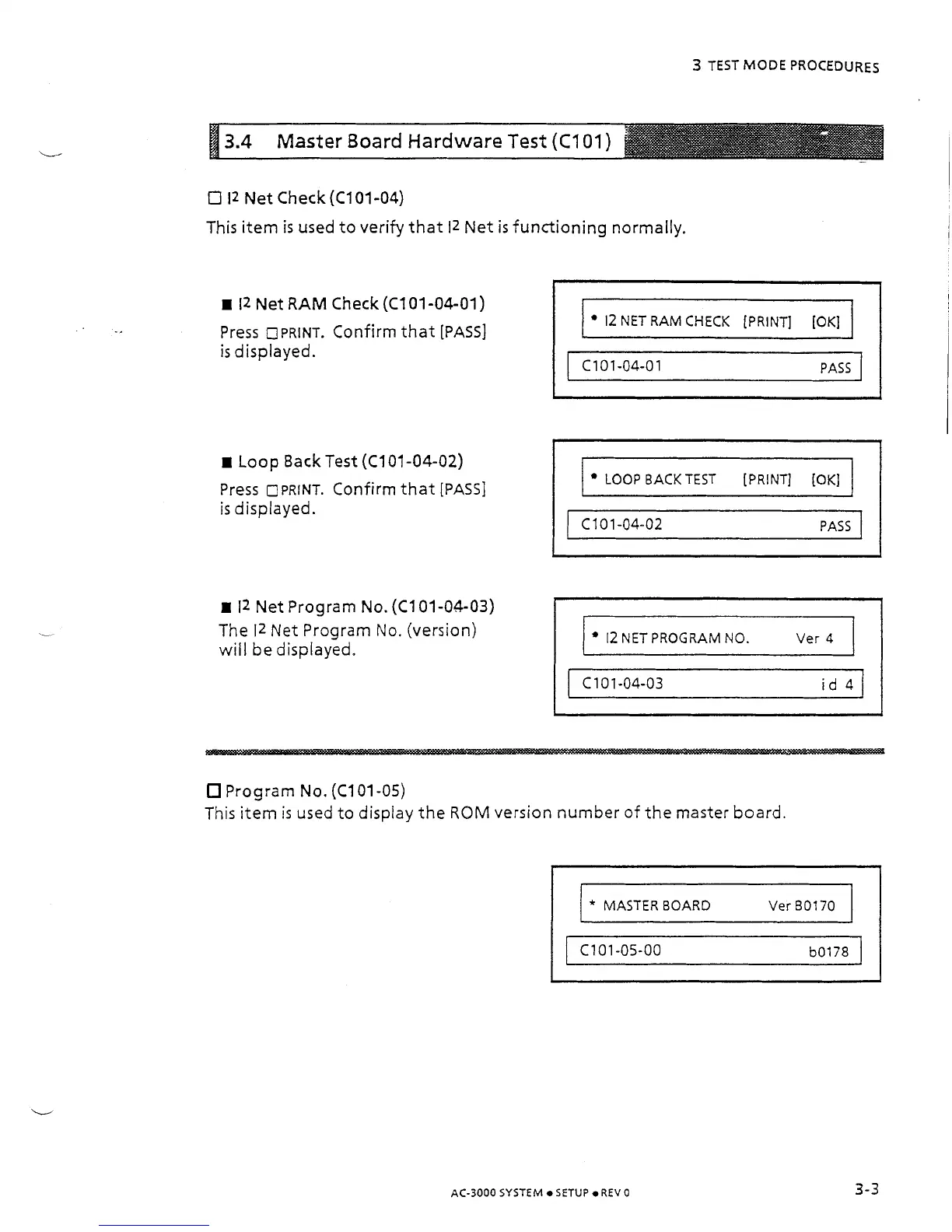

ISHIDA AC-3000 - Master Board Hardware Test

3 TEST MODE PROCEDURES
0 12 Net Check (C101-04)
This item
is used to verifij that I2 Net is functioning normally.
r 12 Net RAM Check (C101-04-01)
Press
OPRINT. Confirm that [PASS]
is displayed.
I/
12 NET RAM CHECK [PRINT] [OK]
ClO1-04-01 PASS
r Loop Back Test (C101-04-02)
Press
0 PRINT. Confirm that [PASS]
is displayed.
I I LOOP BACK TEST [PRINT] [OK] I
1 1 c101-04-02
PASS
1 I
r 12 Net Program No. (C101-04-03)
The
12 Net Program No. (version)
will be displayed.
12 NET PROGRAM NO. Ver 4
Program No. (C101-05)
This item
is used to display the RQM version number of the master board.
I [* MASTERBOARD Ver 80170
I I
AC-3000 SYSTEM SETUP REV 0
