FRONT AND REAR PANELS
17

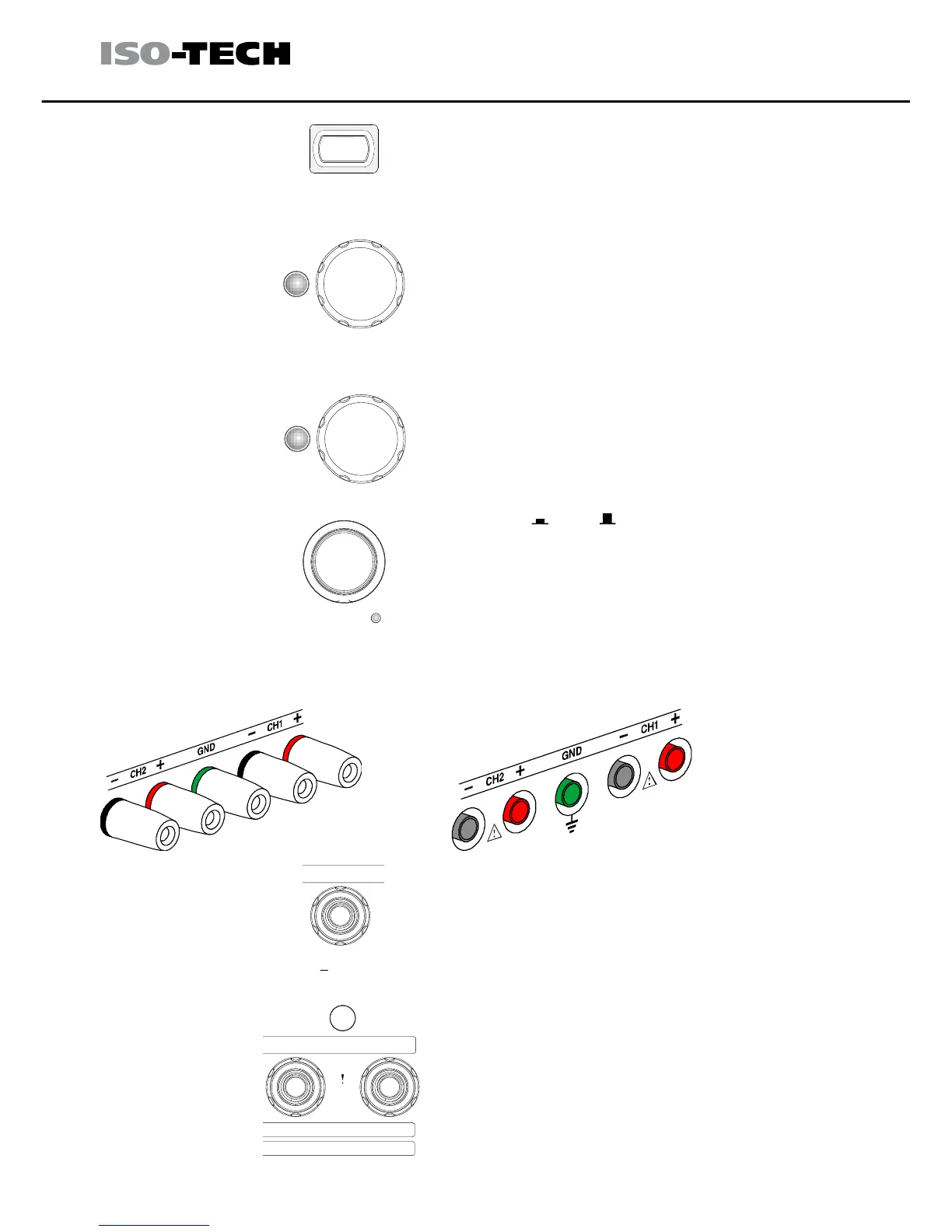

Output Key
OUTPUT
Turns the output on or off.
Voltage Knobs
COARSE/FINE
FINE
VOLTAGE
Push
Adjusts the output voltage level for the selected
channel. Pressing the knob switches coarse and
fine level setting.
Current Knobs
COARSE/FINE
FINE
Push
CURRENT
Adjusts the output current level for the selected
channel. Pressing the knob switches coarse and
fine level setting.
Power Switch
POWER
Turns On or Off the main power. For power up
sequence, see page 20.
Terminals
Default Terminals
European Terminals
GND Terminal
GND
Accepts a grounding wire.
CH1 Output
CH1 CV/CC
Indicator
C.V. C.C.
0 30V , 3A
CH1
MASTER
COM
+
+
Indicates CH1 Constant Voltage or Constant
Current state.
CH1 Output
Outputs CH1 voltage and current.
