OPERATION
31
C.V. C.C. PAR. C.V. C.C.
CH2
CH1
Voltage level
Double the reading on the CH1 Voltage meter. In the
above case, the actual output is 20.0 x 2 = 40.0V.
Current level
CH1 meter reading shows the output Current. In the
above case, 2.000A. (CH2 Current control must be
in the Maximum position=3.0A).

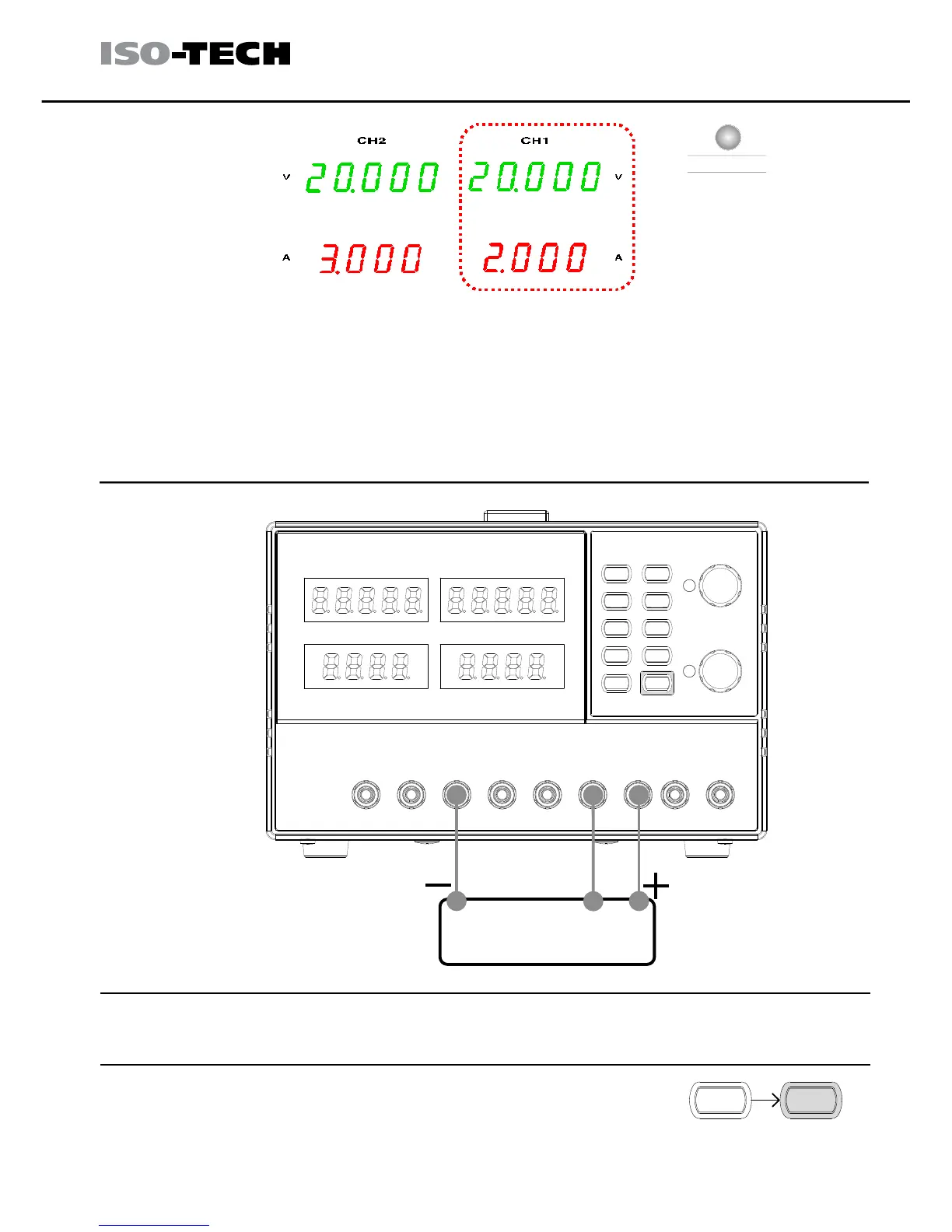

Tracking series with common terminal
Connection
V
A
V
A
CH4 CH2 GND CH3CH1
LOAD
COM
Output rating
0 to 30V / 0 to 3A for CH1 to COM
0 to –30V / 0 to 3A for CH2 to COM
1. Press the SER/INDEP key to activate the
tracking series mode. The key LED turns on.
/INDEP
SER
/INDEP
SER
