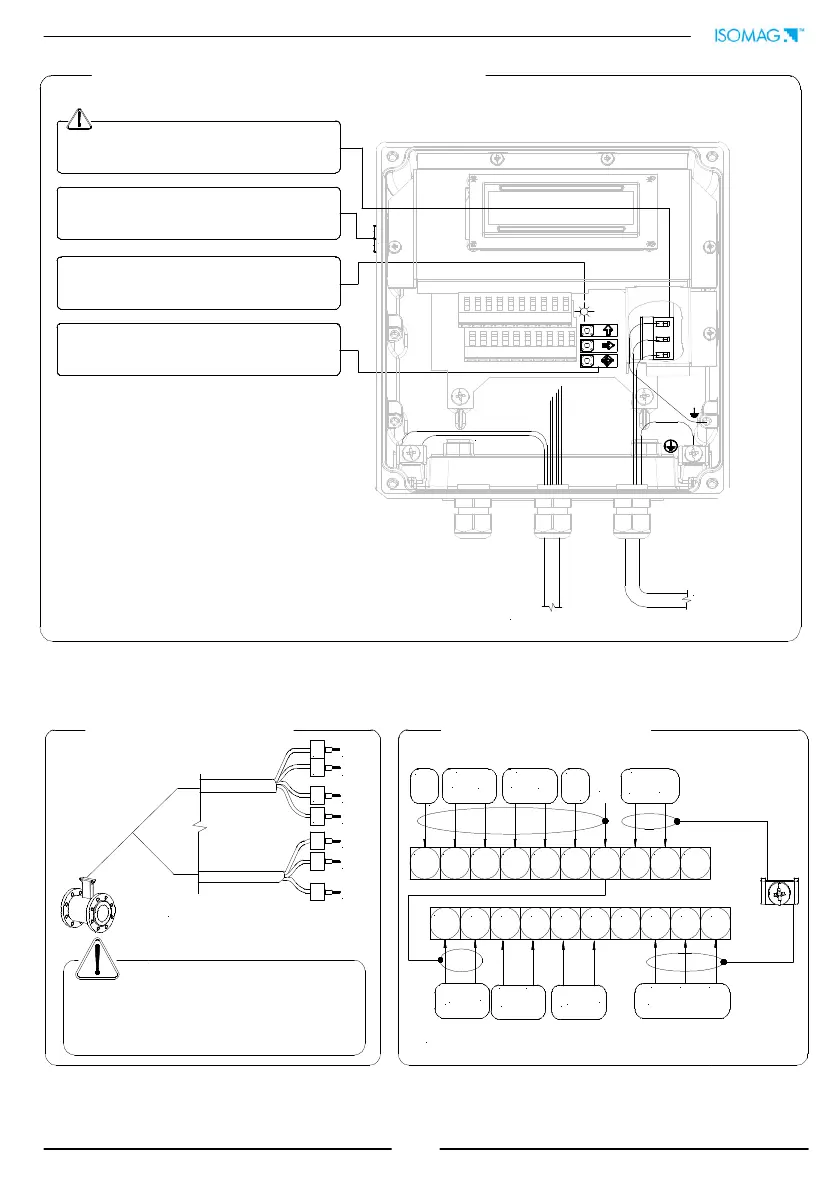

ISOMAG ML 110 - ALUMINUM CONVERTER INTERNAL VIEW; Internal Components; Aluminum Converter to Sensor Connections

10
Power supply
SENSOR cable
Shield
ALUMINUM CONVERTER INTERNAL VIEW
Signalling LED: see display flags and led warning
interpretation section
IF2 socket
Keyboard
123456789
10
11121314151617181920
-
E C
+
SH
B2
B1
OUT2
OUT1
24V
24V
COILS
E1
E2
C
4-20mA
ELECTRODES
E C
+
-
B
A
RS 485* INPUT
-
+
RS 485* : OPTIONAL, PROVIDED EXLUSIVELY BY THE MANUFACTURER
1
2
3
4
11
12
13
E1
E2
C
SH
SH
B1
B2
ALL SENSORS
SEPARATE VERSION
TERMINAL BLOCK M1
Electrodes cable sudden
movements can cause noise during
measurement
Max cable length: 20m
ALUMINUM CONVERTER TO SENSOR, ELECTRICAL CONNECTIONS
Power supply
