ISOMAG ML 110 - DIMENSIONS (ALUMINUM HOUSING); Compact Version Dimensions; Separate Version Dimensions; Aluminum Housing Torques

7

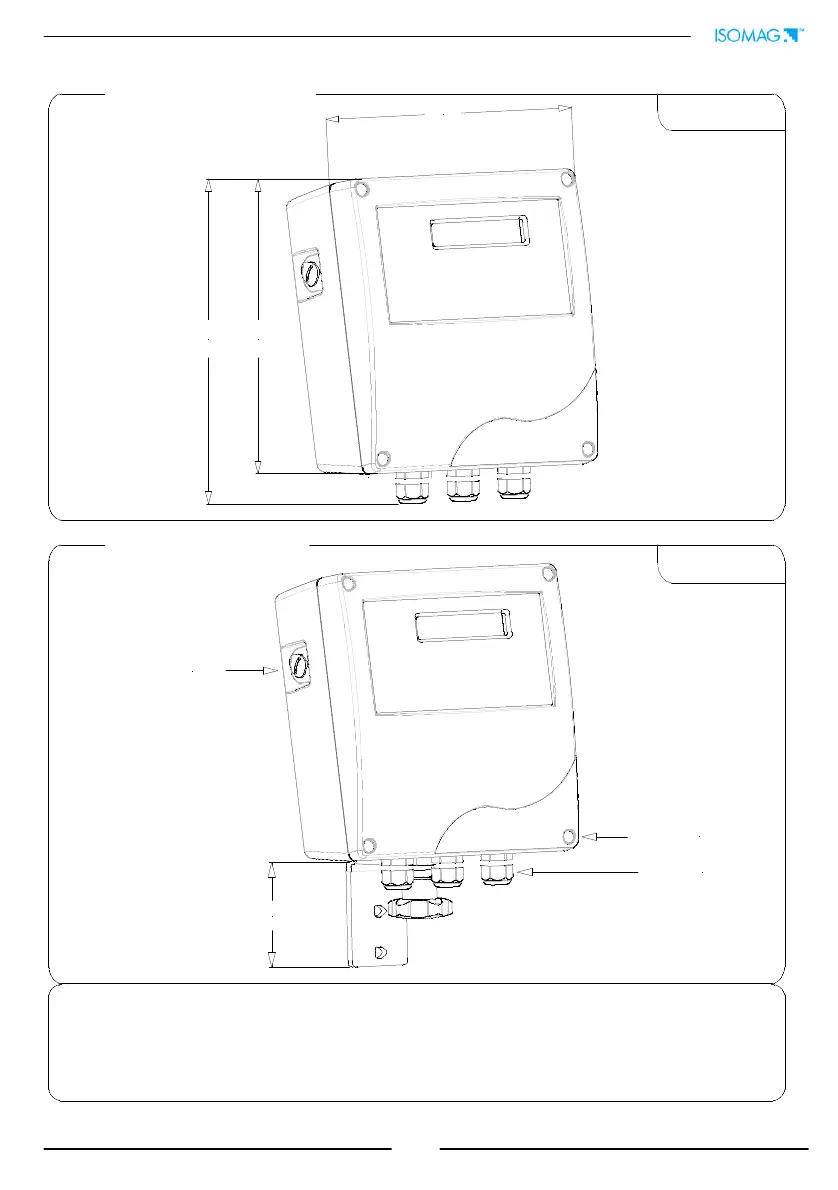

DIMENSIONS (ALUMINUM HOUSING)
COMPACT VERSION
SEPARATE VERSION
193 169
1
6
0
78
CABLE GLAND
COVER SCREW
IF2 CAP
TORQUES
To guarantee the housing’s IP degree the following torques are required:
 cover screws: 0.8Nm
 cable glands: 1.8Nm (in reference conditions)
 IF2 cap: 2Nm
Weight: 1.5kg
Weight: 2kg
