5

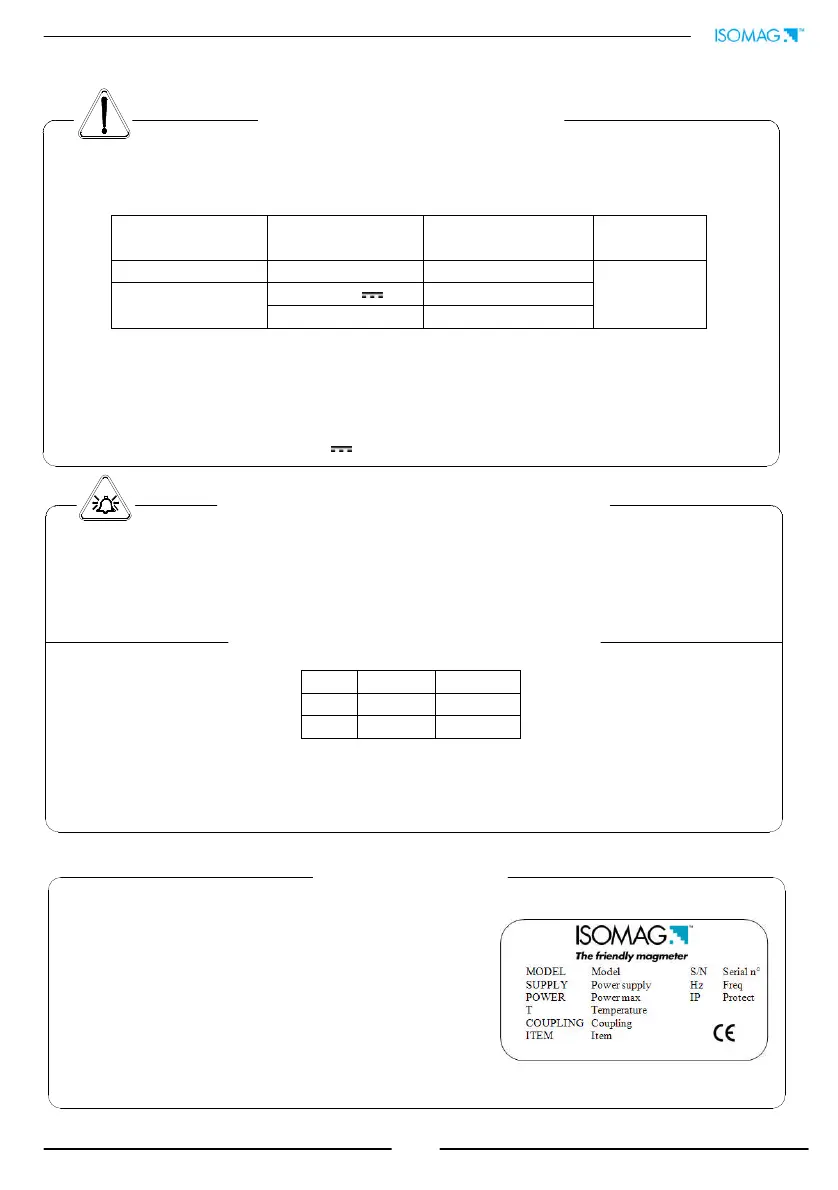

TECHNICAL CHARACTERISTICS
ENVIRONMENTAL USE CONDITIONS
The converter can be installed internally or externally
Altitude: from –200m to 2000m (from -656 to 6560 feet)
Humidity range: 0-98%, 0-85% without condensation for PA6 housing
AMBIENT TEMPERATURE
If the converter is supplied in compact version to the sensor, consider the ambient
temperatures more restrictive, otherwise refer to the respective manuals.
* For discontinuous use, a thermostat heat source installation may be necessary.
Data plate
On the data plate there is some technical information:
MODEL: Converter Model
S/N: Serial Number of the converter
SUPPLY: Main power supply
Hz: Supply frequency (AC)
POWER: Maximum power consumption
IP: Protection grade
T: Operating temperature
COUPLING: Serial number of sensor coupled
ITEM: free for user
Min. * Max
°C -10 50
°F 14 122
ELECTRIC CHARACTERISTICS
Converter classification: class I, IP65 for PA6 housing, IP67 for aluminum housing,
installation category (overvoltage) II, rated pollution degree 2.
Power supply
versions
Power supply
voltage
Power supply
frequency
Max
power
HV 100-240V~ 44-66Hz
6W
LV
18-45V //
18-45V~ 44-66Hz
Voltage variations must not exceed ±10% of the nominal one.
All instrument versions can be equipped with all power supply versions.
Input/output insulated up to 500V.
The output 4-20mA (optional) is electrically connected to the ON/OFF outputs and
the output power supply (24V ).
