ISOMAG ML 110 - ACCESSING THE TRANSMITTER FUNCTIONS AT START-UP; Example of Display Pages at Start-up; Currency Function Enable

15
Active scale
Flow rate visualization
* Direct/Reverse totalizer
visualization
Alternate visualization
* Direct totalizer
Reverse totalizer
Currency value
Alarm description
Sampling frequency
* Direct Reverse totalizer
Flow speed
Flow rate visualization Flow rate visualization
Push keypad button
indicated to move
between pages
Push keypad button
indicated to move
between pages
Push keypad button
indicated to move
between pages
ACCESSING THE TRANSMITTER FUNCTIONS AT START-UP (Power On)

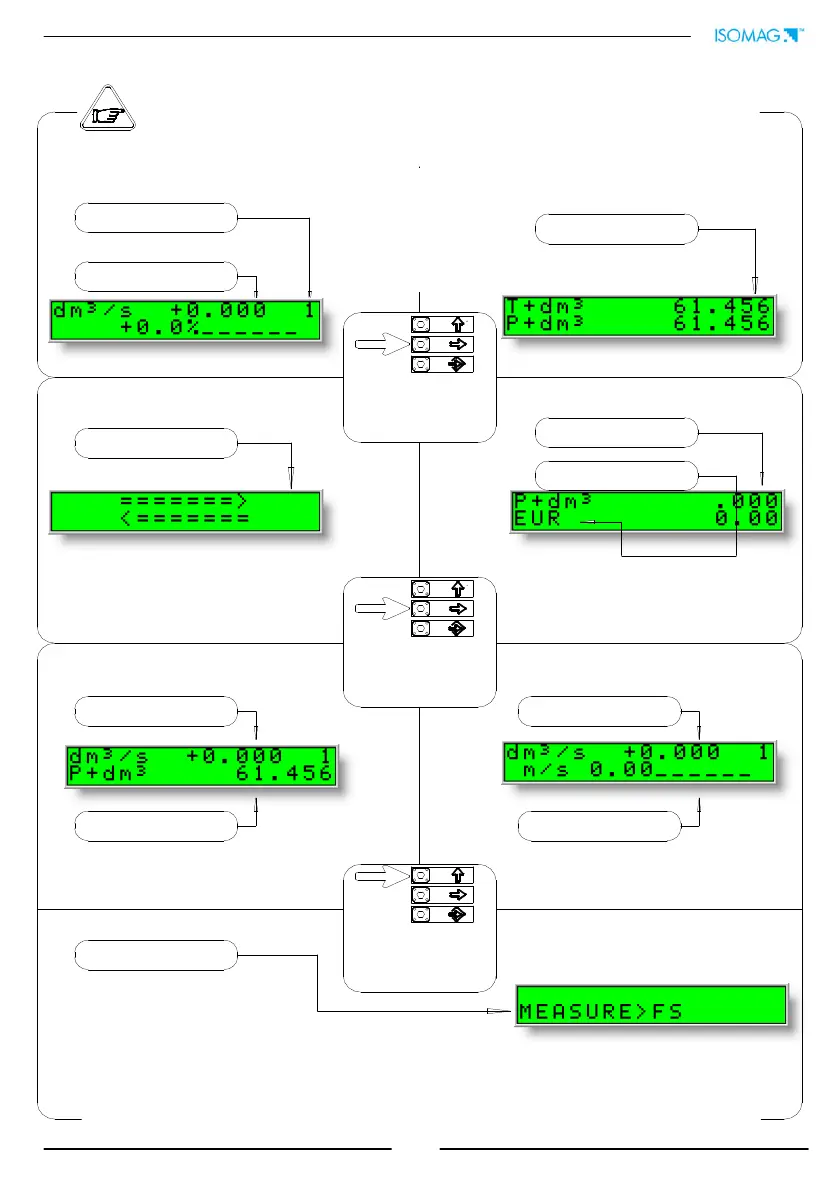

Example of visualized display pages at start-up
The direct exposure of the
transmitter
to the solar rays, could damage the
liquid crystal display.
CURRENCY FUNCTION ENABLE
* The maximum digits shown by the totalizer is 999.999.999 regardless of the number of user selected
decimals (see Pos 2.3). Beyond this value the totalizers are set to zero.
Note: The user will see the
screen displayed (left) at
power on of the transmitter.
Use the keys on the keypad as
indicated centrally on this
page to move between the
screens shown (not all
shown).
