ISOMAG ML 110 - PA6 CONVERTER INTERNAL VIEW; Internal Components; PA6 Converter to Sensor Connections

9

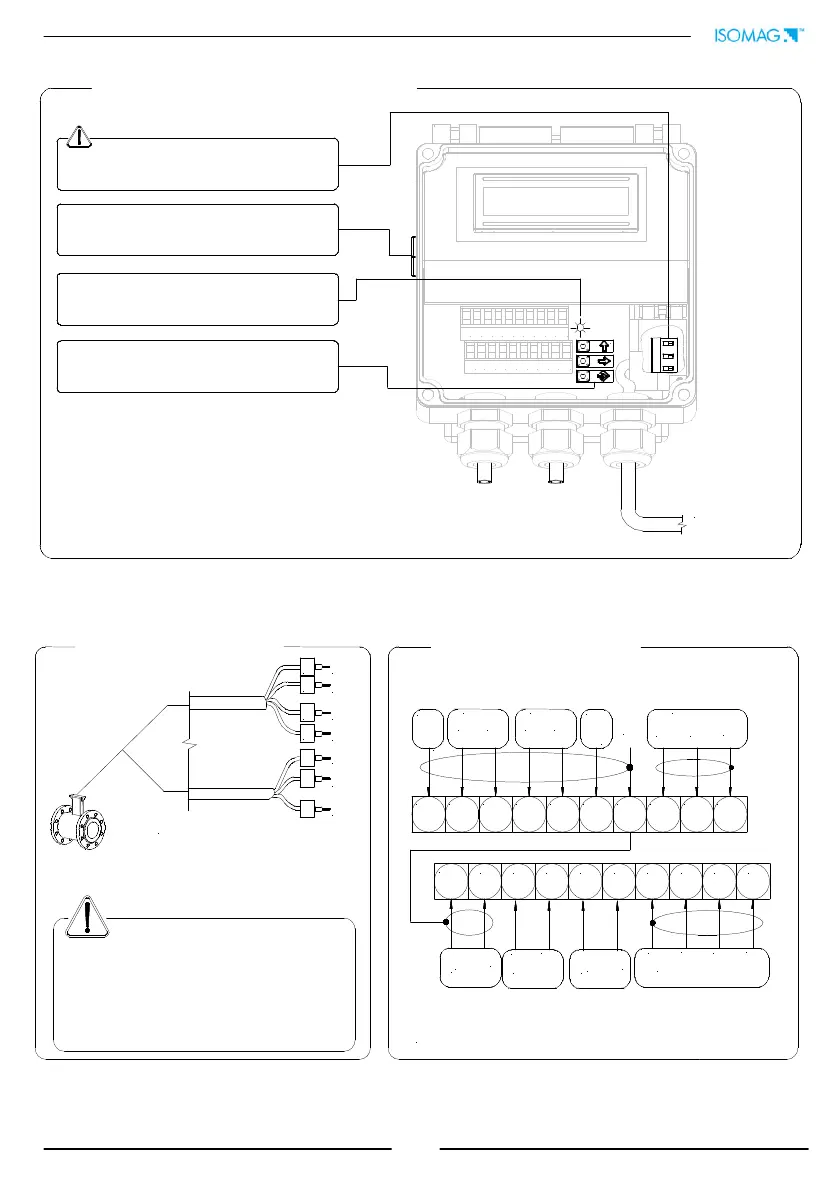

PA6 CONVERTER INTERNAL VIEW
PA6 CONVERTER TO SENSOR ELECTRICAL CONNECTIONS
Power supply
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
IF2 socket
Power supply
Keyboard
RS 485* : OPTIONAL, PROVIDED EXLUSIVELY BY THE MANUFACTURER
1
2
3
4
11
12
13
E1
E2
C
SH
SH
B1
B2
ALL SENSORS
123456789
10
11121314151617181920
-
E
C
+
SH
OUT2
OUT1
24V
24V
E1
E2
C
4-20mA
ELECTRODES
E
C
+
-
B
A
RS 485* INPUT
-
+
SH
B2
B1
SH
COILS
SEPARATE VERSION
TERMINAL BLOCK
Electrodes cable sudden
movements can cause noise
during measurement
Max cable length: 20m
Signalling LED: see display flags and led warning
interpretation section
