ISOMAG ML 110 - FILTER SETTINGS DIAGRAMS; Filter Response Diagrams

28
10
20
30
40
50
60
0
0 2 4 6 8 10 12 14 16 18 20 22
MFSLN: 0,0s
MFFLN: 0,0s
FLOW RATE MEASURE
FILTERS
>>>>
>>>>
10
20
30
40
50
60
0
0 2 4 6 8 10 12 14 16 18 20 22
10
20
30
40
50
60
0
0 2 4 6 8 10 12 14 16 18 20 22
1,0sec.
1,0sec.
1,0sec.
1,0sec.
1,0sec.
5,0sec.
IN
OUT
MFSLN: 5,0s
MFFLN: 1,0s
FLOW RATE MEASURE
FILTERS
>>>>
>>>>
IN
OUT
MFSLN: 5,0s
MFFLN: 0,0s
FLOW RATE MEASURE
FILTERS
>>>>
>>>>
IN
OUT
FLOW RATE (%)
TIME (Sec)
TIME (Sec)
FLOW RATE (%)
TIME (Sec)
FLOW RATE (%)

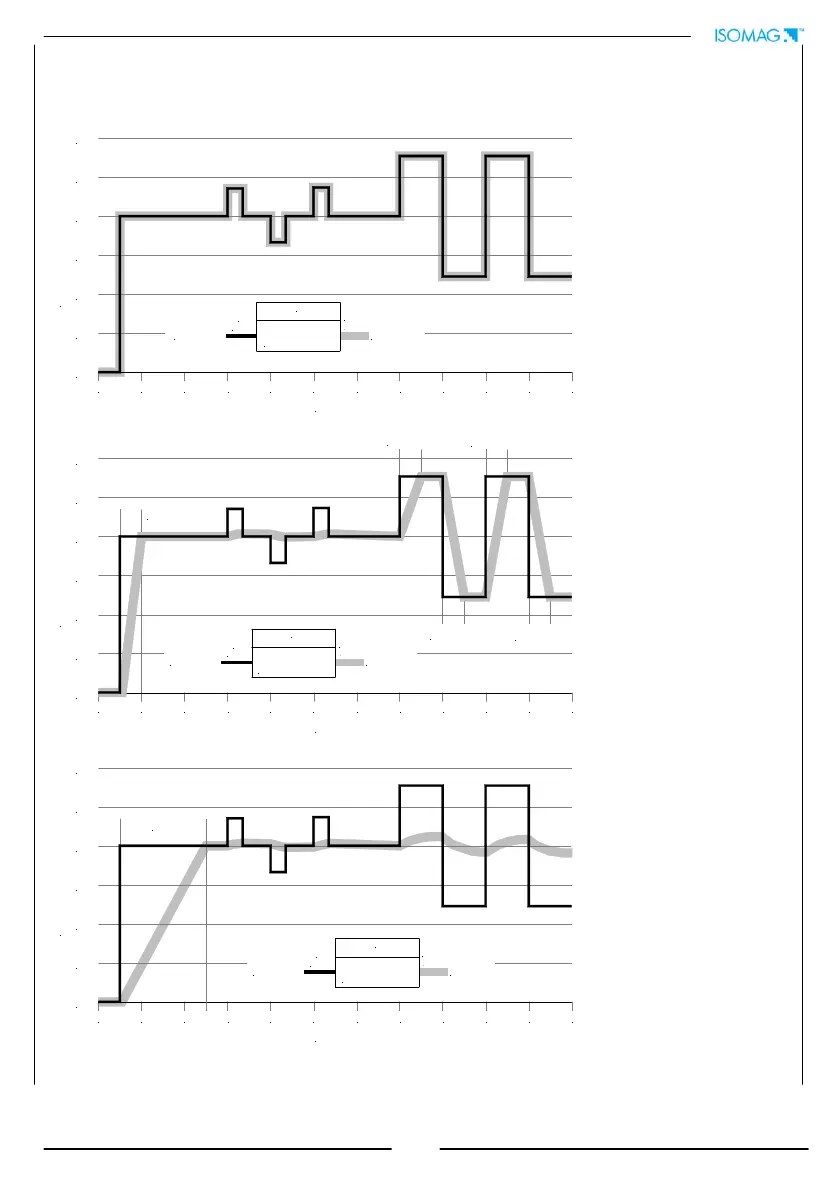

The following diagrams show the response of the instrument for a flow rate variation from 0 to
100% of full scale set using different settings of filters.
Both filters to zero
(batching setup): the
measure quickly
follows the flow rate
behaviour
Both filters are used
(Smart mode): prompt
reaction to quick flow
variation (based on
the MFFLN value);
smoothing the
measure result to slow
flow variations (based
on MFSLN value)
Only M. filter (MFSLN)
is used (regulation
and flow measure
setup): smoothing the
measure result (based
on MFSLN value) in
reaction to quick and
slow flow variation
(MFFLN does not
work).
