ITech IT-M3140 Series User Manual

Functions and Features
Analog Conversion Relationship Introduction
When the analog quantity control function of this series of instrument is used,
the user needs to set the conversion relationship of the analog quantity ex-
pected value based on requirements. The analog quantity values in each chan-
nel all follow the calculation relationship of y=Mx+b. The user needs to set the
Mx (slope coefficient) and Mb (offset) values in different channels in the analog
quantity menu. For calculation of the analog quantity value. The user can calcu-
late the M and b values based on the analog requirements in accordance with
the formula below.

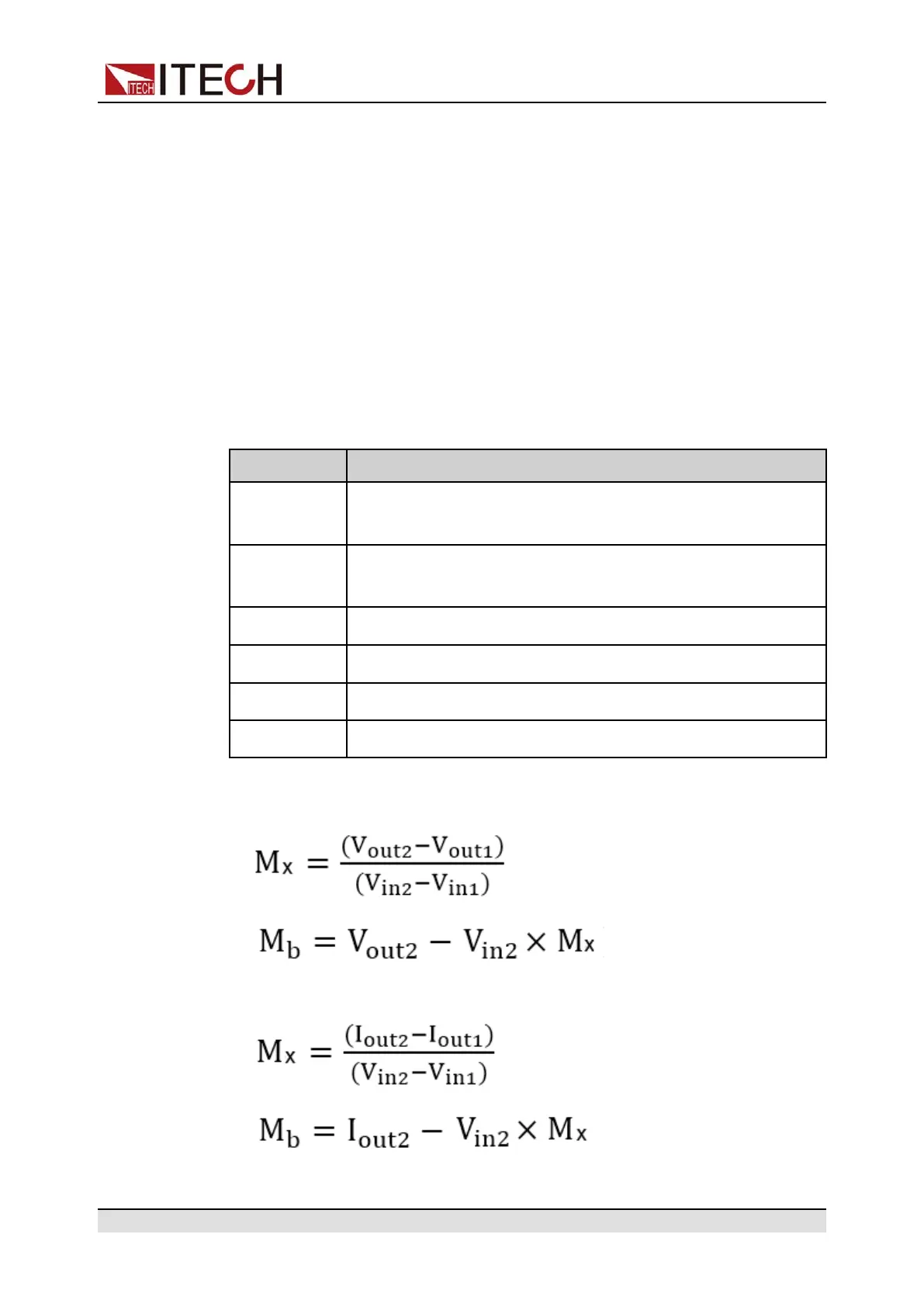

The user needs to convert the values of Mx and Mb according to the following
formulas, and then set the two values through the front panel keys or SCPI re-
mote commands.
Name Description
V
in1
Indicates the minimum voltage input to pin 8. The setting
range is from 0 to 10.
V
in2
Indicates the maximum voltage input to pin 8. The setting
range is from 0 to 10, and V
in2
>V
in1
.
V
out1
The minimum value of the output voltage.
V
out2
The maximum value of the output voltage, and V
out2
>V
out1
.
I
out1
The minimum value of the output current.
I
out2
The maximum value of the output current, and I
out2
>I
out1
.
• Vset
• Iset
Copyright © Itech Electronic Co., Ltd.
64
