Keys
Description
[Shift]+ [2] (Lock)
Turn the keyboard lock or unlock.
[Shift]+[3] (Local)
Switch remote control mode to local
control mode.
[Shift]+[4] (Save)
Save the common parameter settings.
[Shift]+ [5] (Recall)
Recall the common paremeter settings.
[Shift]+ [6] (Hold)
When you need to keep the present
meter status, you can press the keys.
Then the present meter status display
and will be kept no matter whether input
is running.
[Shift]+ [7] (Help)
Obtain the help information.
2.5 Push-on Knob

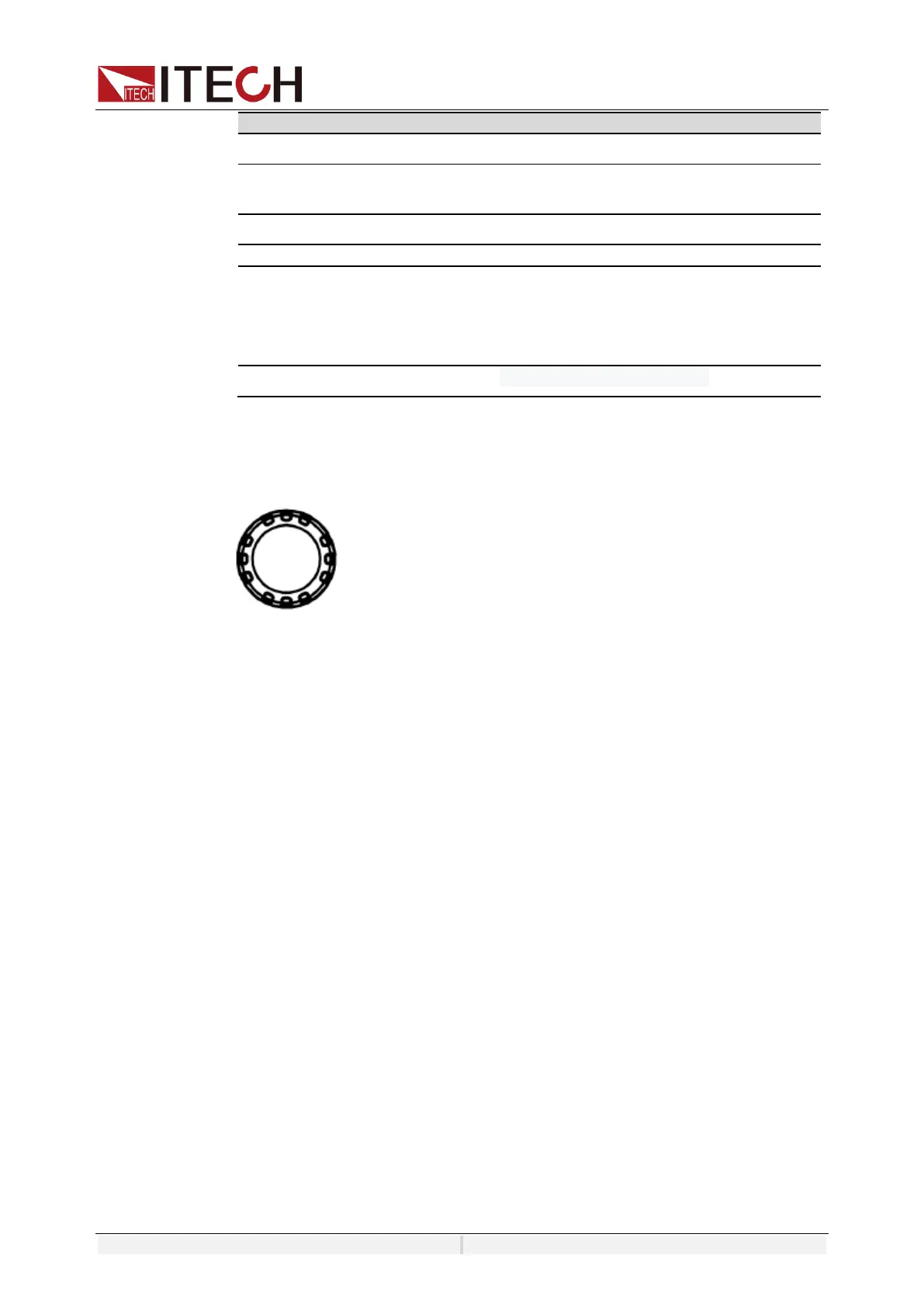

The IT8200 series provides a knob on the front panel as shown in the next figure.
The functions of the posh-on knob is described as follows.
⚫ Adjust the value setting
⚫ Select menu item
⚫ Confirm the set value or the selected menu item
Adjust the Value Setting
In the value setting interface, rotate the knob clockwise to increase the set value
and anticlockwise to decrease the set value.
Select Menu Item
The knob can also be used to view menu items. In the menu item display
interface, turning the knob clockwise indicates that the next menu item is
selected, and turning the knob anticlockwise indicates that the previous menu
item is selected.
Confirm settings
After completing the value setting or selecting a menu item, pushing the knob
acts like pressing [Enter] key to confirm the operation.
2.6 Rear Panel
The rear panel of the IT8200 series 3U model is shown below.
