Power Switch Introduction
User can adjust the power switch directly to turn on or turn off the instrument.

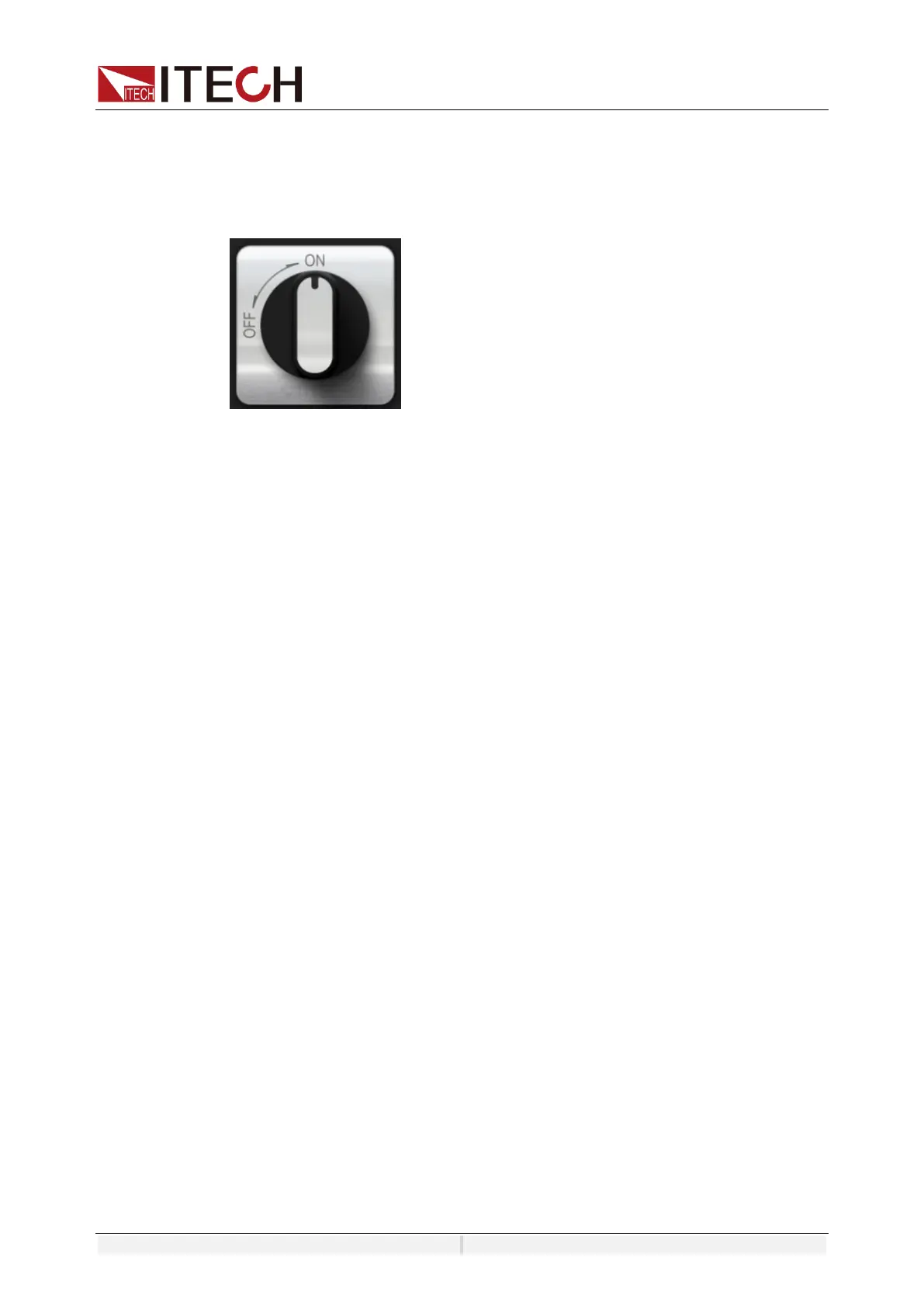

The status of Power switch is as follow.
The switching knob of the IT8200 series instrument allows the user to turn the
power on by 90° clockwise or to turn the power off by 90° anticlockwise.
Turning the POWER Switch On
Check that the power cord is connected properly.
Flip the POWER switch to the ( ON ) side to turn the instrument on. The front
panel display will light up after a few seconds. It may take about 30 seconds or
so for the load to initialize before it is ready for use.
If a self-test error occurs, an error message will be displayed in the front panel.
Press the [Esc] button to try to clear the present fault status. The user can also
restart the instrument to try to clear the fault status. Wait until the power is turned
off and then start again. If the problem still cannot be solved after restarting,
please contact the ITECH engineer.
Turning the POWER Switch Off
Flip the POWER switch to the ( OFF ) side to turn the instrument off. When it is
turned off, the instrument interface will prompt power down, and the instrument
will store the setting information before shutdown.
After you turn the POWER switch off, wait at least 10 seconds after the fan stops
before you turn the POWER switch back on. Turning the instrument on too soon
after you turn it off can cause damage to the inrush current limiter circuit, as well
as reduce the life of components such as the POWER switch and the internal
input fuses.
4.2 Home-Screen Overview
IT8200 series instrument adopts touch screen design, the users can easily
operation by touch screen.
It can work in either single-phase mode or three-phase mode. The working mode
can be set in the system menu. The display interface of the instrument is
different under different modes.
