Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 15
Proprietary and Confidential

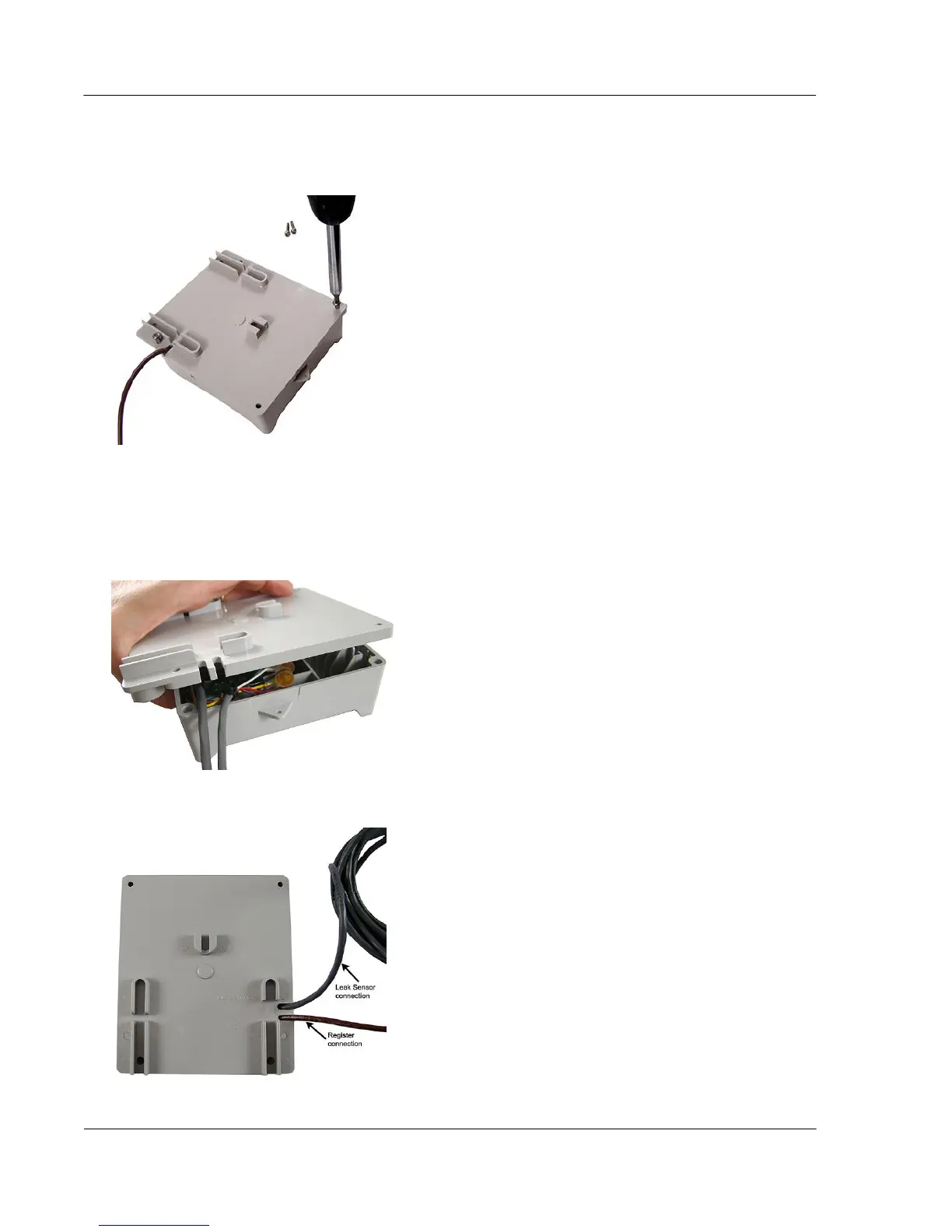

3. Insert a backplate mounting screw in one corner and tighten two to three turns. Insert the remaining three
screws, tightening a few turns.
4. Completely tighten all the screws in an alternating fashion.
To attach an encoder/pulser and leak sensor backplate
1. Route the register cable and Leak Sensor cable through the dual-port backplate. Ensure the cable strain
reliefs are inside the module housing and backplate assembly.
2. Route the register cable through the appropriate backplate cutout and the Leak Sensor cable through the
remaining cutout.

ITRON 100W-R Specifications

General

Brand	ITRON
Model	100W-R
Category	Control Unit
Language	English
