Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 23
Proprietary and Confidential
Required Equipment
LDS with bracket; 5-foot cable, and mounting bolt (fits up to 1-1/2-
inch OD pipe).
Optional mounting bracket
Mounting bolt fits up to 2-1/2-inch OD pipe.
100W-R with Leak Sensor, 10-inch flying lead.
100WP-R with Leak Sensor, 10-inch flying lead.

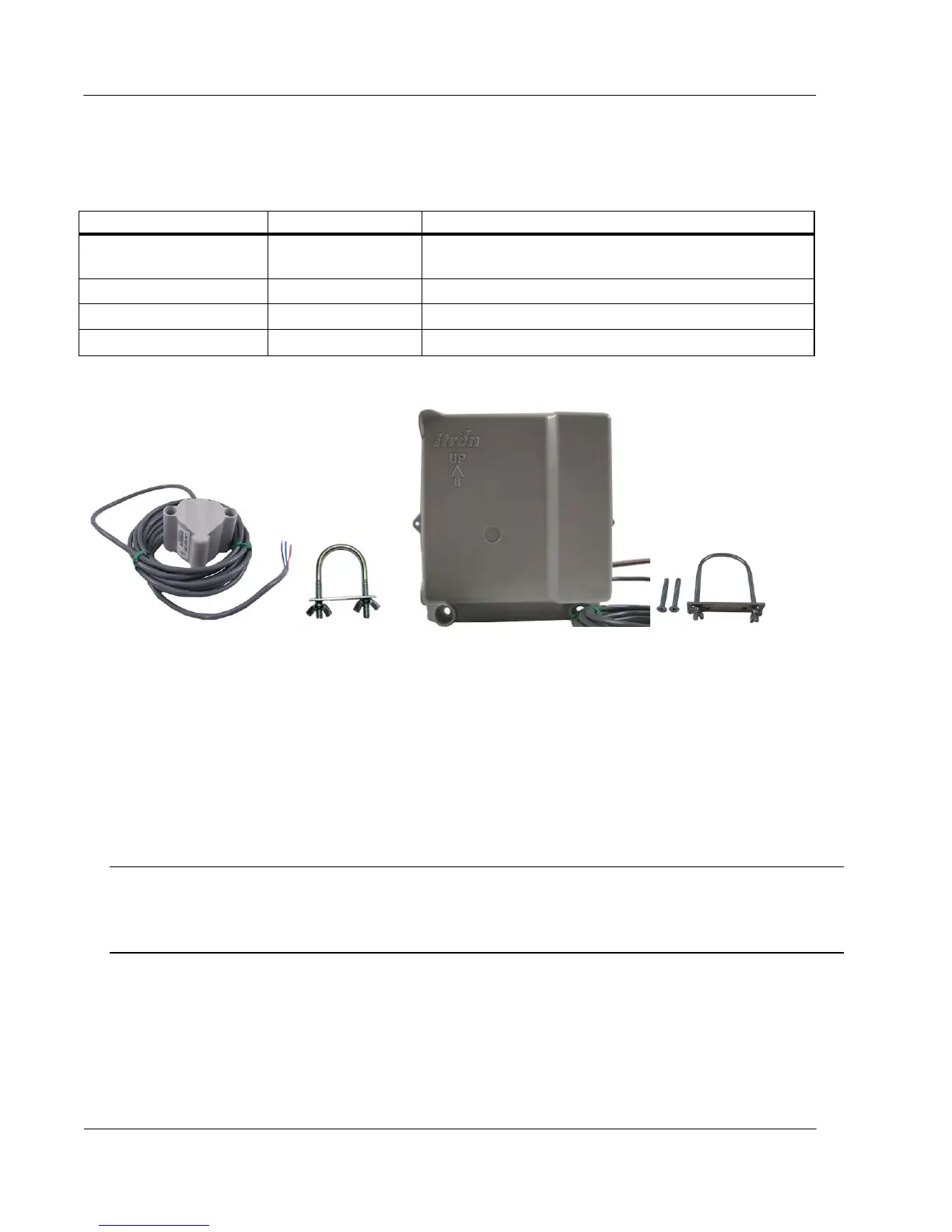

Leak Sensor Standard mounting 100W remote ERT module Optional mounting
bracket bracket
Pipe Preparation
Clean any dust or dirt from the pipe to facilitate direct contact with the LS surface.
To install the Leak Sensor on a pipe or meter insetter
1. Select a Leak Sensor mounting location. Mount the sensor on the water input side of the meter.
Caution The Leak Sensor must be mounted on the water input side of the meter. Failure to follow this
mounting requirement could result in errors in the leak detection data. Installation requires Itron mounting
hardware. Repair costs and service charges relating to the use on non-compliant mounting hardware will
be charged to the customer. Contract Itron Support for more information.
