Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 16
Proprietary and Confidential

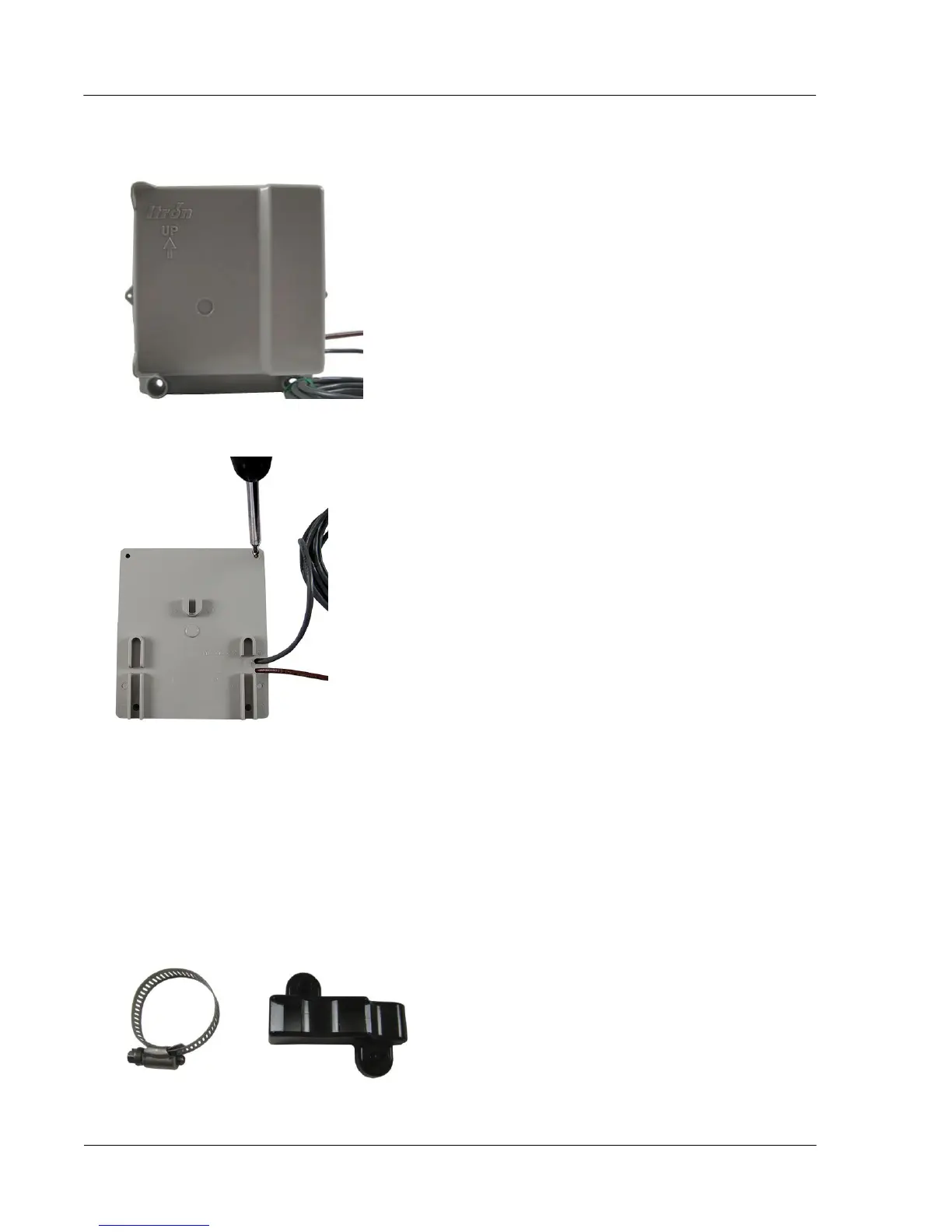

3. Align the ERT module backplate with the mounting screw holes. Verify the Itron logo and arrow point up.
4. Insert a backplate mounting screw in one corner and tighten two to three turns. Insert the remaining three
screws, tightening a few turns.
5. Completely tighten all screws evenly, in an alternating fashion.
Pipe Mount Installation
The ERT module can mount on a pipe vertically, diagonally, or horizontally using a Pipe Mounting Kit and
Remote Mount Kit (see 100W-R and 100WP-R Accessories on page 11).
To mount the adapter plate on a vertical pipe
1. Take the pipe bracket and band clamp from the Pipe Mount Kit.
