Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 17
Proprietary and Confidential

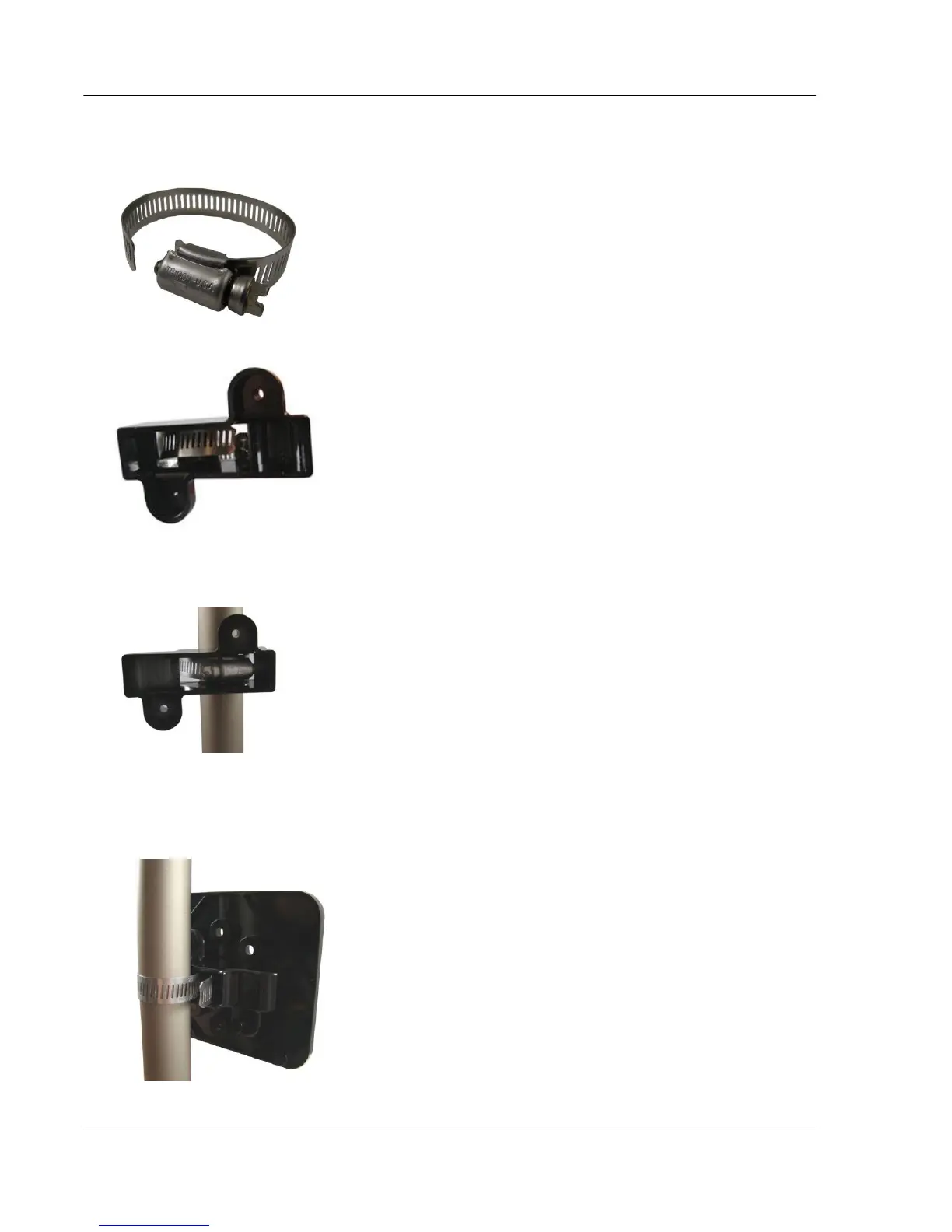

2. Loosen the clamp screw until the end of the band releases.
3. Push the end of the band through the hole in the pipe bracket.
4. Place the band clamp around the pipe. Push the end of the band through the hole in the band clamp and
into the entrance to the screw assembly. Tighten the band clamp until you can push the end of the band
into the hole in the pipe bracket.
5. Tighten the clamp screw three or four more turns to make sure the end of the band does not pop back out
on this side of the pipe bracket. Verify the pipe clamp is in the final installation position on the pipe and
completely tighten the band clamp screw.
6. Place the adapter plate on the pipe bracket. The adapter-plate screw boss goes into the pipe-bracket recess.
