Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 28
Proprietary and Confidential

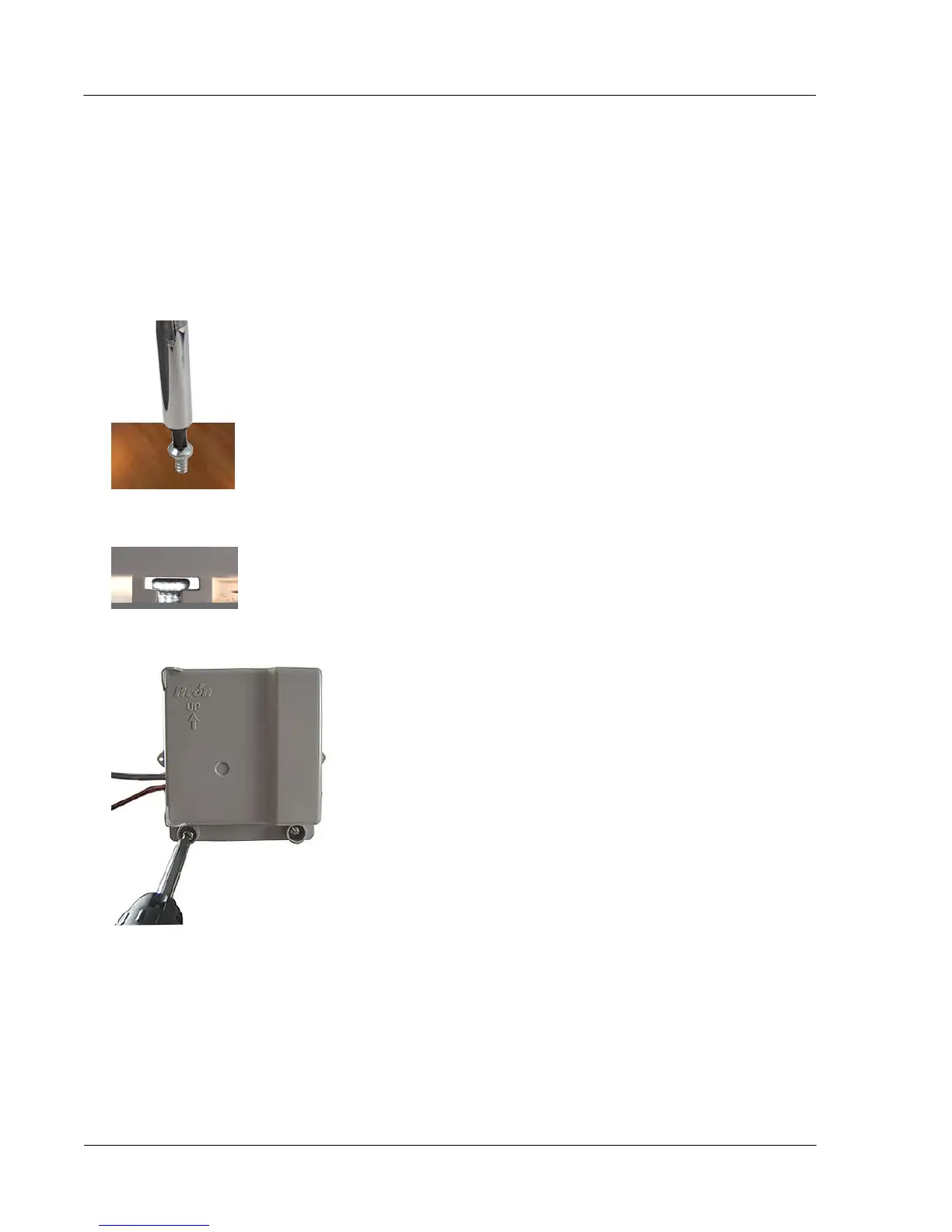

To install on a flat surface
1. Select an installation location.
2. Using a back plate template, drill three pilot holes into the wall or other surface. The two bottom holes
should be level.
3. Screw a mounting screw for the lug slot into the surface, leaving approximately 1/8-inch of the screw
protruding. The lug slot should slide over the screw with a tight fit.
4. Slide the ERT lug slot onto the mounting screw, pushing the ERT module upward until the screw head is
all the way into the slot.
5. Screw the ERT module to the wall using the remaining two mounting screws.
