ITRON 100W-R - Appendix A Using Gel-cap Connectors

TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 37
Proprietary and Confidential
This section describes connecting the 100W-R and 100WP-R ERT modules to the water meter register using
gel cap connectors.

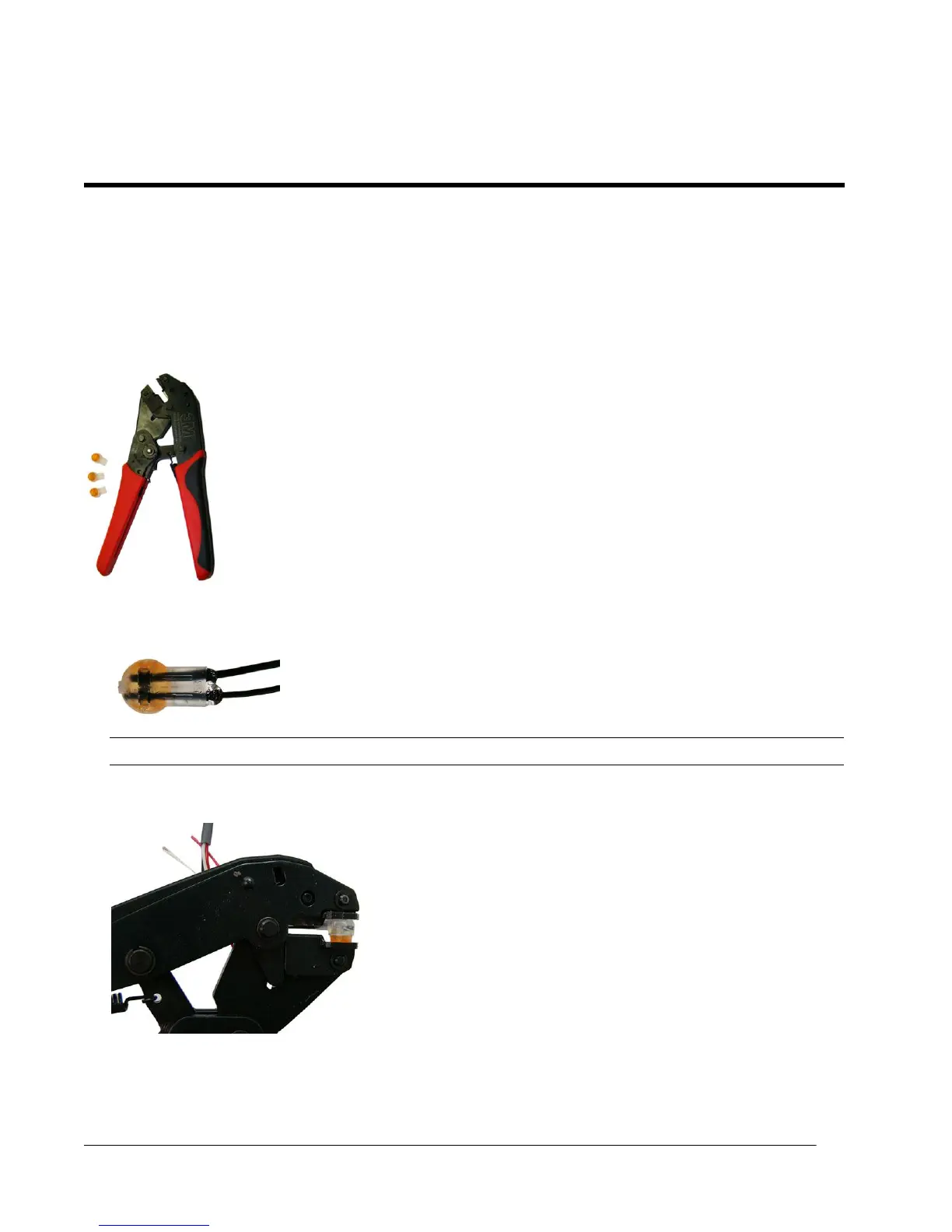

Required Materials
 E-9R 3M® gel cap crimping tool
 Gel cap connectors
1. Push two wires as far as possible into the connector.
Caution Do not strip insulation from the ends of the wires before inserting them into the connector.
2. Carefully place the connector and wires into the jaws of the crimping tool. Make sure the wires remain
fully inserted in the gel-cap connector.
A P P E N D I X A
Using Gel-cap Connectors
