ITRON ERT 40W - Securing ERT Module to Register

Installing 40W and 50W ERT Modules
01541
01558x
01542

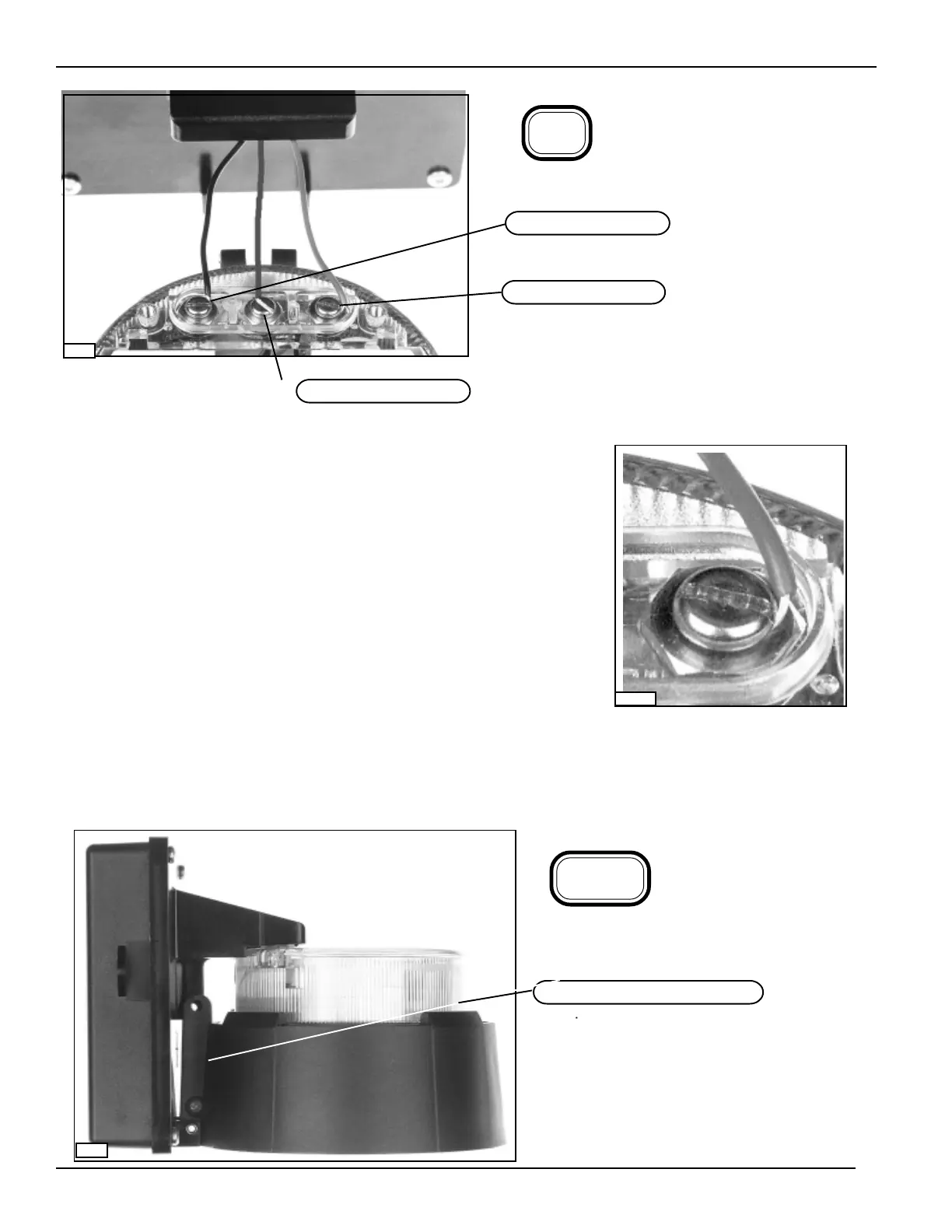

Install the black wire under this
register screw head. Tighten the
screw fully.
Install the green wire under this register screw head.
Tighten the screw fully.
Install the red wire under this
register screw head. Tighten the
screw fully.
IMPORTANT
Be sure to install the wires around the
screws in a clockwise direction, as
shown. If you don't, the wires may par-
tially or completely come out from under
the screw heads as you tighten them.
Also, make sure no insulation is com-
pressed under the screw head, or the
wire might not make good contact.
Install the ERT module and mounting
bracket on the
meter register adapter collar.
