Installing 40W and 50W ERT Modules
5-4
5-5

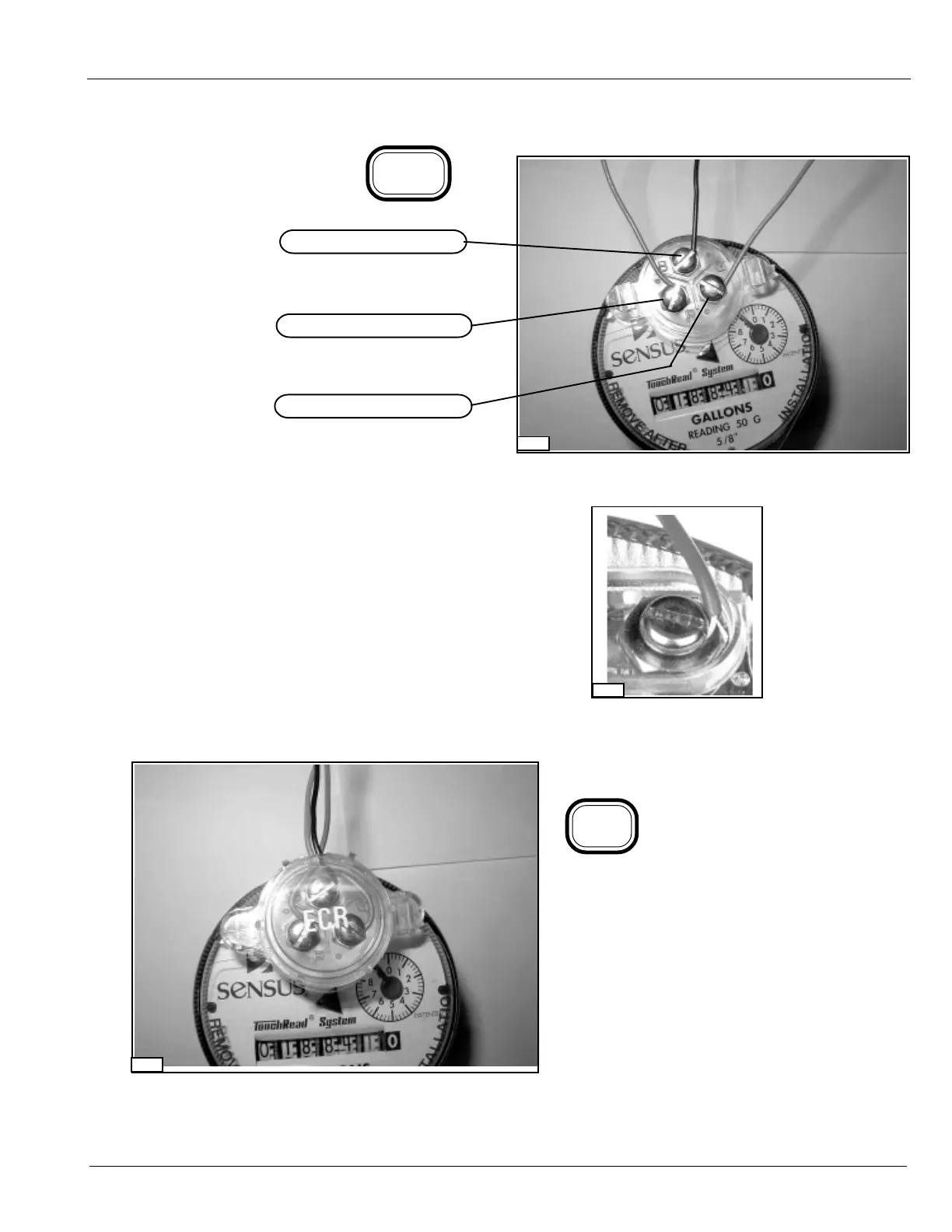

Install the black wire from the ERT under the
register screw head marked "B"
on the top of the register. Tighten the screw fully.
Install the red wire under the register
screw head marked "R"
on the top of the register. Tighten the screw fully.
Install the green wire under the register
screw head marked "G"
on the top of the register. Tighten the screw fully.
01558x
To reinstall the cable bracket on the
meter register, place it over the
wires, push down and turn clock-
wise until it lines up as shown.
01549x
01548x
IMPORTANT
Be sure to install the wires around the screws in a
clockwise direction, as shown. If you don't, the
wires may partially or completely come out from
under the screw heads as you tighten them. Also,
make sure no insulation is compressed under the
screw head, or the wire might not make good
contact.
5-2
